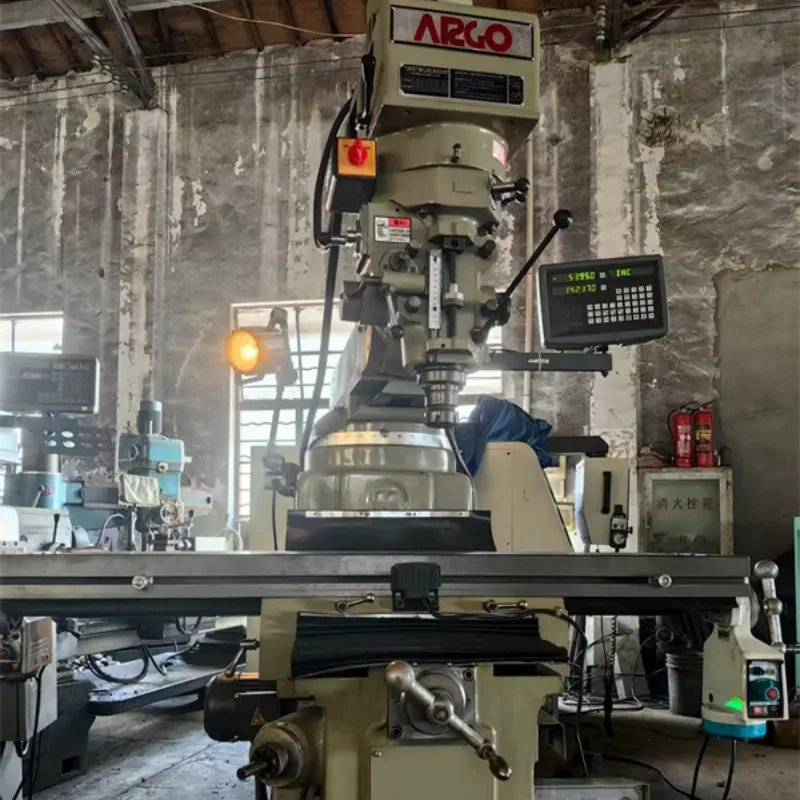

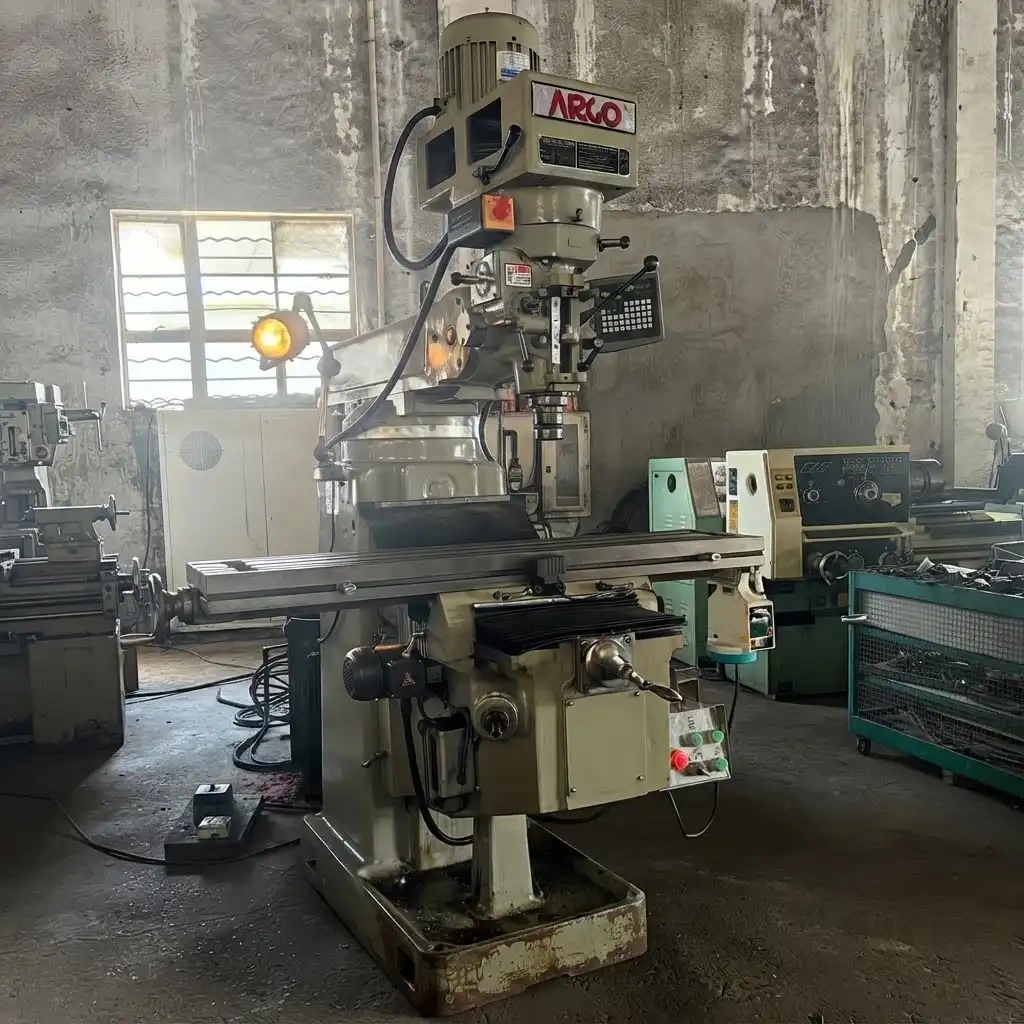

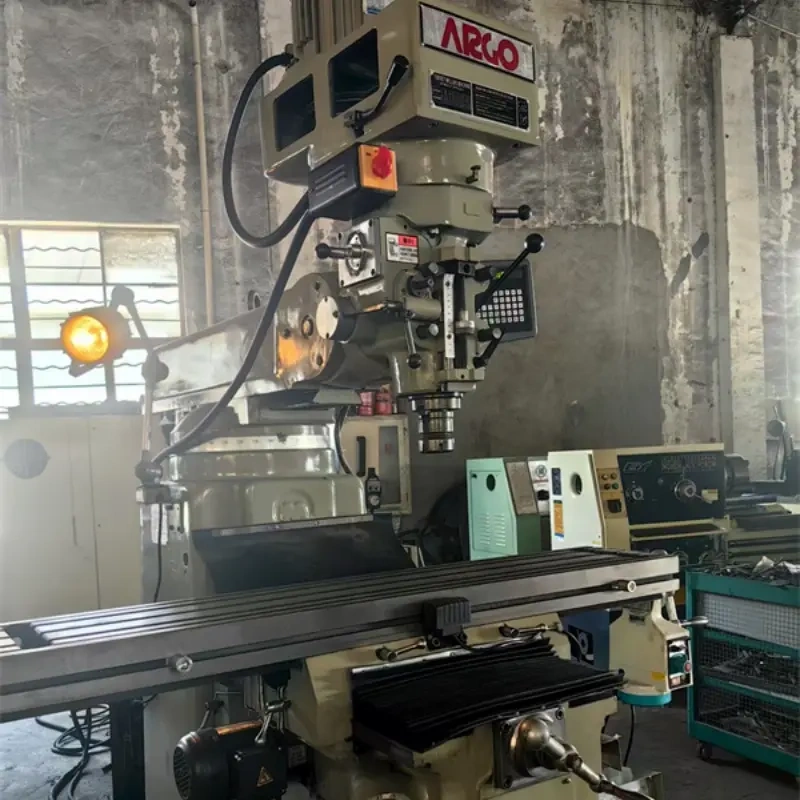

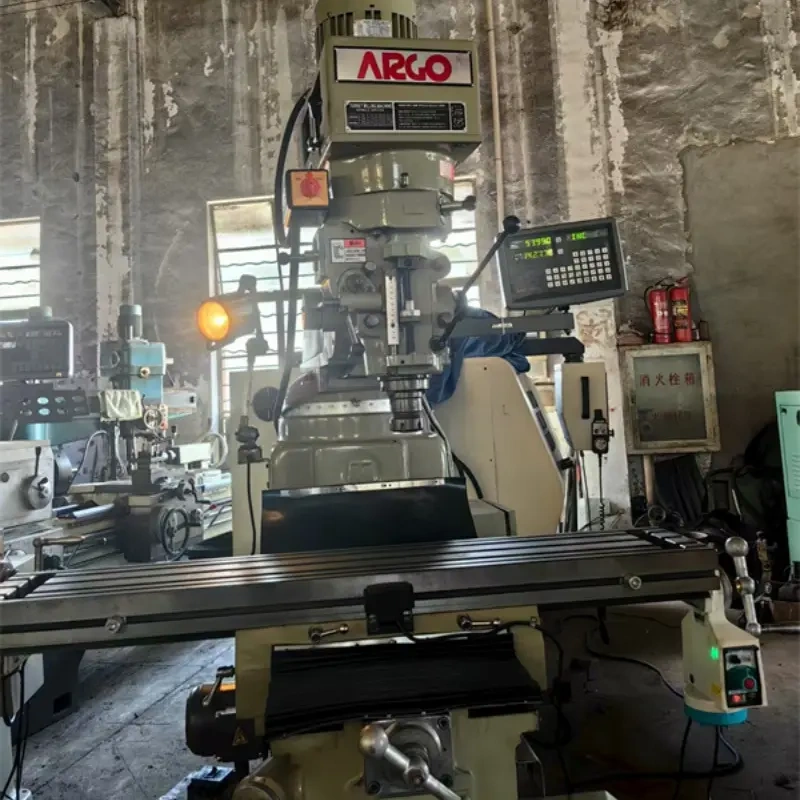

Used M4 Turret Milling Machine
1. Model：Used M4 vertical turret milling machine
2. Application：for mold, hardware and metal parts milling processing
3. Condition：All functions fully inspected and test‑run, good working condition
4. Advantages：Multi-angle rotary turret head, heavy cast iron frame, stable cutting performance, spare parts easy to source globally
5. Purchase Value：Cost-effective second-hand milling equipment, ready for shipment. Contact us for machine running video
The M4 vertical turret milling machine is a universal ram turret mill. It is widely used for processing planes, grooves, inclined surfaces and formed surfaces on molds, hardware and various metal workpieces, favored by machinery workshop and maintenance factory.
Key Features
- Multi-angle rotatable turret milling head for flexible angular machining
- Heavy-duty cast iron body ensuring high rigidity and stable cutting
- Wide spindle speed range to machine steel, cast iron and aluminum alloy
- Simple manual operation, low failure rate and convenient maintenance
- Standard popular model, spare parts easily obtained worldwide
Machine Condition
This is used equipment, fully inspected, cleaned and test‑run before shipment. All mechanical and functional parts work normally. We support video checking before loading.
Main Technical Parameters
| Category | Item | Specification |
|---|---|---|
| Worktable | Table size | 1270 × 254 mm |
| X/Y/Z Travel | 800 / 420 / 450 mm | |
| Spindle | Spindle taper | R8 |
| Spindle travel | 127 mm | |
| Spindle speed | 65‑4540 rpm,16 speeds | |
| Head swivel angle | ±90° left‑right, ±45° front‑back | |
| Power | Main motor | 2.2 kW |
| Weight & Size | Net weight | 1200 kg |
| Overall dimension(L×W×H) | 1700 × 1680 × 2150 mm | |
| Status | Working condition | Used, fully tested |
