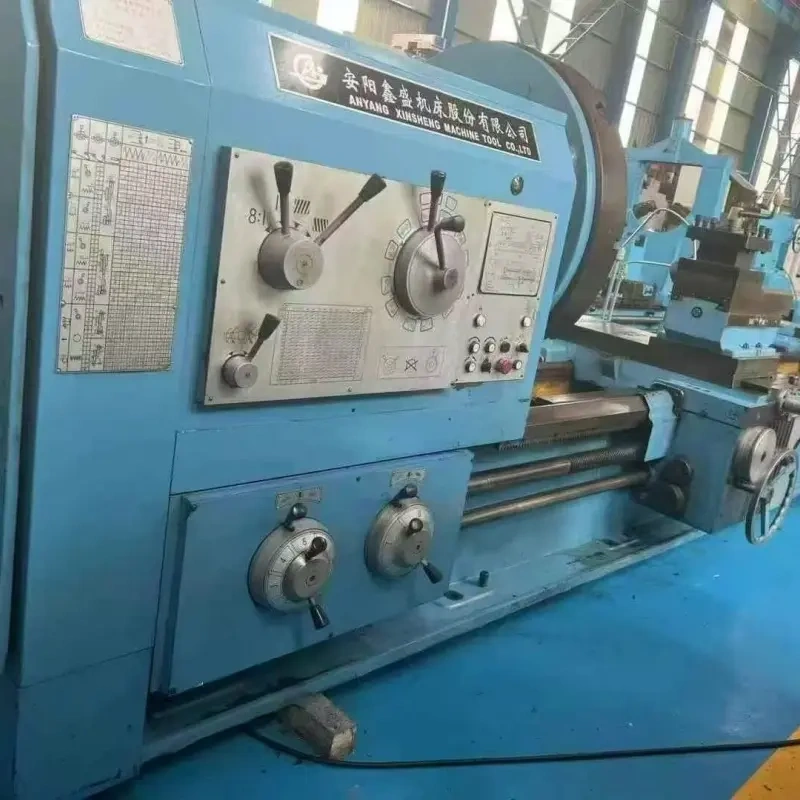

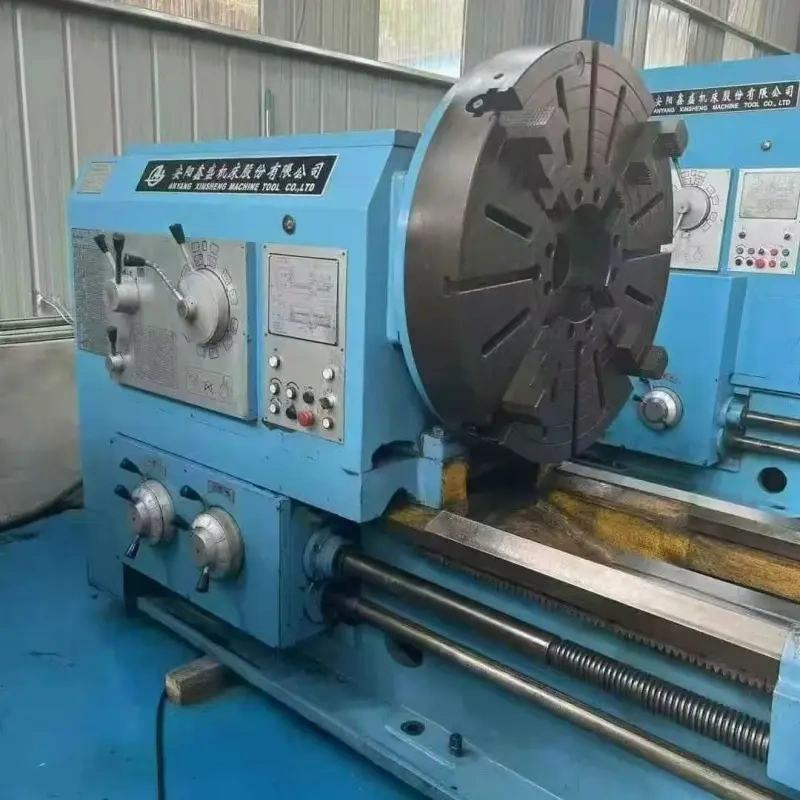

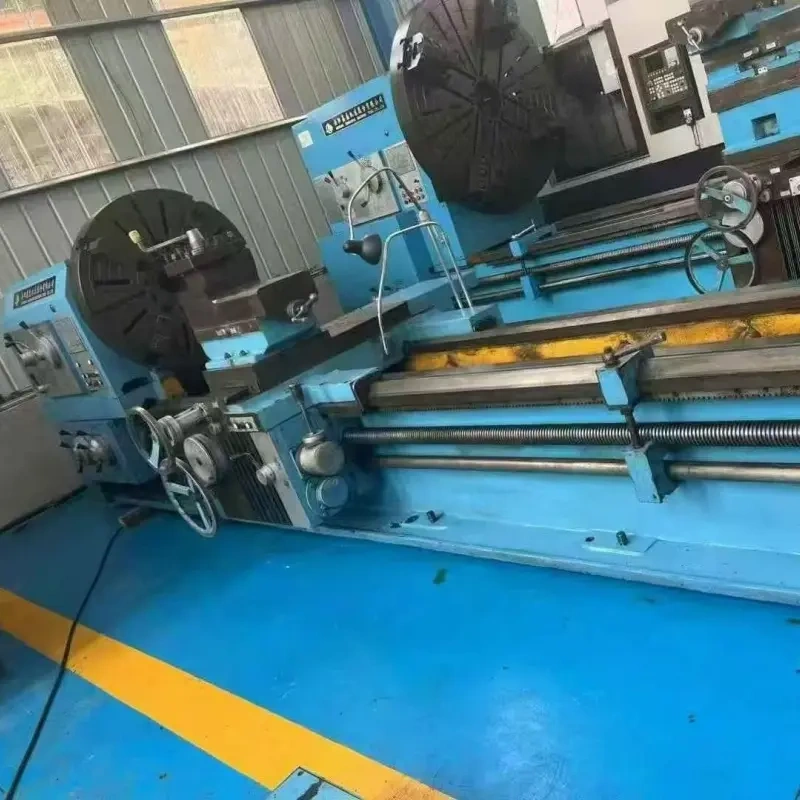

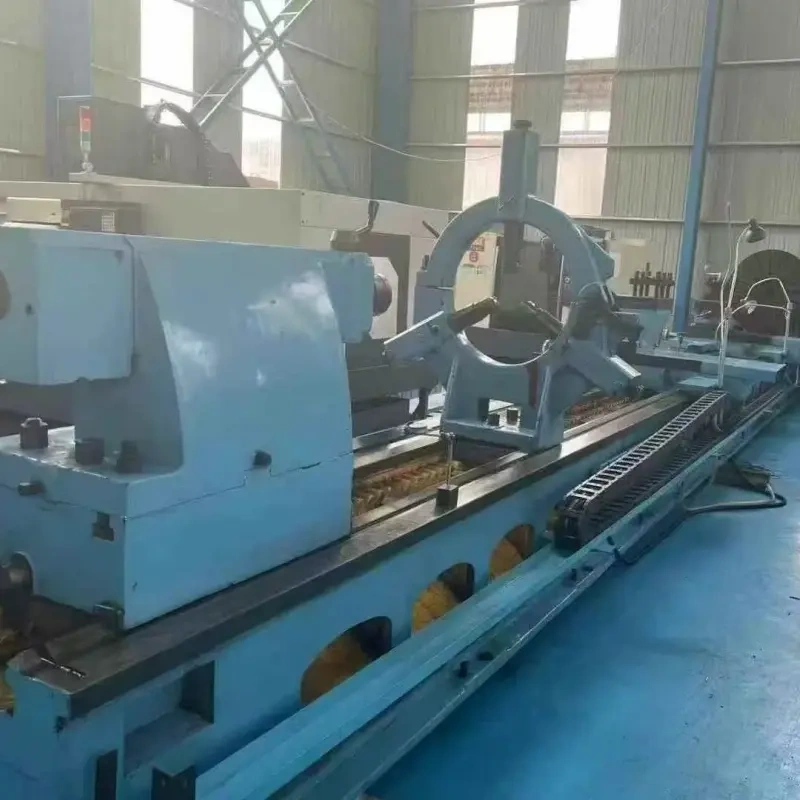

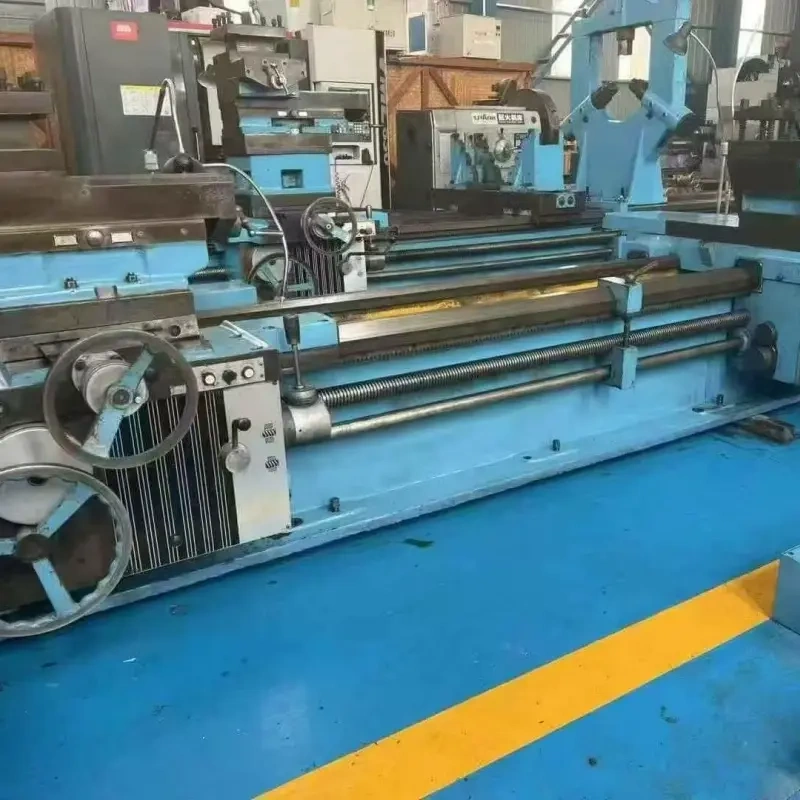

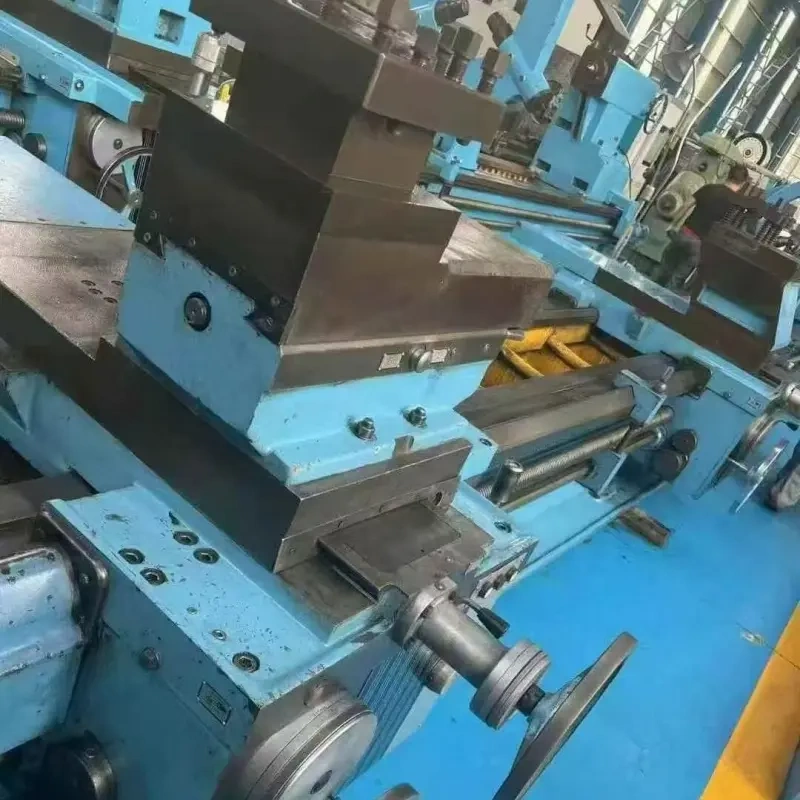

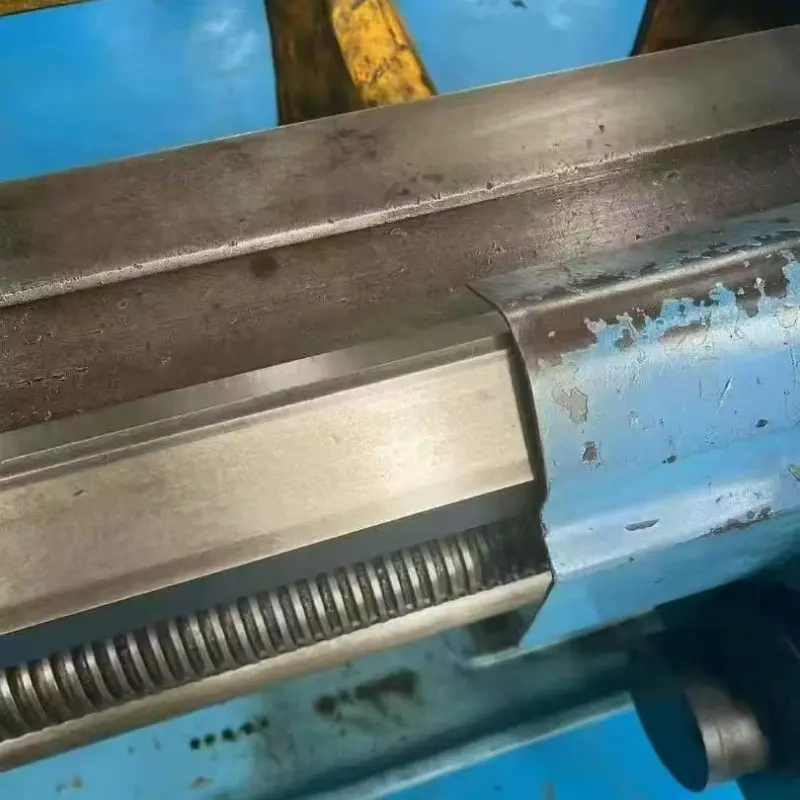

Anyang CW61125B×8000mm Used Heavy Duty Horizontal Lathe Machine
| Item | Specification |
|---|---|
| Model | Anyang CW61125B ×8000mm |
| Max Swing over Bed | 1250 mm |
| Max Swing over Carriage | 800 mm |
| Max Workpiece Length | 8000 mm |
| Spindle Bore | 130 mm |
| Main Motor Power | 18.5 kW |
| Spindle Speed Range | 2-630 rpm |
| Net Weight | 16500 kg |
| Year | 2013 |
| Machine Condition | 85% new |
| Overall Dimension(L×W×H) | 10800 ×2000 ×2100 mm |
| Condition | Used, tested, good working condition |
| Item | Specification |
|---|---|
| Model | Anyang CW61125B ×8000mm Heavy Lathe |
| Max Swing over Bed | 1250 mm |
| Max Swing over Carriage | 800 mm |
| Max Workpiece Length | 8000 mm |
| Spindle Bore | 130 mm |
| Main Motor Power | 18.5 kW |
| Spindle Speed Range | 2-630 rpm |
| Net Weight | 16500 kg |
| Manufacturing Year | 2013 |
| Machine Condition | 85% new |
| Overall Dimension(L×W×H) | 10800 ×2000 ×2100 mm |
| Machine Status | Used, fully tested, good working condition |
Advantages
- Heavy-duty horizontal lathe with thick cast iron bed, excellent rigidity for heavy load cutting.
- Max swing 1250mm and 8m long processing travel, suitable for large rollers, long heavy shafts and large disc workpieces.
- Reinforced spindle assembly, stable operation and reliable turning precision for heavy metal machining.
- Widely used in metallurgy, mining, paper industry, roller manufacturing and heavy equipment overhaul.
- Full performance inspection before delivery, support video inspection and factory on-site visit.
- Cost-effective second-hand heavy lathe, ready for large-size workpiece turning.
