Baoji CS6150B×2000mm Used Lathe Machine

Item Specification
Model Baoji CS6150B × 2000mm
Max Swing over Bed 500 mm
Max Swing over Carriage 300 mm
Max Workpiece Length 2000 mm
Spindle Bore 82 mm
Main Motor Power 7.5 kW
Spindle Speed Range 9‑1600 rpm, 24‑speed
Net Weight 2500 kg
Overall Dimension(L×W×H) 3632 × 975 × 1270 mm
Condition Used, tested, good working condition
CategoryItemSpecification
Machining CapacityMax swing diameter over bed500 mm
Max swing diameter over carriage300 mm
Max length of workpiece2000 mm
Bed width390 mm
Spindle SystemSpindle bore diameter82 mm
Spindle speed range9‑1600 rpm, 24 speeds
Spindle taperMT No.6
Feed & ThreadMetric threads48 kinds, 0.5‑224 mm
Inch threads42 kinds
Longitudinal feed range0.028‑6.43 mm/r
Cross feed range0.012‑2.73 mm/r
Tool PostTool station4‑station manual turret
Max tool shank size25×25 mm
TailstockQuill diameter75 mm
Quill travel150 mm
Tailstock taperMT5
Power SystemMain motor power7.5 kW
Cooling pump power0.15 kW
Dimension & WeightNet weight2500 kg
Overall size(L×W×H)3632 × 975 × 1270 mm

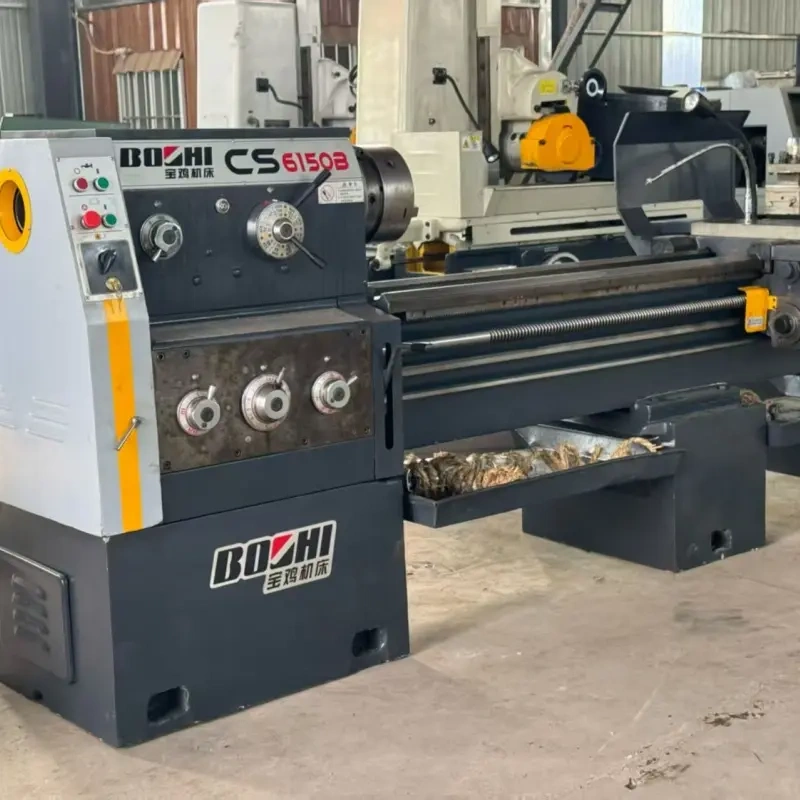

This Baoji CS6150B‑2000mm is a heavy‑duty universal horizontal lathe manufactured by well‑known Baoji‑Bochi, one of China’s most trusted lathe brands. It is suitable for turning internal & external cylinders, end‑faces, tapers, grooving, boring, drilling, and cutting metric, inch, module & diametral‑pitch threads.
With 2000mm maximum workpiece length, 82mm large spindle bore and rigid cast‑iron bed, this used lathe is widely used in machinery repair shops, metal fabrication workshops and general manufacturing. Fully tested before shipment, stable performance and long service life.

  1. High-strength cast iron bed, excellent seismic performance, capable of supporting heavy cutting, and excellent precision retention
  2. 82mm large spindle bore, suitable for processing large-diameter bars, providing a wider processing range
  3. 24-speed wide spindle speed range, compatible with various metal materials such as carbon steel, stainless steel, and aluminum
  4. Metric + imperial dual feed system, compatible with different processing habits in various countries around the world, customizable for 50Hz/60Hz voltage
  5. Baicheng factory quality, large inventory of accessories in the market, convenient for later maintenance and purchase of accessories
  6. 2000mm ultra-long processing stroke, suitable for long shafts, lead screws, and other long workpiece production and processing
