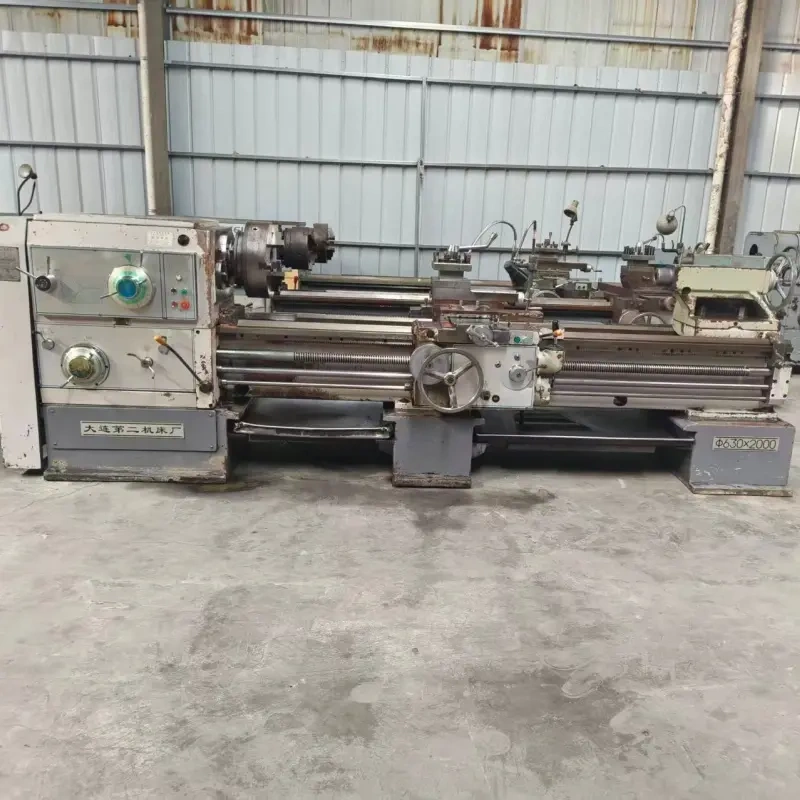

Dalian CW6163C ×2000mm Used Horizontal Lathe Machine
| Item | Specification |
|---|---|
| Model | Dalian CW6163C ×2000mm |
| Max Swing over Bed | 630 mm |
| Max Swing over Carriage | 420 mm |
| Max Workpiece Length | 2000 mm |
| Spindle Bore | 105 mm |
| Main Motor Power | 7.5 kW |
| Spindle Speed Range | 4~800 rpm,18-speed |
| Net Weight | 4200 kg |
| Overall Dimension(L×W×H) | 3100 ×1280 ×1500 mm |
| Year | 2014 (Template, editable) |
| Condition | 85% new, tested, good working condition |
| Item | Specification |
|---|---|
| Machine Model | Dalian CW6163C Horizontal Lathe |
| Max Swing over Bed | 630 mm |
| Max Swing over Carriage | 420 mm |
| Maximum Workpiece Length | 2000 mm |
| Spindle Bore Diameter | 105 mm |
| Spindle Taper | MT7 |
| Spindle Speed Range | 4 ~800 rpm,18 gear speeds |
| Main Motor Power | 7.5 kW |
| Feed Range | 0.06 ~2.04 mm/rev |
| Metric Thread Cutting Range | 1 ~40 mm |
| Inch Thread Cutting Range | 1 ~24 TPI |
| Net Weight | 4200 kg |
| Overall Dimension(L×W×H) | 3100 ×1280 ×1500 mm |
| Manufacturing Year | 2014 (Template, can be modified) |
| Machine Condition | 85% new, fully inspected & tested, good working condition |
Advantages
This is original Dalian CW6163C ×2000mm used heavy horizontal lathe, famous Chinese Dalian brand lathe with stable reliable performance.
- Thick cast iron bed, high rigidity and strong anti-vibration ability, guarantee stable cutting precision for shaft and large diameter workpieces.
- 7.5kW main motor, wide spindle speed range, capable of heavy cutting for steel, cast iron and alloy metals.
- Complete feed and thread cutting system, support turning, facing, boring, grooving, metric and inch thread machining.
- Machine fully inspected and tested before shipment, all moving components run smoothly without major faults.
- Widely used in machinery manufacturing, roller processing, hydraulic cylinder, large flange and shaft parts repair & batch production.
- Cost-effective second-hand heavy lathe, much cheaper than new machine and shorter delivery time.

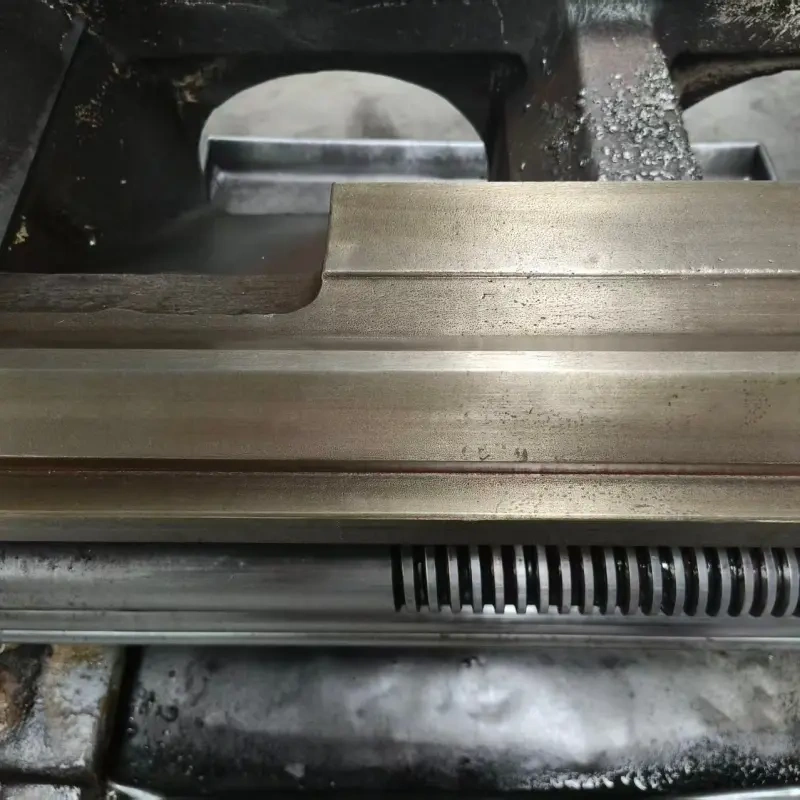

- Spindle runs steadily, guideway keeps good condition, easy operation, convenient maintenance and long service life.
