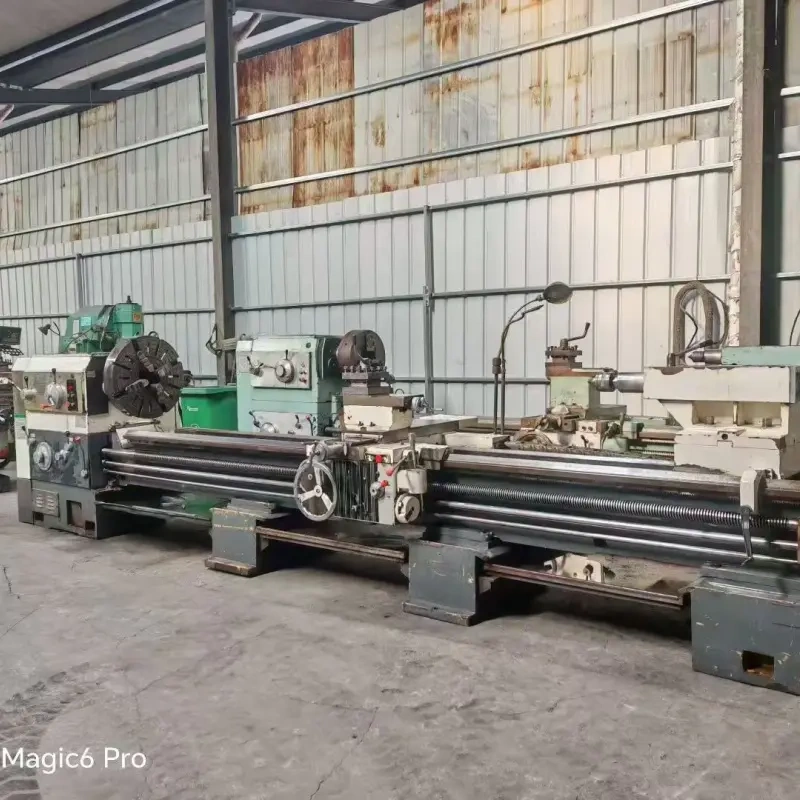

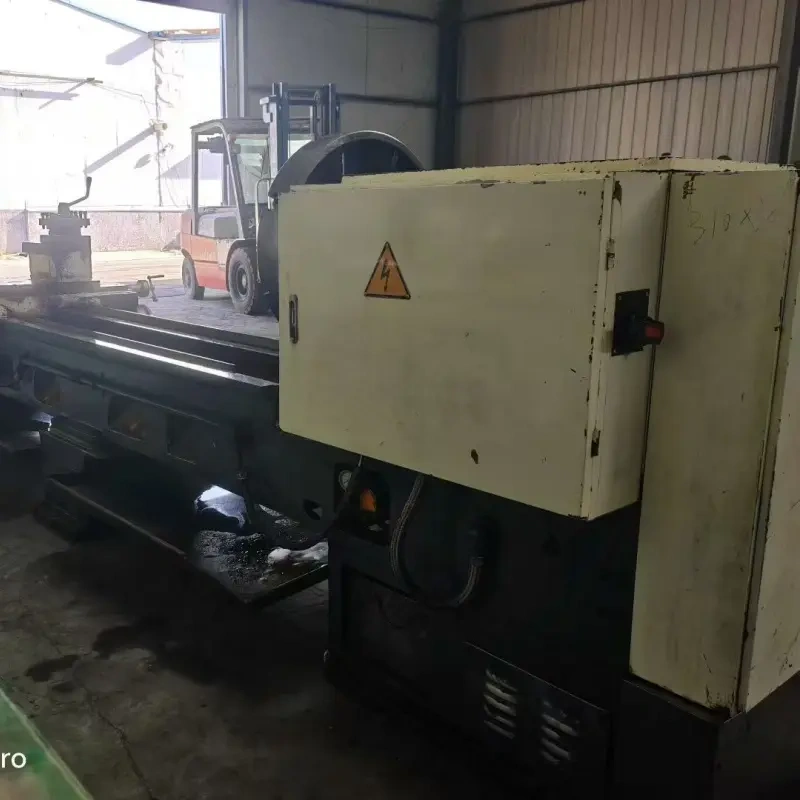

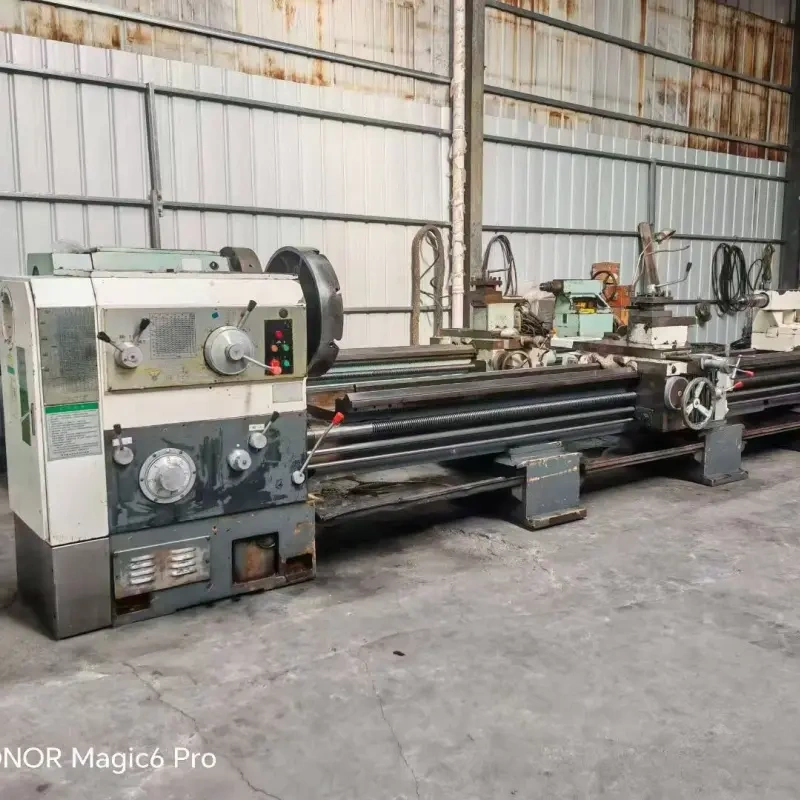

Dalian CW6180 ×4000mm Used Horizontal Lathe Machine
| Item | Specification |
|---|---|
| Model | Dalian CW6180 ×4000mm |
| Max Swing over Bed | 800 mm |
| Max Swing over Carriage | 630 mm |
| Max Workpiece Length | 4000 mm |
| Spindle Bore | 105 mm |
| Main Motor Power | 11 kW |
| Spindle Speed Range | 3.15~1000 rpm,18-speed |
| Net Weight | 6800 kg |
| Overall Dimension(L×W×H) | 5200 ×1350 ×1600 mm |
| Year | 2013 (Template, editable) |
| Condition | 85% new, tested, good working condition |
| Item | Specification |
|---|---|
| Machine Model | Dalian CW6180 Horizontal Lathe |
| Max Swing over Bed | 800 mm |
| Max Swing over Carriage | 630 mm |
| Maximum Workpiece Length | 4000 mm |
| Spindle Bore Diameter | 105 mm |
| Spindle Taper | MT7 |
| Spindle Speed Range | 3.15 ~1000 rpm,18 gear speeds |
| Main Motor Power | 11 kW |
| Feed Range | 0.06 ~2.43 mm/rev |
| Metric Thread Cutting Range | 1 ~40 mm |
| Inch Thread Cutting Range | 1 ~24 TPI |
| Net Weight | 6800 kg |
| Overall Dimension(L×W×H) | 5200 ×1350 ×1600 mm |
| Manufacturing Year | 2013 (Template, can be modified) |
| Machine Condition | 85% new, fully inspected & tested, good working condition |
Advantages
This is original Dalian CW6180 ×4000mm used heavy horizontal lathe, famous Chinese brand machine with reliable performance.

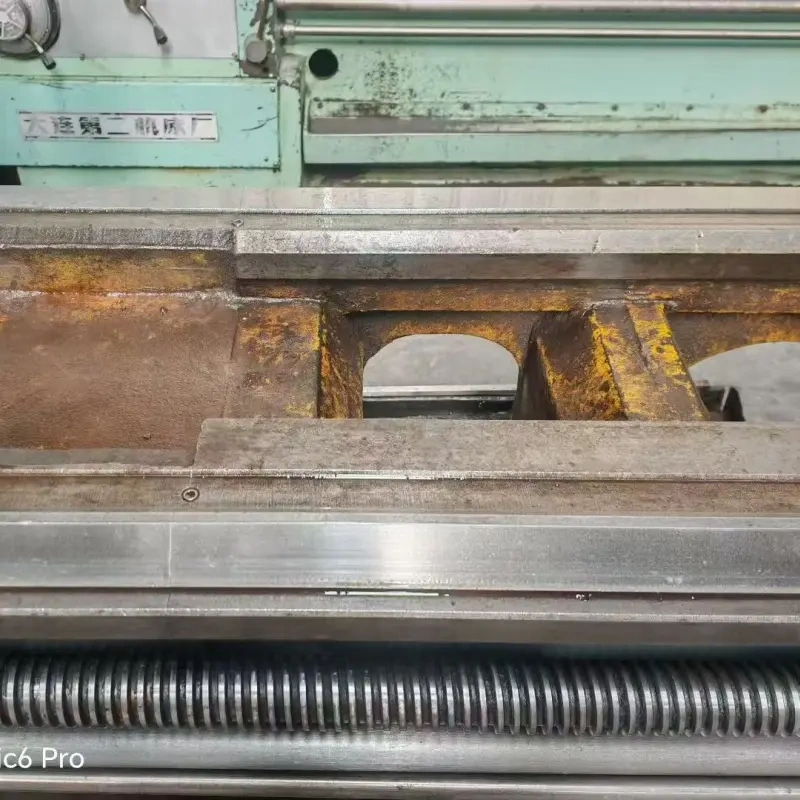

- Thick cast iron bed, high rigidity and excellent vibration resistance, ensures stable machining precision for long shaft and large diameter workpieces.
- 11kW strong main motor, wide spindle speed range, capable of heavy cutting for steel, cast iron and alloy metals.
- Complete feed and thread cutting system, supports turning, facing, boring, grooving, metric & inch thread processing.
- Machine fully inspected and tested before shipment, all moving components run smoothly without major faults.
- Widely used in heavy machinery, roller production, hydraulic cylinder, large flange and long shaft parts repair & manufacturing.
- Cost-effective second-hand heavy lathe, much cheaper than new machine and shorter delivery lead time.
- Spindle runs steadily, guideway keeps good condition, easy maintenance and long service life.
