QC12Y‑4×2500 Hydraulic Swing‑Beam Shearing Machine
| Item | Specification |
|---|---|
| Model | QC12Y‑4×2500 Hydraulic Shearing Machine |
| Max Cutting Thickness & Width | 4 mm × 2500 mm |
| Overall Dimension (L×W×H) | 3100 × 1500 × 1550 mm |
| Machine Weight | 3400 kg |
| Condition | 85% New |
| Service Years | 7 years |

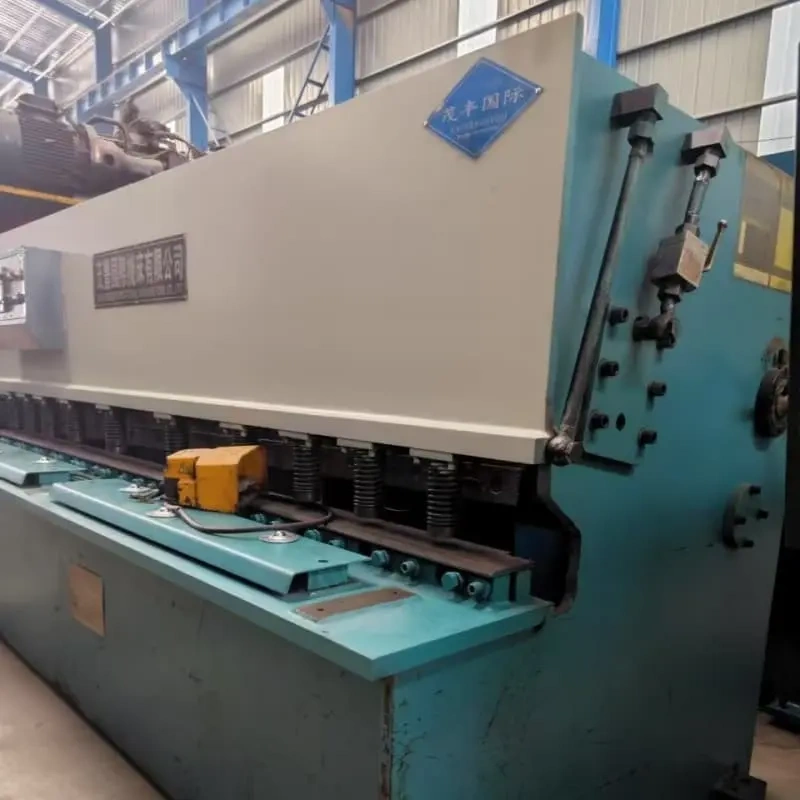

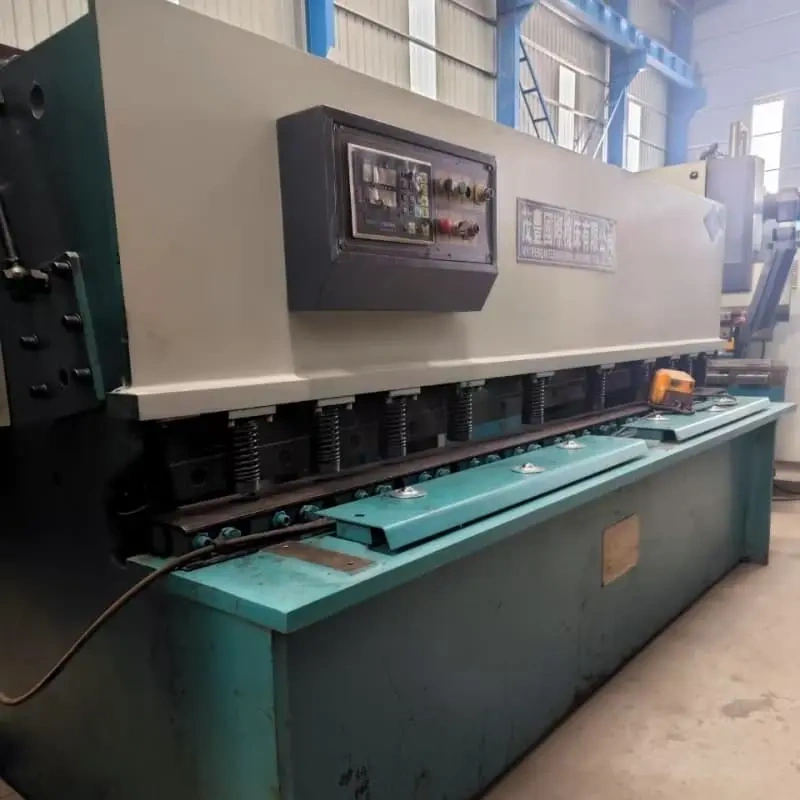

This used QC12Y‑4×2500 hydraulic swing‑beam shearing machine is widely used for cutting carbon steel, stainless steel and aluminum sheets. It adopts hydraulic swing‑beam structure with nitrogen cylinder return stroke. It can cut metal plates with thickness up to 4mm and width up to 2500mm. Equipped with adjustable blade gap and back‑gauge device. Suitable for sheet metal processing workshops, metal fabrication factories. The machine is inspected and tested, ready for production.
Advantages
- Solid welded frame structure, good rigidity for stable shearing performance.
- Hydraulic swing‑beam design with nitrogen cylinder return, smooth and fast operation.
- Adjustable blade gap, easy to adapt to different metal sheet thickness.
- Adjustable back‑gauge, improves shearing accuracy for batch sheet cutting.
- Mature popular model, spare parts are easy to source globally, low maintenance cost.
- Suitable for carbon steel, stainless steel and aluminum plate processing.
| Category | Item | Specification |
|---|---|---|
| Cutting Capacity | Max cutting thickness (carbon steel) | 4 mm |
| Max cutting width | 2500 mm | |
| Shearing angle | 1°30′ | |
| Back‑gauge range | 20‑600 mm | |
| Stroke times | 16 times/min | |
| Power | Main motor power | 5.5 kW |
| Weight & Size | Net weight | 3400 kg |
| Overall dimension(L×W×H) | 3100 × 1500 × 1550 mm | |
| Condition | Working condition | Used, fully tested |
