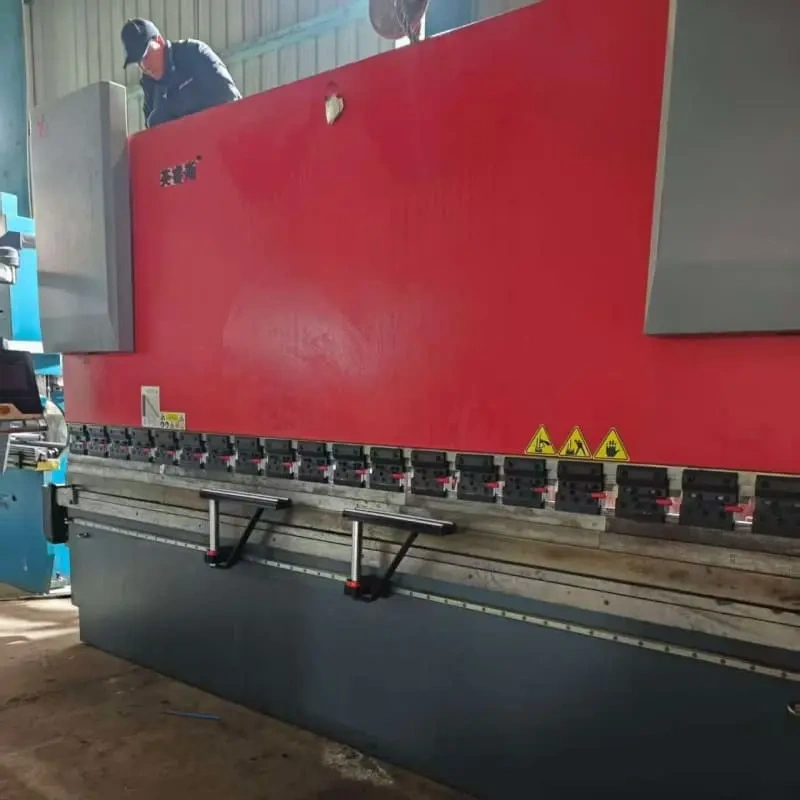

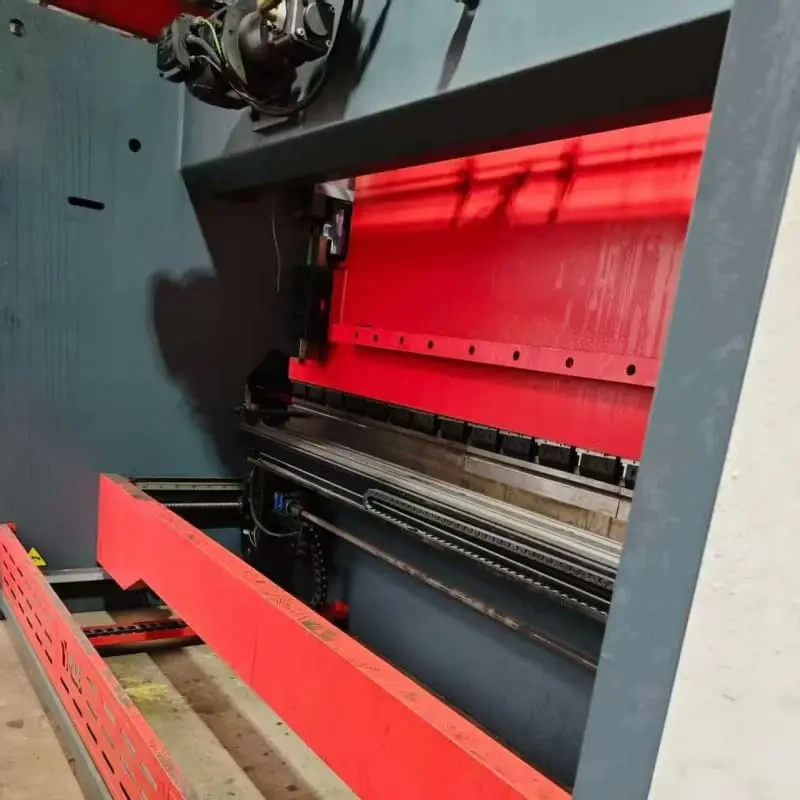

Used 250Ton ×4000mm CNC Electro-Hydraulic Press Brake, 6+1 Axis
| Item | Parameter |
|---|---|
| Model | 250T×4000 CNC Electro-Hydraulic Press Brake |
| Max Bending Force & Length | 250 Ton × 4000 mm |
| Axis Configuration | 6+1 Axis |
| Condition | 85% New |
| Service Years | 7 years |
| Machine Weight | Approx. 12500 kg |
| Specification | Data |
|---|---|
| Model | 250T×4000 CNC Electro-Hydraulic Press Brake |
| Max Bending Force | 250 Ton |
| Max Bending Length | 4000 mm |
| Axis | 6+1 Axis |
| Max Bending Thickness | 14mm mild steel |
| Ram Stroke | 200 mm |
| Max Opening Height | 480 mm |
| Backgauge Travel | 600 mm |

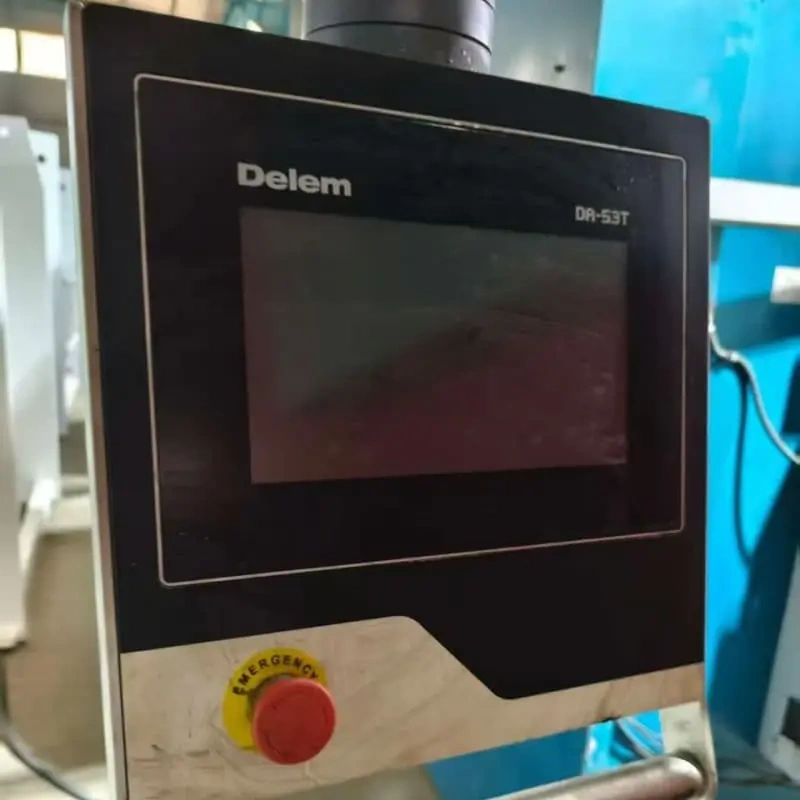

| Control System | CNC Controller |
| Main Motor Power | 18.5 kW |
| Overall Dimension(L×W×H) | 4200 ×1800 ×2450 mm |
| Machine Weight | Approx. 12500 kg |
| Service Years | 7 years |
| Machine condition | 85% new, fully inspected and running tested before shipment |
Advantages
- 250Ton 4000mm 6+1 axis electro-hydraulic CNC press brake, high-end heavy-duty sheet metal bending equipment.
- 6+1 axis synchronized electro-hydraulic control ensures excellent parallelism and ultra-high bending precision.
- Heavy welded frame with stress relief annealing, minimal deflection under full load for long-term stable operation.
- Multi-axis backgauge supports complex multi-step bending programming, ideal for batch and complex workpiece production.
- High precision hydraulic proportional valve system, stable pressure, low noise and good repeat positioning accuracy.
- Equipped with standard punch & die sets, can process thick plate, stainless steel, carbon steel and alloy plates.
- Widely used in heavy steel structure, electrical cabinet, engineering machinery and large metal fabrication workshop.
- The machine has been fully overhauled, hydraulic oil replaced, electric components checked and running tested before delivery.
- High performance second-hand multi-axis CNC bending machine with outstanding cost performance.
