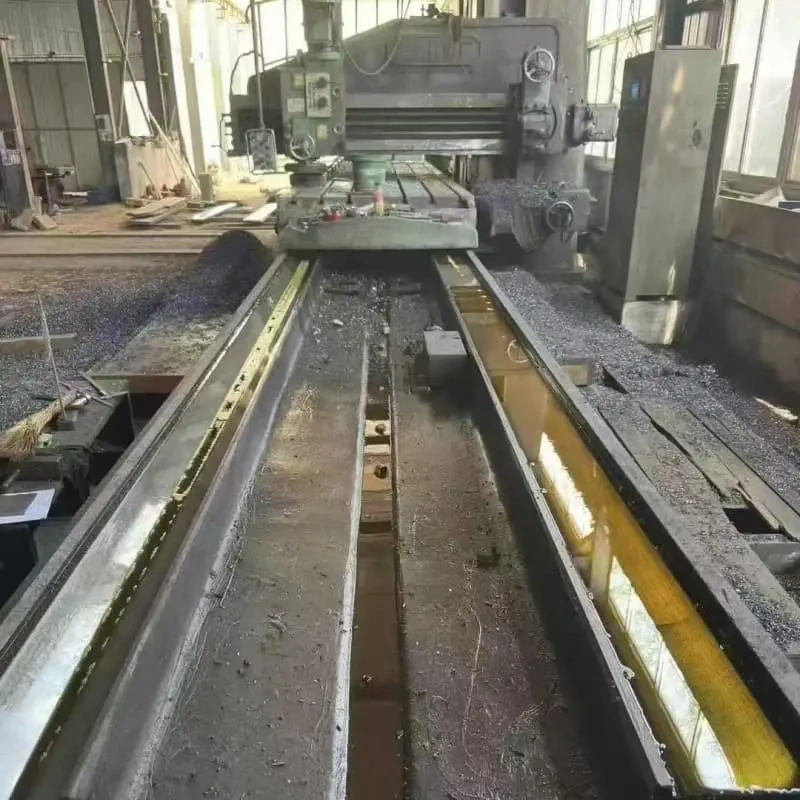

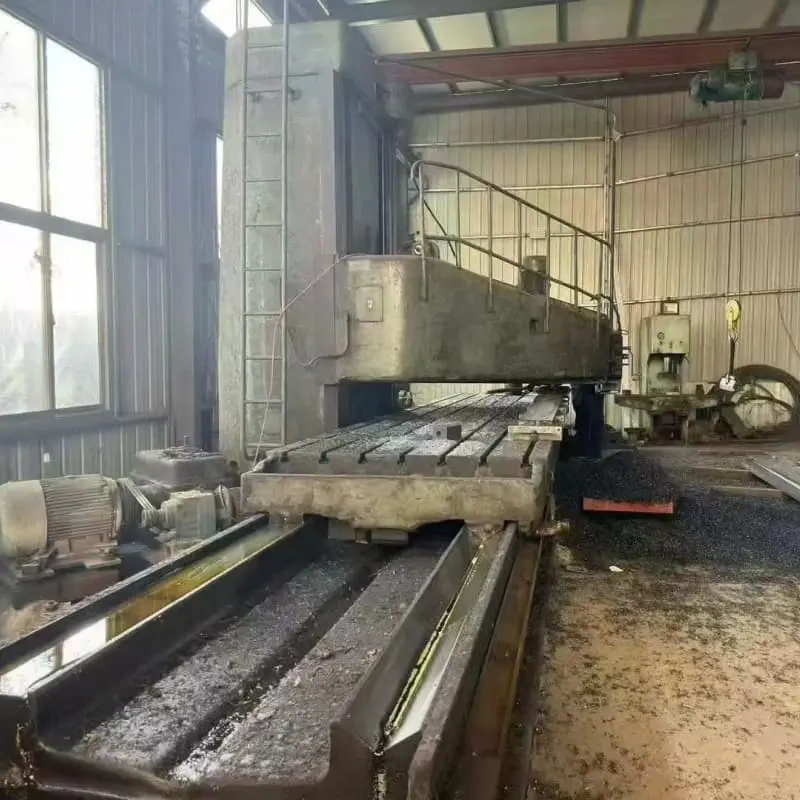

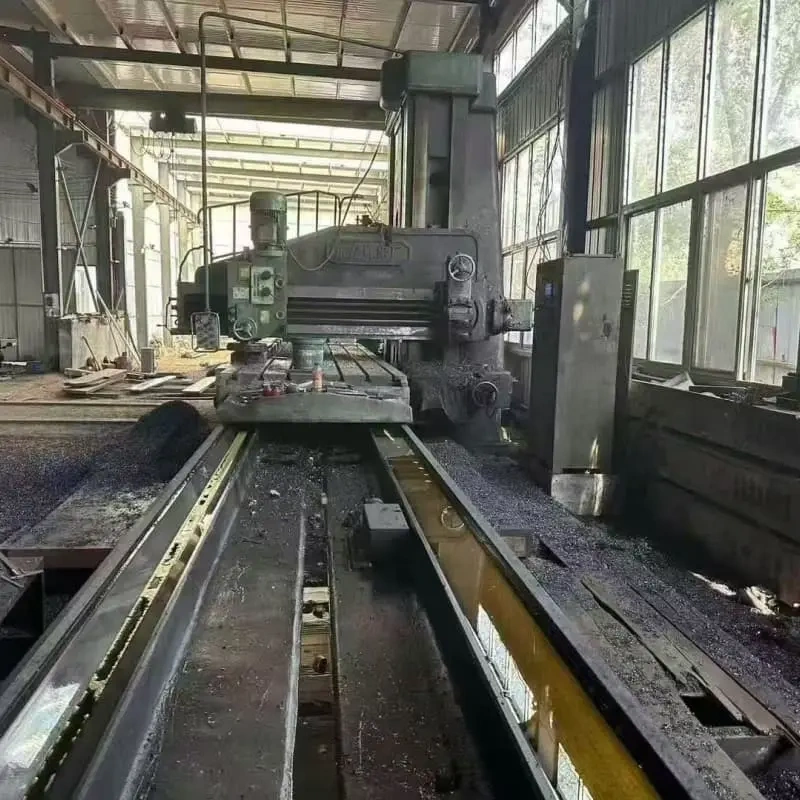

Used B1016A Single Arm Planer 1600×6000mm
| Item | Specification |
|---|---|
| Model | B1016A Single Arm Planer |
| Max Planing Size | 1600 × 6000 mm |
| Overall Dimension (L×W×H) | 13800 × 4400 × 3920 mm |
| Machine Weight | 55000 kg |
| Condition | 85% New |
| Service Years | 9 years |
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max planing width | 1600 mm |
| Max planing length | 6000 mm | |
| Max planing height | 1250 mm | |
| Max workpiece weight | 18000 kg | |
| Worktable | Table travel speed | 3～30 m/min, stepless speed |
| Table surface size | 6000 × 1600 mm | |
| Power | Main drive DC motor | 60 kW |
| Weight & Size | Net weight | 55000 kg |
| Overall dimension(L×W×H) | 13800 × 4400 × 3920 mm | |
| Status | Working condition | Used, fully inspected & tested |
This second-hand B1016A heavy-duty single arm planer is suitable for rough and finish planing of horizontal, vertical, inclined surfaces and guide rails on large metal workpieces. Widely used in machinery repair, mining equipment and heavy machinery manufacturing. Equipped with DC stepless speed regulation for stable table reciprocating motion. Machine fully inspected and tested before shipment.
Advantages
- Heavy cast iron bed structure, strong rigidity, stable heavy cutting performance.
- DC stepless speed regulation for worktable, wide adjustable speed range.
- Vertical and side tool posts, capable for multi-surface planing in one setup.
- Suitable for processing guide rails, steel plates and large structural parts.
- Mature heavy-duty model, mechanical structure easy for maintenance.
- Large load capacity, supports heavy workpiece clamping up to 18 tons.
