Used C6266C×2000mm Horizontal Lathe for Metal Turning Work
| Category | Item | Specification |
|---|---|---|
| Basic Parameter | Model | C6266C×2000 |

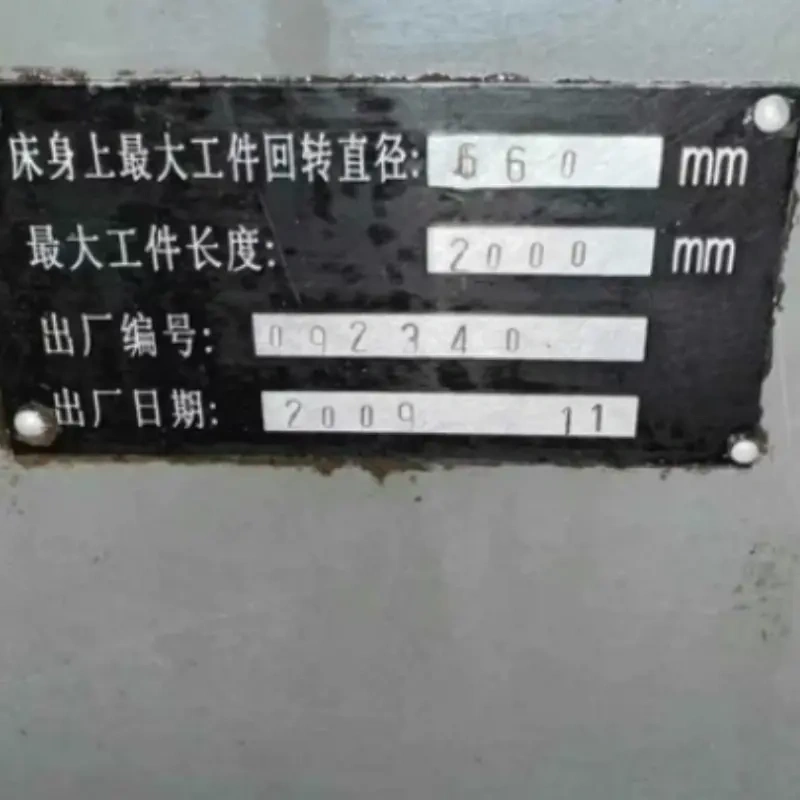

| Max swing over bed | 660 mm | |
| Max swing over carriage | 420 mm | |
| Max distance between centers | 2000 mm | |
| Spindle bore | 82 mm | |
| Spindle speed range | 9~1600 r/min, 24 speeds | |
| Main motor power | 7.5 kW | |
| Net weight | 2400 kg | |
| Machine condition | Used, fully tested |
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 660 mm |
| Max swing over carriage | 420 mm | |
| Max distance between centers | 2000 mm | |
| Spindle | Spindle bore diameter | 82 mm |
| Spindle nose type | ISO 702/Ⅱ No.8 | |
| Spindle speed | 24 speeds, 9~1600 r/min | |
| Main motor power | 7.5 kW | |
| Tool Post | Tool station quantity | 4 positions |
| Tool shank size | 25×25 mm | |
| Top slide travel | 145 mm | |
| Cross slide travel | 320 mm | |
| Tailstock | Tailstock sleeve diameter | 75 mm |
| Tailstock sleeve travel | 150 mm | |
| Tailstock taper | MT5# | |
| Feed & Thread | Longitudinal feeds | 93 kinds |
| Cross feeds | 93 kinds | |
| Metric threads | 48 kinds | |
| Inch threads | 46 kinds | |
| Module threads | 42 kinds | |
| Diametral pitch threads | 45 kinds | |
| Cooling System | Coolant pump | 150W, 25L/min |
| Dimension & Weight | Overall dimension(L×W×H) | 3632 × 975 × 1270 mm |
| Net weight | 2400 kg | |
| Power Supply | Input power | 380V/50Hz (customizable) |
| Machining Accuracy | Machining precision | IT6~IT7 |
The C6266C×2000mm horizontal lathe is universal metal cutting equipment. It can perform internal and external cylindrical turning, taper turning, facing, grooving, and cut metric, inch, module and diametral pitch threads. Widely used in machinery manufacturing, metal fabrication, mold processing and equipment maintenance for turning shaft and disc workpieces with medium large diameter.
Key Features
- Heavy cast iron bed, high rigidity for stable metal cutting
- Max swing over bed 660mm, 2000mm distance between centers
- 24-speed spindle, wide speed range to meet rough and finish turning
- Suitable for carbon steel, stainless steel, cast iron and alloy steel machining
- Reliable mechanical structure, convenient operation and maintenance
- Universal standard model, spare parts easy to obtain globally
