Used CKA6163A CNC Lathe Machine 3000mm Working Length Horizontal CNC Turning Lathe For Metal Workpiece Processing
Used CKA6163A CNC Lathe Machine 3000mm Working Length Horizontal CNC Turning Lathe For Metal Workpiece Processing - 图片 2
Used CKA6163A CNC Lathe Machine 3000mm Working Length Horizontal CNC Turning Lathe For Metal Workpiece Processing - 图片 3
Used CKA6163A CNC Lathe Machine 3000mm Working Length Horizontal CNC Turning Lathe For Metal Workpiece Processing - 图片 4
Used CKA6163A CNC Lathe Machine 3000mm Working Length Horizontal CNC Turning Lathe For Metal Workpiece Processing - 图片 5
Used CKA6163A CNC Lathe Machine 3000mm Working Length Horizontal CNC Turning Lathe For Metal Workpiece Processing - 图片 6

Used CKA6163A CNC Lathe Machine 3000mm Working Length Horizontal CNC Turning Lathe For Metal Workpiece Processing

Item Specification
Model CKA6163A
Max swing over bed 630 mm
Max turning length 3000 mm
Spindle bore 105 mm
Main motor power 11 kw
Condition Used, fully tested good condition
Get Free Quote
Chat on WhatsApp
CategoryItemSpecification
Machining CapacityMax swing over bed630 mm
Max swing over carriage350 mm
Max distance between centers3000 mm
SpindleSpindle bore diameter105 mm
Spindle speed range10‑1100 r/min
Spindle nose typeD8
Drive SystemMain motor power11 kw
CNC Control SystemGSK system
Dimension & WeightMachine weight5600 kg
Overall size(L×W×H)4400×1550×1720 mm
Machine StatusConditionUsed, inspected and tested, reliable working status

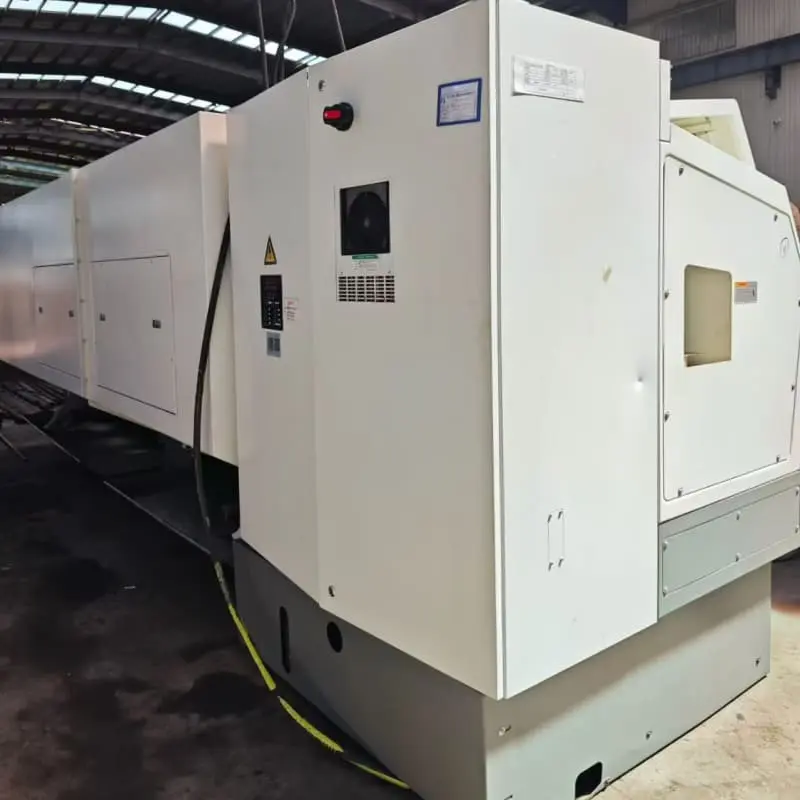

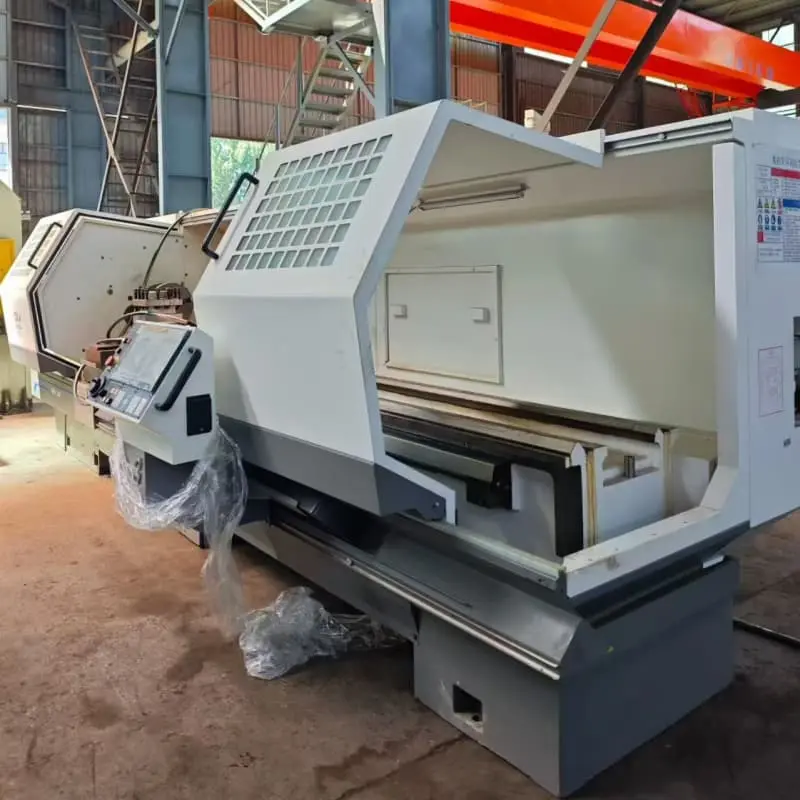

This is a used CKA6163A horizontal CNC lathe with 3000 mm processing length. Equipped with mature GSK numerical control system, it is suitable for processing long‑shaft, sleeve and disc metal parts. The machine has been fully inspected, cleaned and run‑tested before shipment. Standard basic accessories are provided. Suitable for machinery workshops, repair shops and batch production. We can send you the machine test‑run video upon your request.
