Used CS6140×2000mm Horizontal Lathe for Metal Turning Work
| Category | Item | Specification |
|---|---|---|
| Basic Parameter | Model | CS6140×2000 |
| Max swing over bed | 400 mm | |
| Max distance between centers | 2000 mm | |
| Spindle bore | 52 mm | |
| Spindle speed range | 10~1400 r/min, 24 speeds | |
| Main motor power | 7.5 kW | |
| Net weight | 2100 kg | |
| Machine condition | Used, fully tested |
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 400 mm |
| Max swing over carriage | 250 mm | |
| Max distance between centers | 2000 mm | |
| Spindle | Spindle bore diameter | 52 mm |
| Spindle nose type | ISO 702/Ⅲ No.6 | |
| Spindle speed | 24 speeds,10~1400 r/min | |
| Main motor power | 7.5 kW | |
| Tool Post | Tool station quantity | 4 positions |
| Tool shank size | 20×20 mm | |
| Top slide travel | 140 mm | |
| Cross slide travel | 260 mm | |
| Tailstock | Tailstock sleeve diameter | 70 mm |
| Tailstock sleeve travel | 150 mm | |
| Tailstock taper | MT5# | |
| Feed & Thread | Longitudinal feeds | 0.02~3.04 mm/r |
| Cross feeds | 0.01~1.52 mm/r | |
| Metric threads | 0.5~224 mm | |
| Inch threads | 72~1/8 tpi | |
| Module threads | 0.5~112 πmm | |
| Diametral pitch threads | 1/4~56 DP | |
| Cooling System | Coolant pump | 150W |
| Dimension & Weight | Overall dimension(L×W×H) | 3400 × 900 × 1200 mm |
| Net weight | 2100 kg | |

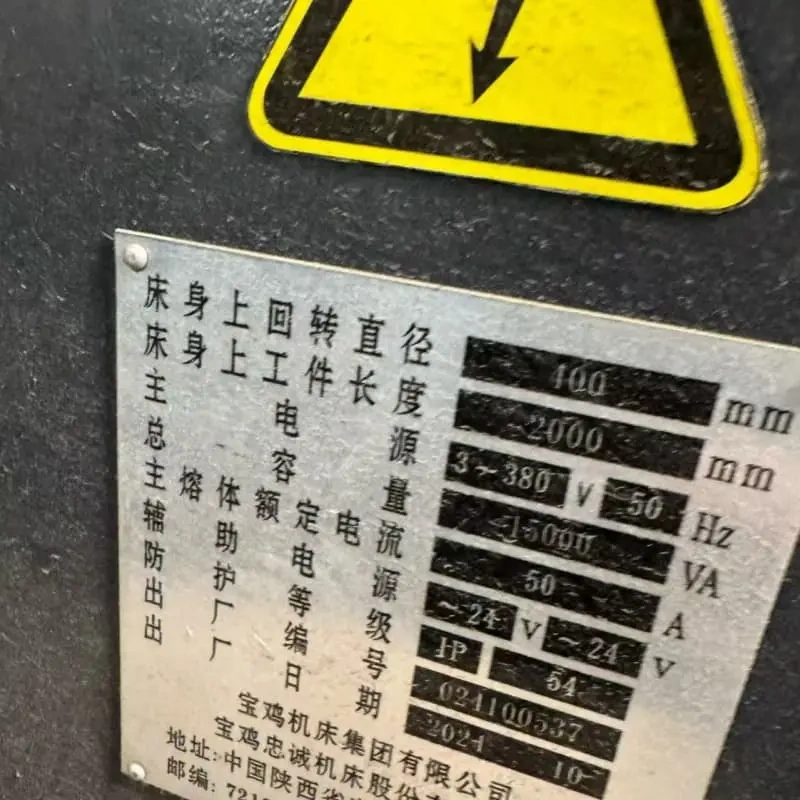

| Power Supply | Input power | 380V/50Hz (customizable) |
| Machining Accuracy | Machining precision | IT6~IT7 |
he CS6140×2000mm horizontal lathe is universal metal cutting equipment. It can process inner and outer cylindrical surfaces, taper surfaces, end faces, and cut metric, inch, module and diametral pitch threads. Widely used in machinery manufacturing, metal fabrication and equipment maintenance for turning shaft and disc workpieces.
Key Features

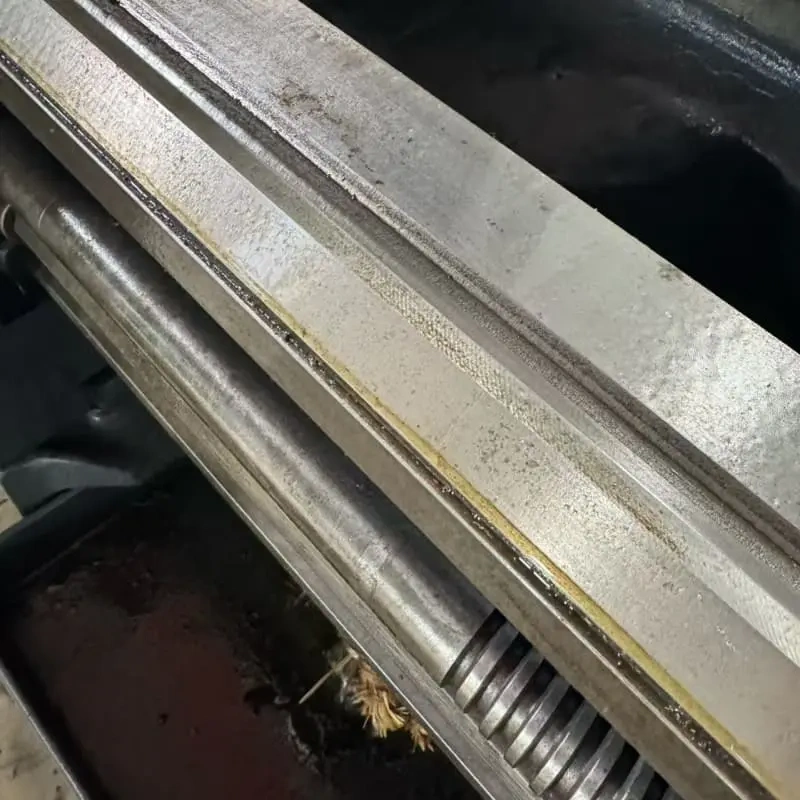

- Classic CS6140 lathe with heavy cast iron bed for strong rigidity
- Max swing over bed 400mm, 2000mm distance between centers
- 24-speed spindle, wide speed range for rough and finish turning
- Suitable for carbon steel, stainless steel, cast iron and alloy metal machining
- Reliable mechanical structure, convenient operation and maintenance
- Universal standard model, spare parts easy to obtain globally
