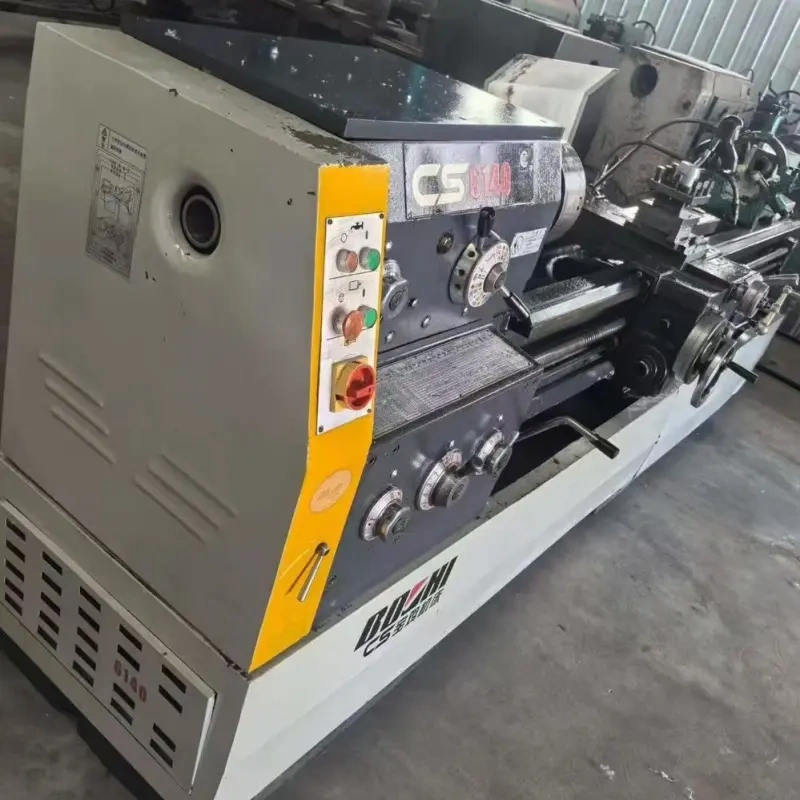

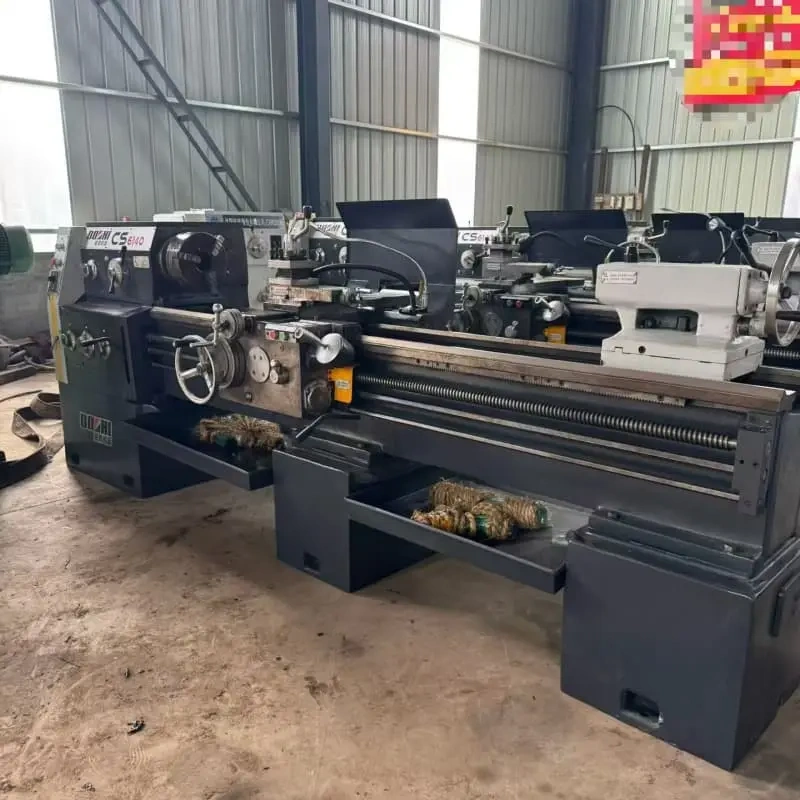

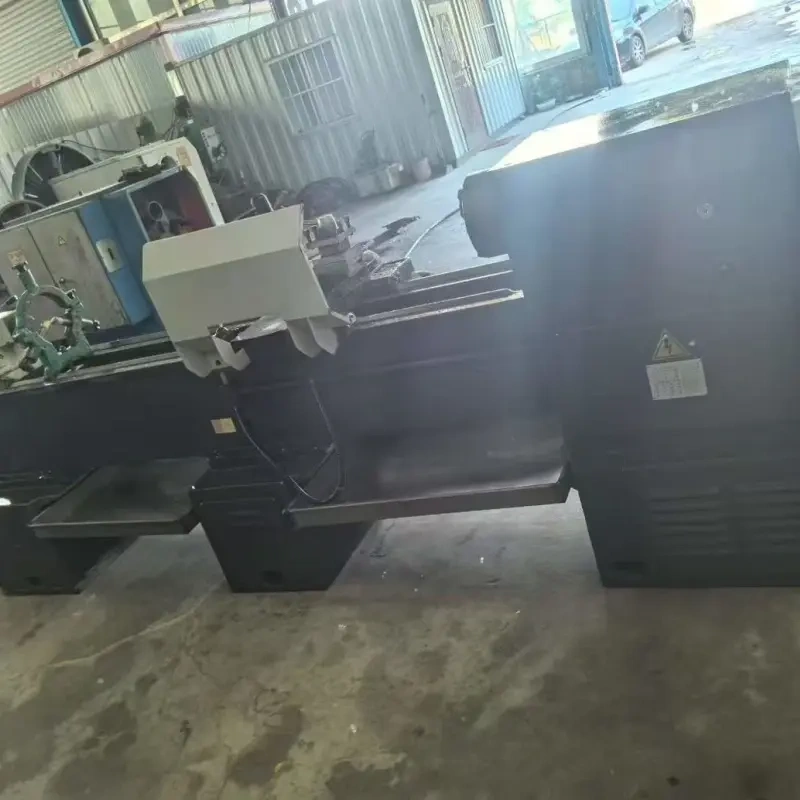

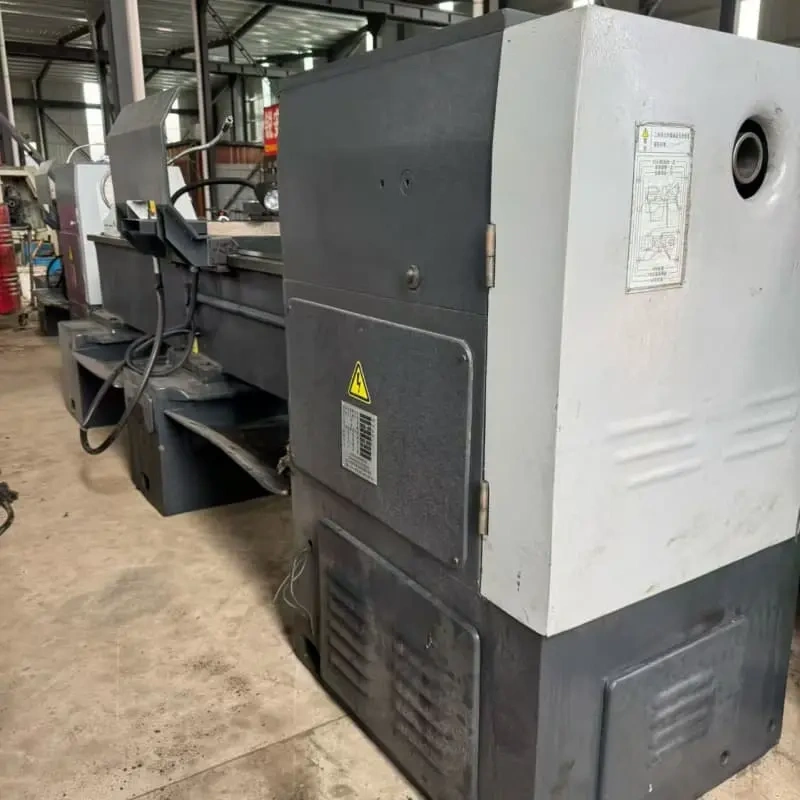

Used CS6140×2m Horizontal Lathe for Metal Turning Work
Category Item Specification
Basic Parameter Model CS6140×2000
Max swing over bed 400 mm
Max workpiece length (distance between centers) 2000 mm
Spindle bore 52 mm
Spindle speed range 9~1600 r/min, 24 speeds
Main motor power 7.5 kW
Net weight 2450 kg
Machine condition Used, fully tested
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 400 mm |
| Max swing over carriage | 220 mm | |
| Max workpiece length (distance between centers) | 2000 mm | |
| Spindle | Spindle bore diameter | 52 mm |
| Spindle nose type | ISO 702/Ⅲ No.6 | |
| Spindle speed | 24 speeds, 9~1600 r/min | |
| Main motor power | 7.5 kW | |
| Tool Post | Tool station quantity | 4 positions |
| Tool shank size | 25×25 mm | |

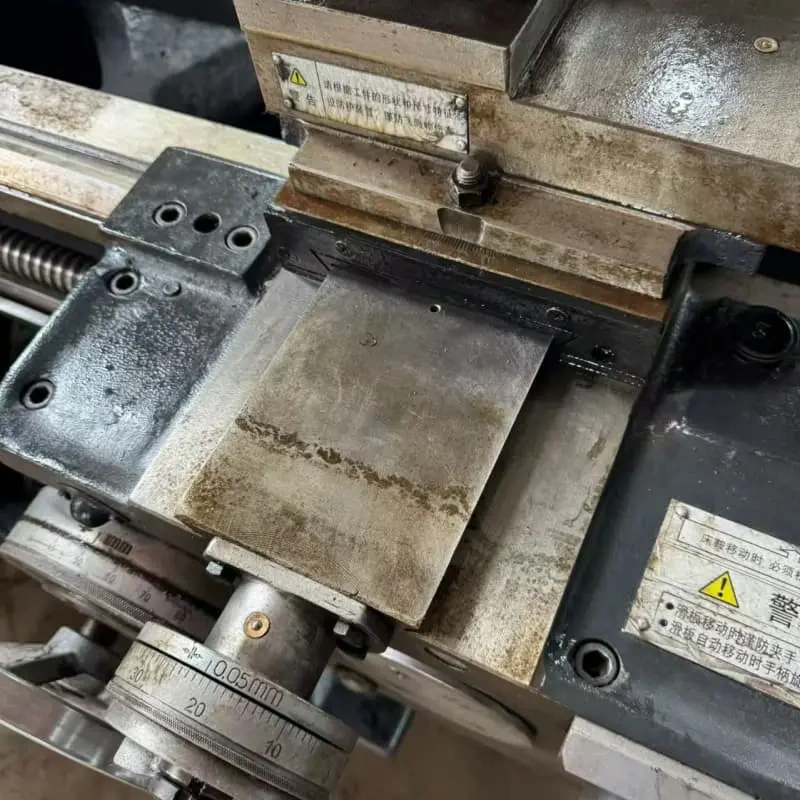

| Top slide travel | 145 mm | |
| Cross slide travel | 320 mm | |
| Tailstock | Tailstock sleeve diameter | 75 mm |
| Tailstock sleeve travel | 150 mm | |
| Tailstock taper | MT5# | |
| Feed & Thread | Longitudinal feeds | 93 kinds |
| Cross feeds | 93 kinds | |
| Metric threads | 48 kinds | |
| Inch threads | 46 kinds | |
| Module threads | 42 kinds | |
| Diametral pitch threads | 45 kinds | |
| Cooling System | Coolant pump | 150W, 25L/min |
| Dimension & Weight | Overall dimension(L×W×H) | 3632 × 975 × 1230 mm |
| Net weight | 2450 kg | |
| Power Supply | Input power | 380V/50Hz (customizable) |
| Machining Accuracy | Machining precision | IT6~IT7 |
The CS6140×2m horizontal lathe is universal metal cutting equipment. It can process inner and outer cylindrical surfaces, conical surfaces, end faces, and cut metric, inch, module and diametral pitch threads. Widely applied in machinery manufacturing, pressure equipment, metal fabrication and vocational training for turning shaft and disc workpieces.
Key Features
- Classic CS6140 structure, max workpiece length up to 2000mm
- Heavy cast iron bed, high rigidity and stable cutting performance
- 24-speed spindle with wide speed range to satisfy various cutting demands
- Suitable for carbon steel, stainless steel, cast iron and alloy metal machining
- Reliable mechanical structure, convenient operation and maintenance
- Universal standard model, spare parts easy to obtain globally
