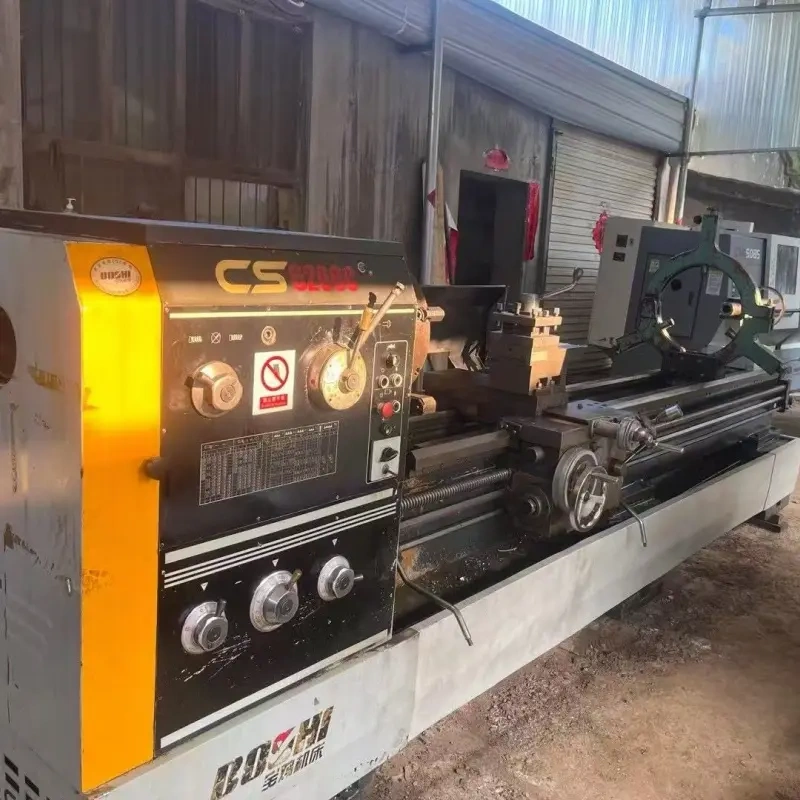

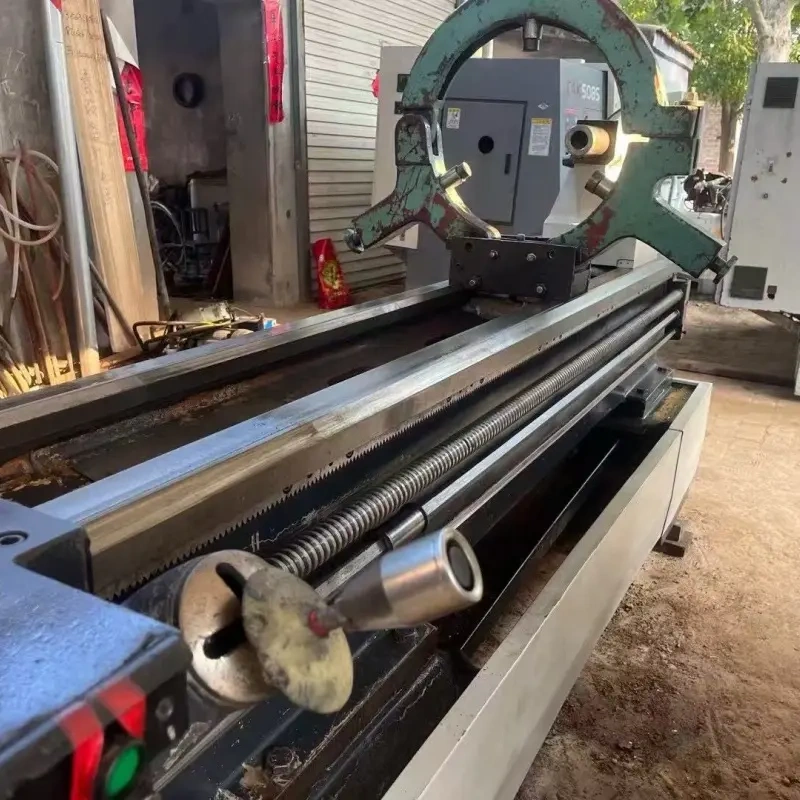

Used CS6266C ×3000mm Manual Horizontal Lathe, Heavy‑Duty Metal Turning Lathe
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 660 mm |
| Max swing over carriage | 420 mm | |
| Max distance between centers | 3000 mm | |
| Spindle | Spindle bore diameter | 80 mm |
| Spindle nose type | ISO 702/III No.8 | |
| Spindle speed | 24 speeds, 7‑1250 r/min | |
| Power | Main motor power | 11 kW |
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 660 mm |
| Max swing over carriage | 420 mm | |
| Max distance between centers | 3000 mm | |
| Max turning length | 3000 mm | |
| Spindle | Spindle bore diameter | 80 mm |
| Spindle nose type | ISO 702/III No.8 | |
| Spindle speed range | 24 speeds, 7‑1250 r/min | |
| Feed & Thread | Longitudinal feed range | 0.04‑2.16 mm/r |
| Metric thread range | 1‑240 mm | |
| Power | Main motor power | 11 kW |
| Dimension & Weight | Overall dimension(L×W×H) | 4150×1180×1380 mm |
| Net weight | 4200 kg |
This is a used CS6266C‑3000mm heavy‑duty horizontal manual lathe. Suitable for heavy metal turning, facing, threading, boring and grooving work. Equipped with standard accessories, fully inspected and tested in good working condition. Ideal for machinery repair shops, general manufacturing and heavy‑load processing.
