Used CW61100 ×3000mm Heavy‑Duty CNC Turning Lathe Machine for Metal Work
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 1000 mm |
| Max swing over carriage | 630 mm | |
| Max distance between centers | 3000 mm | |
| Spindle | Spindle bore diameter | 130 mm |
| Spindle nose type | ISO 702/III No.15 | |
| Spindle speed | 2‑800 r/min | |
| Power | Main motor power | 22 kW |
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 1000 mm |
| Max swing over carriage | 630 mm | |
| Max distance between centers | 3000 mm | |
| Max turning length | 3000 mm | |
| Spindle | Spindle bore diameter | 130 mm |
| Spindle nose type | ISO 702/III No.15 | |
| Spindle speed range | 2‑800 r/min | |
| Axis Travel | X‑axis travel | 550 mm |
| Z‑axis travel | 3000 mm | |

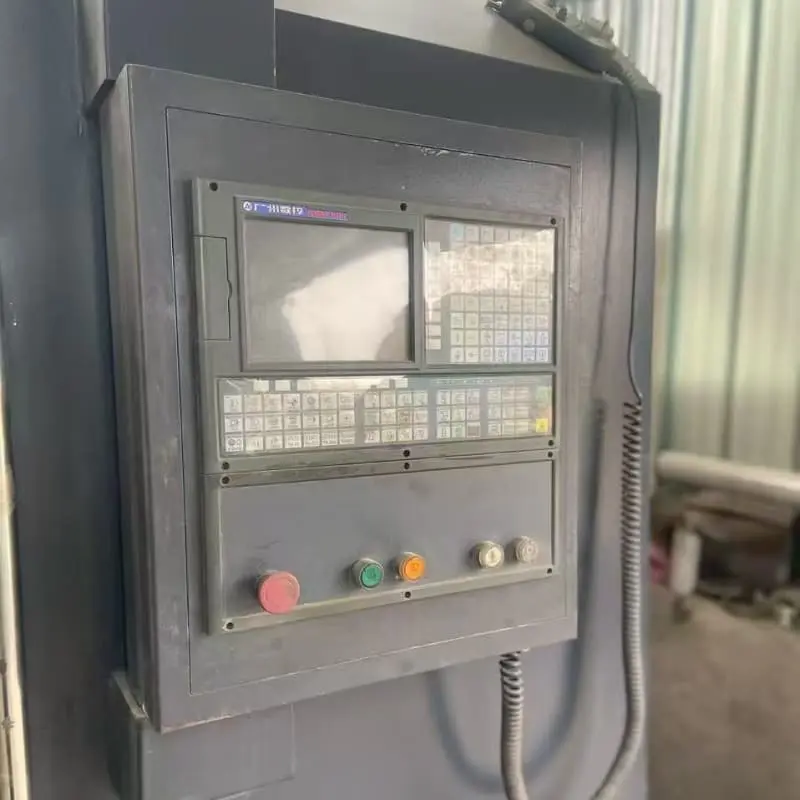

| Control System | Standard | GSK CNC control system |
| Power | Main motor power | 22 kW |
| Dimension & Weight | Overall dimension(L×W×H) | 4600×1850×1780 mm |
| Net weight | 11500 kg |

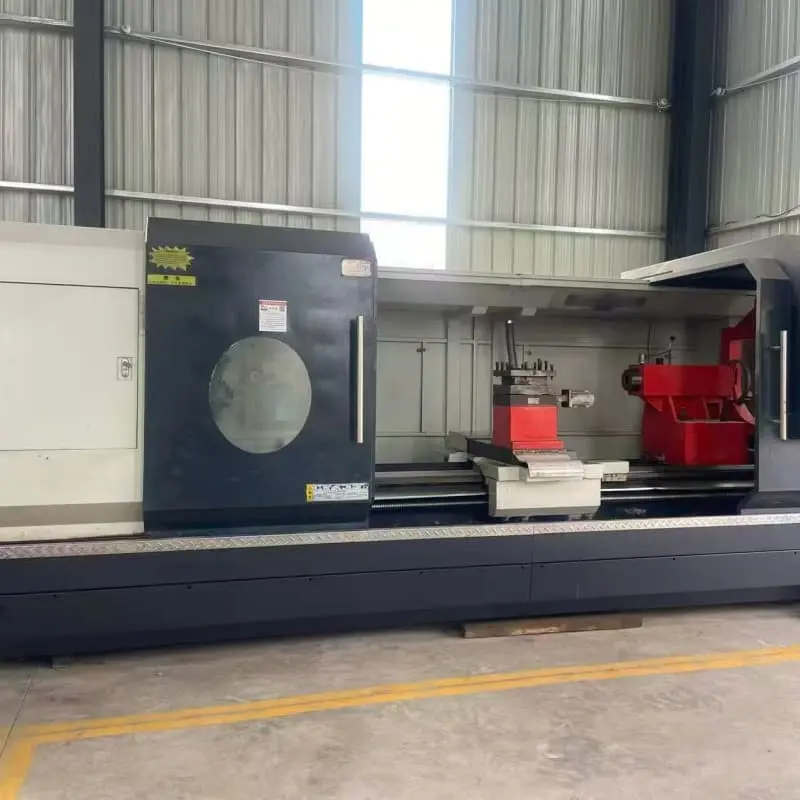

This is a used CW61100‑3000mm heavy‑duty CNC horizontal lathe. Fitted with GSK CNC system, it supports heavy‑load turning, facing, threading, boring and large‑size metal component processing. The machine has been fully inspected and tested, keeps good working condition. Perfect for heavy machinery factories, petroleum accessories processing and heavy‑duty batch production.
