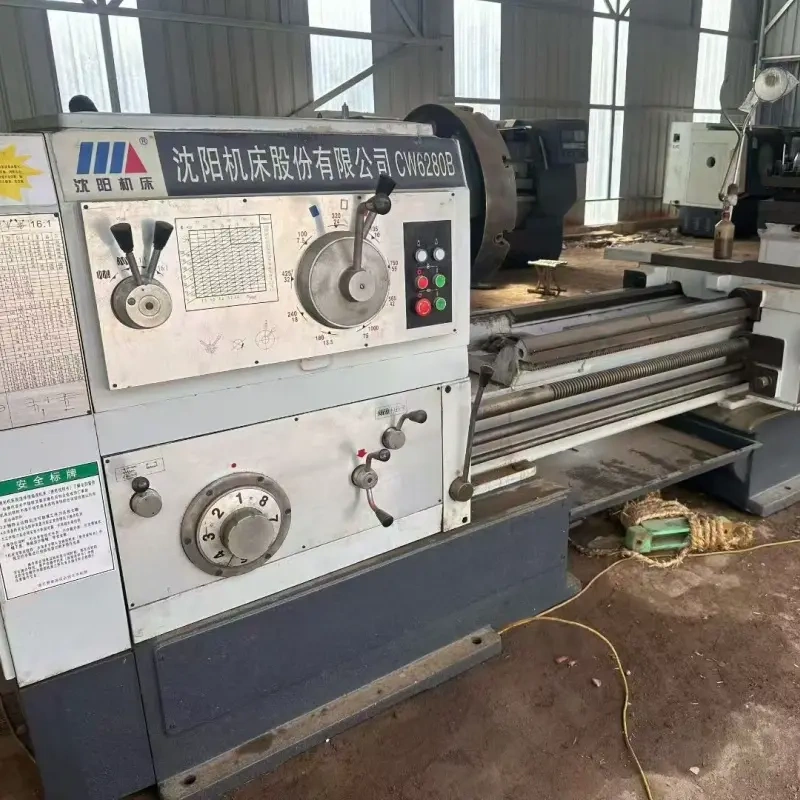

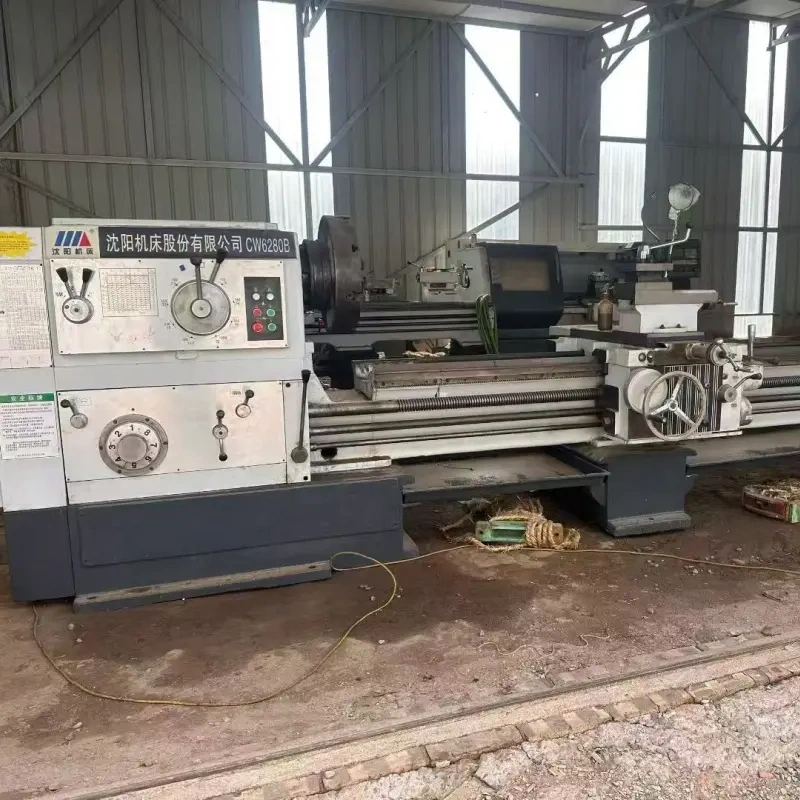

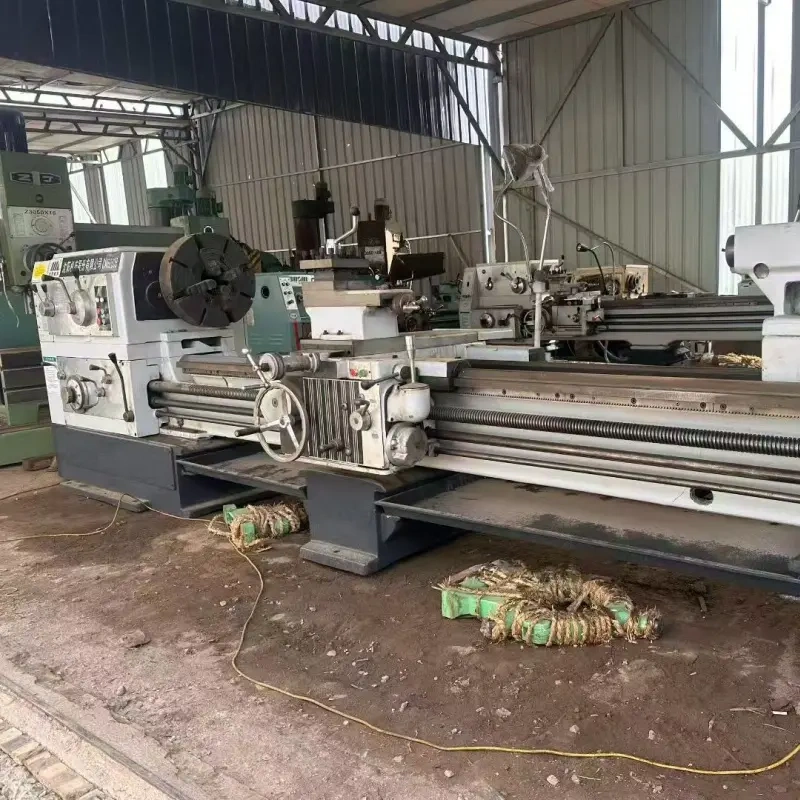

Used CW6280B×3000mm Heavy Duty Horizontal Lathe for Metal Turning Work
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 800 mm |
| Max swing over carriage | 580 mm | |
| Max distance between centers | 3000 mm | |
| Spindle | Spindle bore diameter | 105 mm |
| Spindle nose type | ISO 702/Ⅱ No.11 | |
| Spindle speed | 24 speeds, 3.15~1400 r/min | |
| Main motor power | 11 kW | |

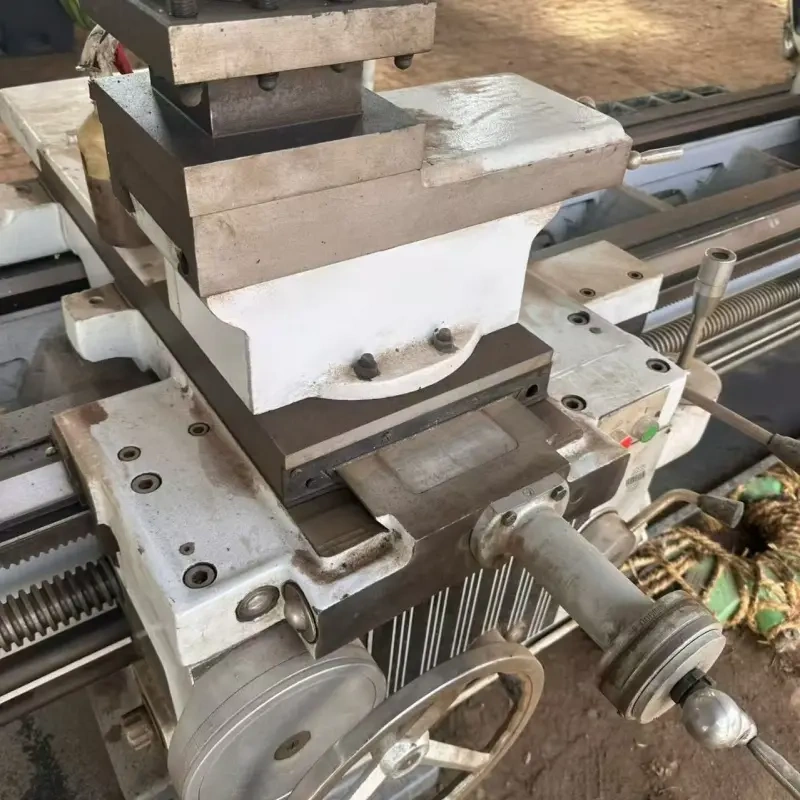

| Tool Post | Tool station quantity | 4 positions |
| Tool shank size | 32×32 mm | |
| Top slide travel | 200 mm | |
| Cross slide travel | 420 mm | |
| Tailstock | Tailstock sleeve diameter | 100 mm |
| Tailstock sleeve travel | 200 mm | |
| Tailstock taper | MT6# | |
| Feed & Thread | Longitudinal feeds | 0.06~24.3 mm/r |
| Cross feeds | 0.03~12.15 mm/r | |
| Metric threads | 1~120 mm | |
| Inch threads | 24~1/4 tpi | |
| Module threads | 0.5~60 πmm | |
| Diametral pitch threads | 2~48 DP | |
| Cooling System | Coolant pump | 0.15 kW |
| Dimension & Weight | Overall dimension(L×W×H) | 4800 × 1300 × 1550 mm |
| Net weight | 4200 kg | |
| Power Supply | Input power | 380V/50Hz (customizable) |
| Machining Accuracy | Machining precision | IT6~IT7 |
| Category | Item | Specification |
|---|---|---|
| Basic Parameter | Model | CW6280B×3000 |
| Max swing over bed | 800 mm | |
| Max swing over carriage | 580 mm | |
| Max distance between centers | 3000 mm | |
| Spindle bore | 105 mm | |
| Spindle speed range | 3.15~1400 r/min, 24 speeds | |
| Main motor power | 11 kW | |
| Net weight | 4200 kg | |
| Machine condition | Used, fully tested |
The CW6280B×3000mm heavy-duty horizontal lathe is a universal metal cutting machine. It can perform internal and external cylindrical turning, taper turning, facing, grooving, and threading of metric, inch, module and diametral pitch threads. Widely used in machinery manufacturing, pressure vessel, mining equipment and metal fabrication for processing large-diameter, long shaft and disc workpieces.
This is used equipment, fully inspected, cleaned and test-run before shipment. All mechanical components work normally. We support video checking before loading.
