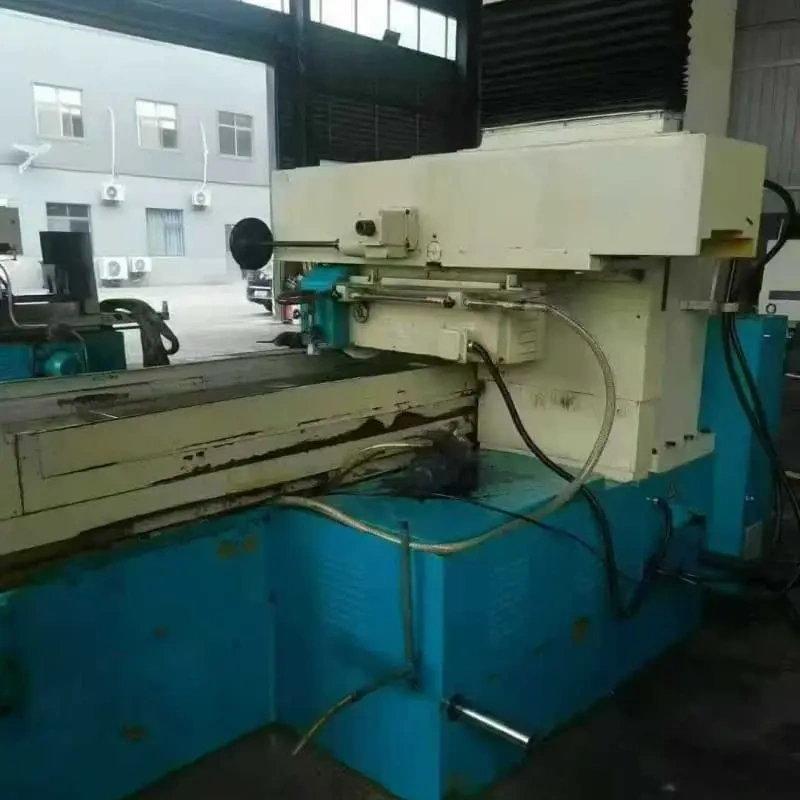

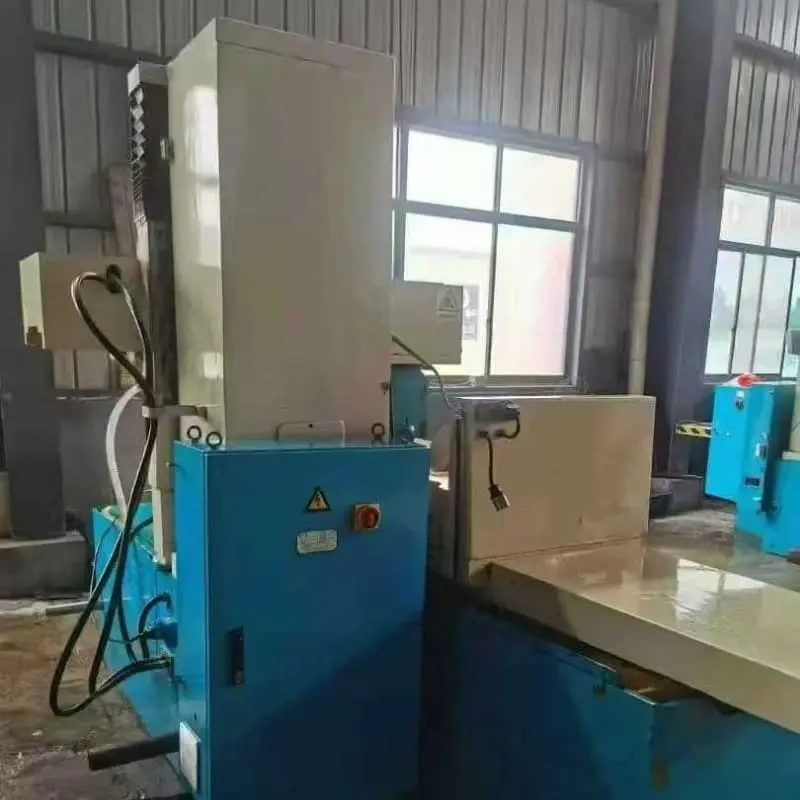

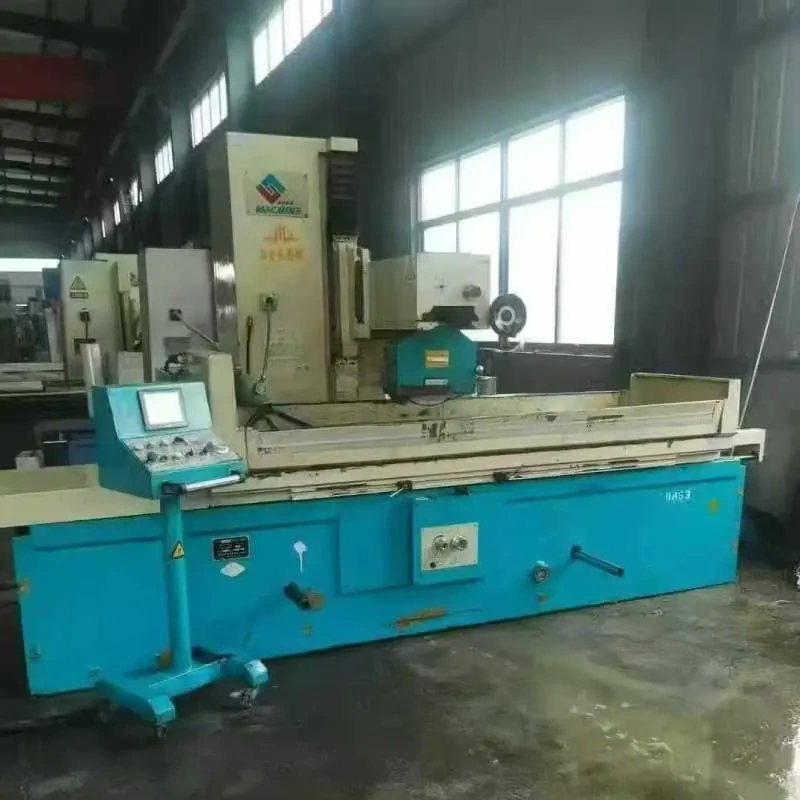

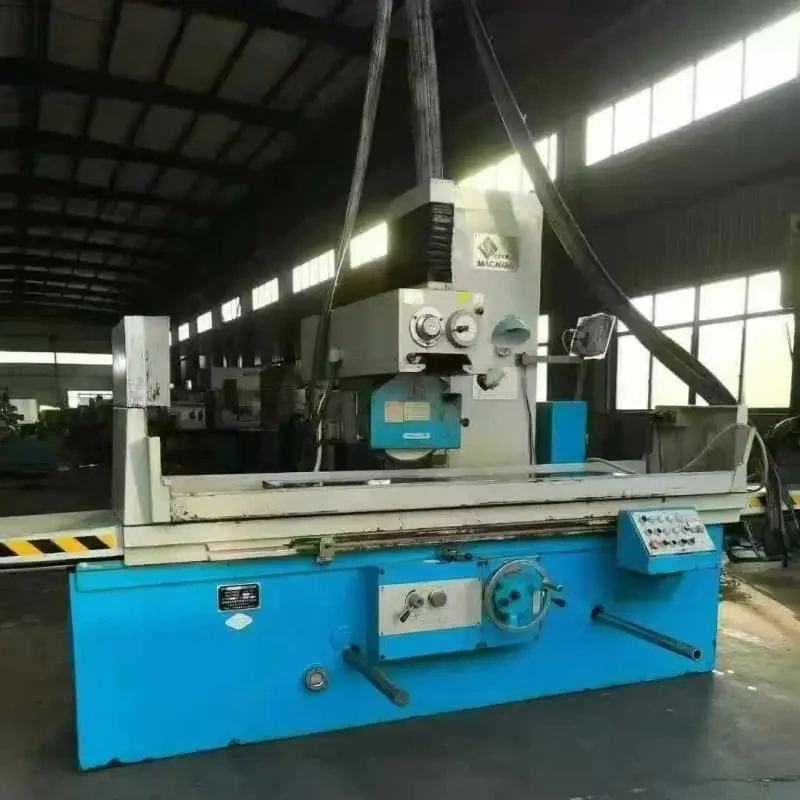

Used Horizontal Rectangular Table Surface Grinding Machine M7160, Table Size 600×1600mm
| Item | Specification |
|---|---|
| Model | M7160 Surface Grinding Machine |
| Table Working Size | 600 × 1600 mm |
| Condition | 85% New |
| Manufacture Year | 2013 |
| Net Weight | 7800 kg |
| Specification | Data |
|---|---|
| Model | M7160 Horizontal Rectangular Table Surface Grinding Machine |
| Table working size | 600 × 1600 mm |
| Max grinding height | 500 mm |
| Max longitudinal travel | 1700 mm |
| Max cross travel | 630 mm |
| Grinding wheel dimension | 400 × 50 × 127 mm |
| Main spindle motor power | 7.5 kW |
| Overall dimension(L×W×H) | 3400 × 2100 × 1900 mm |
| Net Weight | 7800 kg |
| Manufacture Year | 2013 |
| Machine condition | 85% new, fully inspected and running tested before shipment |
Advantages (English)
- M7160 heavy-duty horizontal surface grinder, large worktable for processing big mold plates and large mechanical workpieces.
- Hydraulic drive for table reciprocating movement, stepless speed regulation, stable operation.

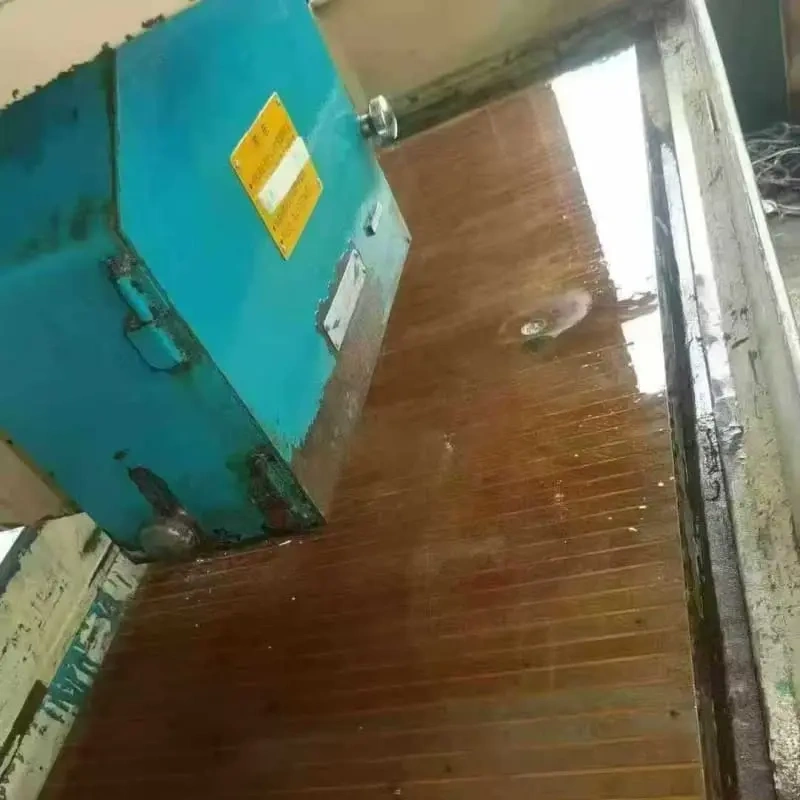

- Equipped with strong electromagnetic chuck, convenient clamping of ferromagnetic workpieces.
- High rigidity machine body, excellent flatness and high surface grinding precision.
- Easy manual vertical & cross feed adjustment, simple operation and maintenance.
- Widely applied in mold manufacturing, machinery processing, fixture and tool production.
- Machine fully cleaned, lubricated, inspected and running tested before delivery.
- Reliable large-size used surface grinder for precision flat surface machining.
