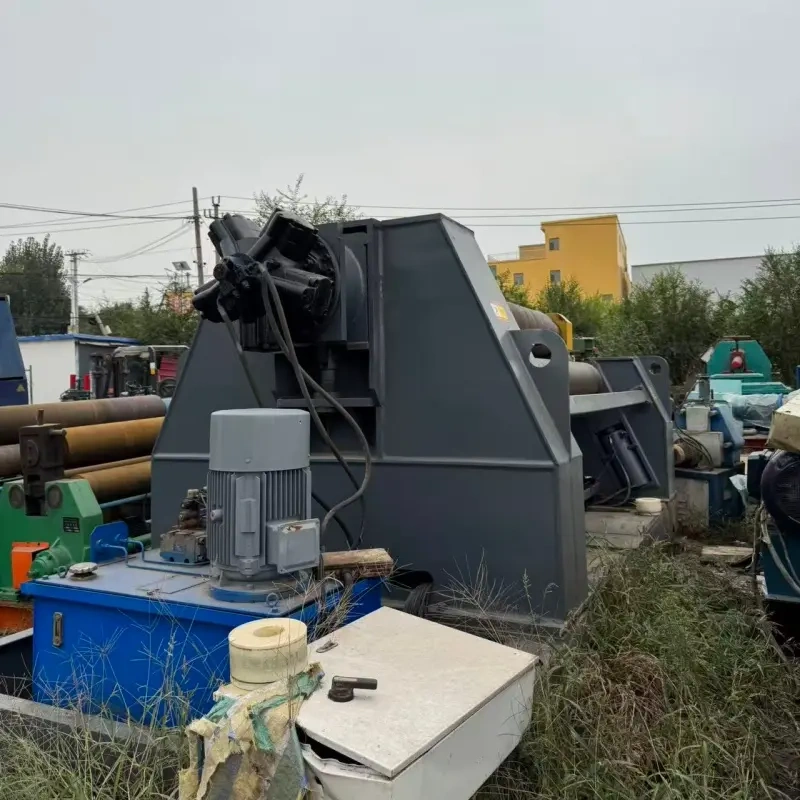

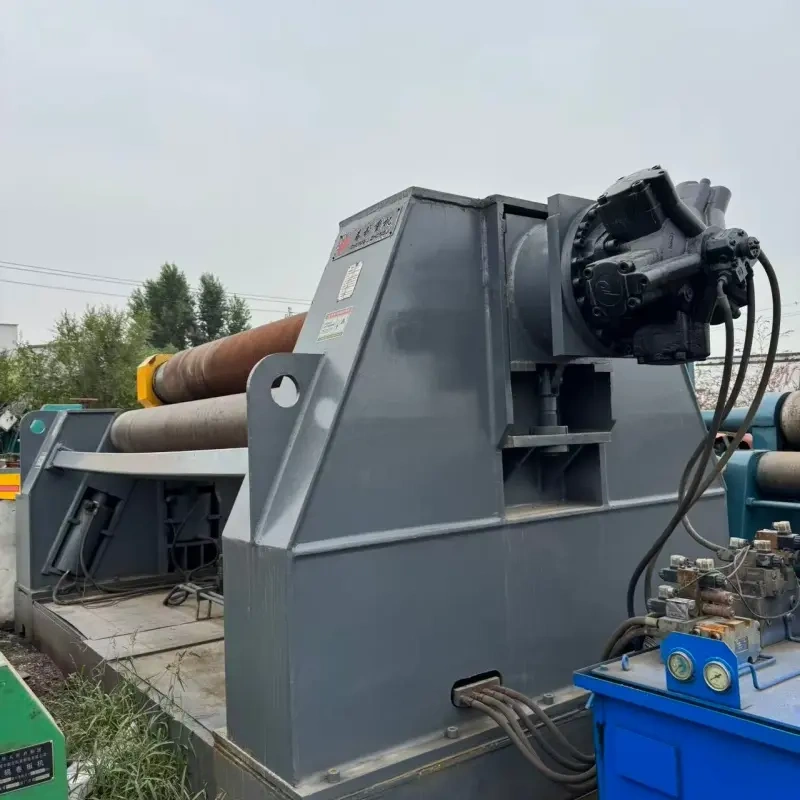

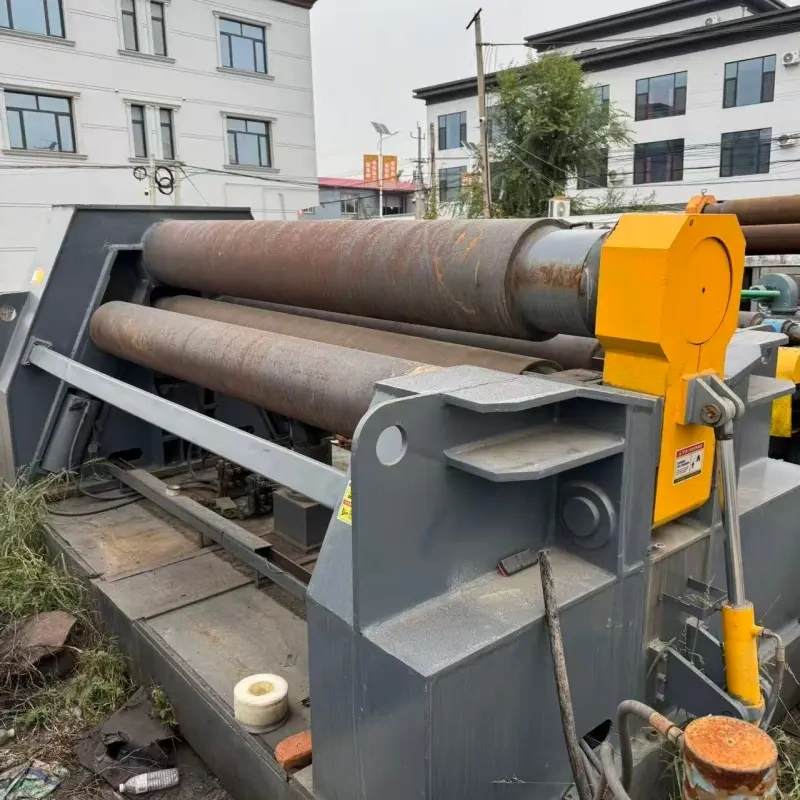

Used Hydraulic 4 Roller Bending Machine for Steel Plate Forming Work
- Model: Used 4‑Roller Plate Bending Machine
- Application: for rolling, bending and forming carbon steel, stainless steel plates
- Condition: All functions fully inspected and test‑run, good working condition
- Advantages: Four‑roller structure, one‑clamp pre‑bending, high forming precision
- Purchase Value: Cost‑effective second‑hand rolling machine, ready for shipment. Contact us for running video
Overview
The 4‑roller plate bending machine is hydraulic metal forming equipment. It can complete pre‑bending and rolling in one clamping, widely used in steel structure, pressure vessel and metal fabrication for rolling cylindrical and conical workpieces.
Key Features
- Four roller design, realize pre‑bending and rolling in single clamping
- Hydraulic drive, stable pressure, small straight edge residual of plate end
- Suitable for carbon steel, stainless steel and alloy sheet processing
- Reliable mechanical structure, convenient operation and maintenance
- Universal model, spare parts easy to obtain globally
Machine Condition
This is used equipment, fully inspected, cleaned and test‑run before shipment. All mechanical and hydraulic components work normally. We support video checking before loading.
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max plate thickness | 20 mm |
| Max plate width | 2000 mm | |
| Min rolling diameter | 1.2 × top roller diameter | |
| Roller | Top roller diameter | 280 mm |
| Side roller diameter | 240 mm | |
| Power | Main motor | 18.5 kW |
| Hydraulic motor | 7.5 kW | |
| Weight & Dimension | Net Weight | 12500 kg |
| Overall dimension(L×W×H) | 4200 × 1850 × 2100 mm | |
| Status | Working condition | Used, fully tested |
