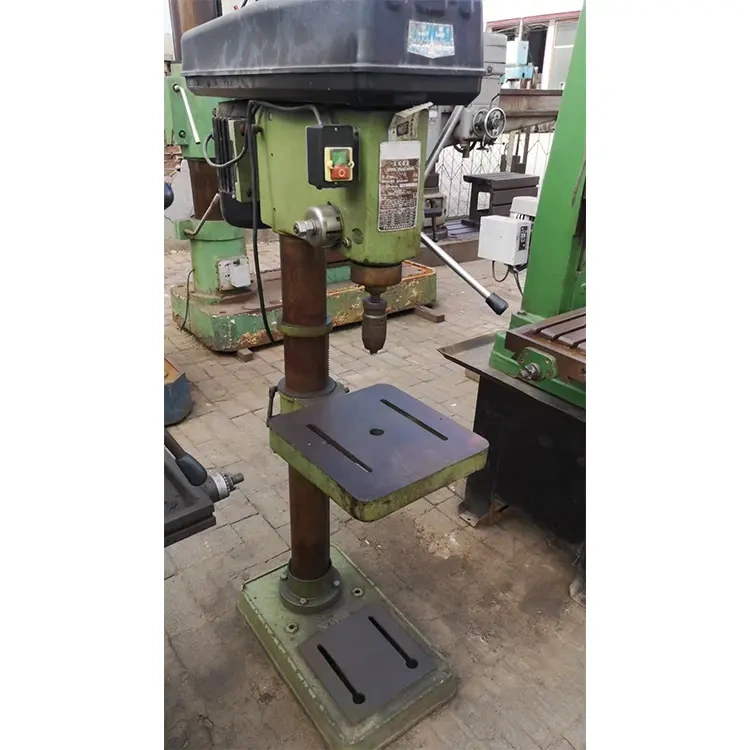

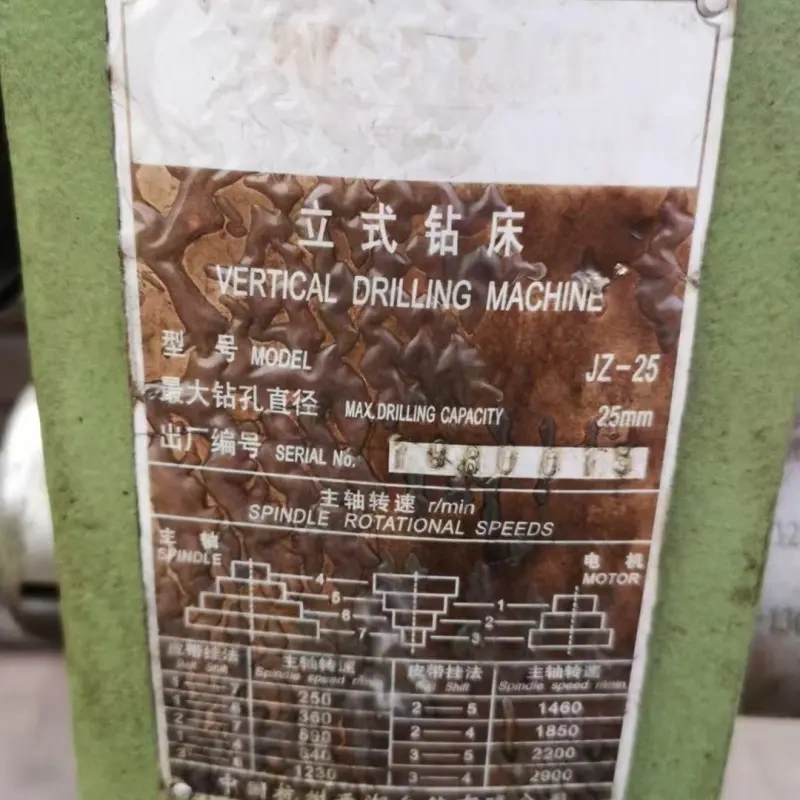

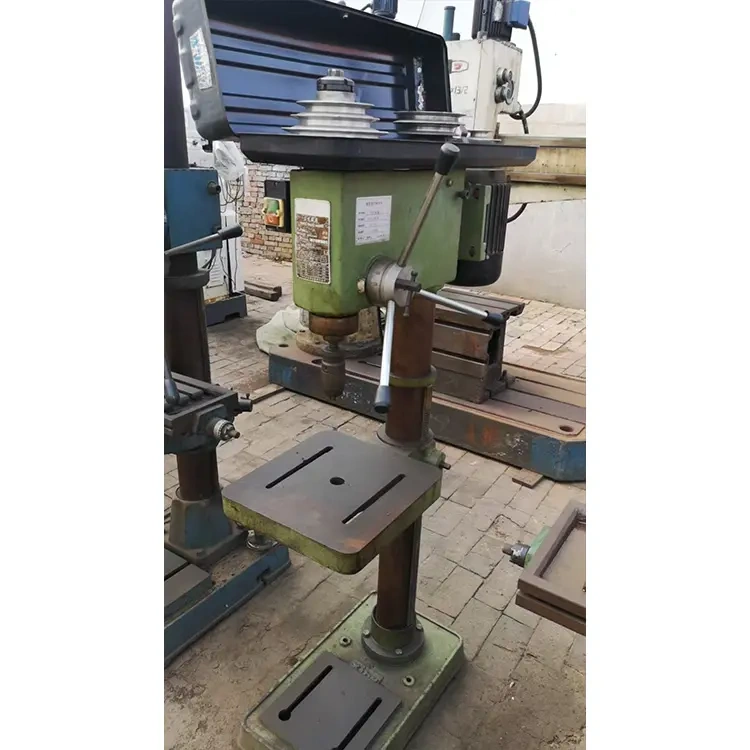

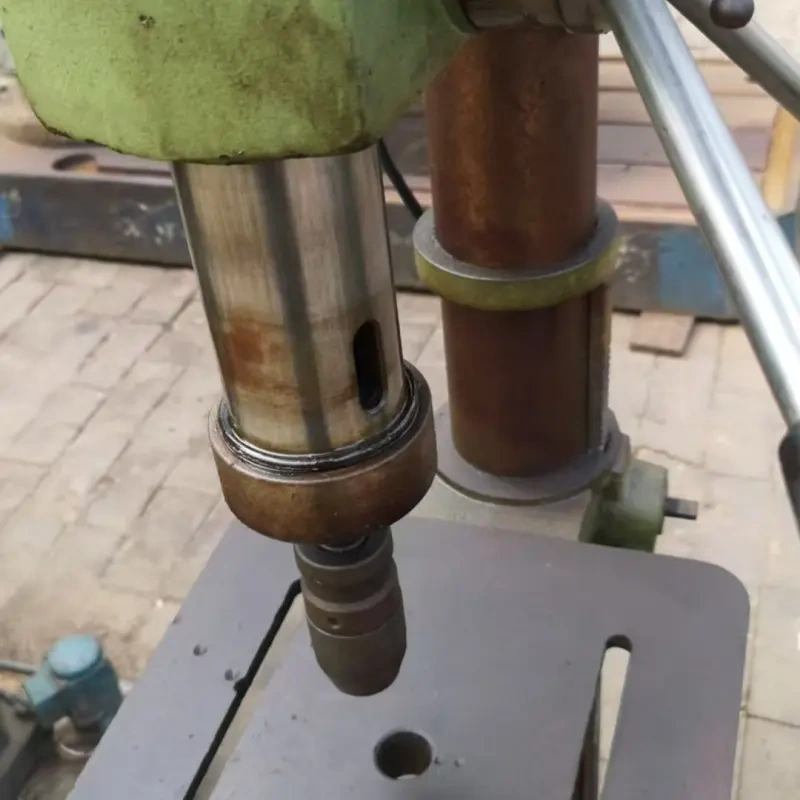

Used JZ-25 Vertical Drilling Machine, Max Drilling 25mm
Used JZ-25 Vertical Drilling Machine, Max Drilling 25mm - 图片 2
Used JZ-25 Vertical Drilling Machine, Max Drilling 25mm - 图片 3
Used JZ-25 Vertical Drilling Machine, Max Drilling 25mm - 图片 4

Used JZ-25 Vertical Drilling Machine, Max Drilling 25mm

Item Parameter
Model JZ-25 Vertical Drilling Machine
Max Drilling Diameter 25 mm
Condition 70%-80% New
Service Life Remaining 6-9 Years
Machine Weight Approx. 1200 kg
Get Free Quote
Chat on WhatsApp
SpecificationData
ModelJZ-25 Vertical Drilling Machine
Maximum drilling diameter25 mm
Max tapping diameterM12
Spindle stroke180 mm
Spindle speed range80 ~ 2200 r/min
Worktable size360 × 400 mm
Main motor power1.5 kW
Overall dimension(L×W×H)700 × 600 × 1800 mm
Net weightAbout 1200 kg
Machine condition70%-80% new, fully tested before delivery

Advantages
Stable cast iron frame, low vibration for precise drilling and tapping work.
Small footprint vertical design, easy to place and install in small workshops.
Wide spindle speed adjustment range, suitable for carbon steel, cast iron and aluminum parts.
Simple operation, low failure rate and economical maintenance cost.
Mature JZ-25 bench vertical drill model, spare parts easy to source globally.
Full function inspection before shipment, ready for production after setup.
Ideal for hardware fabrication, equipment maintenance and small batch processing.
