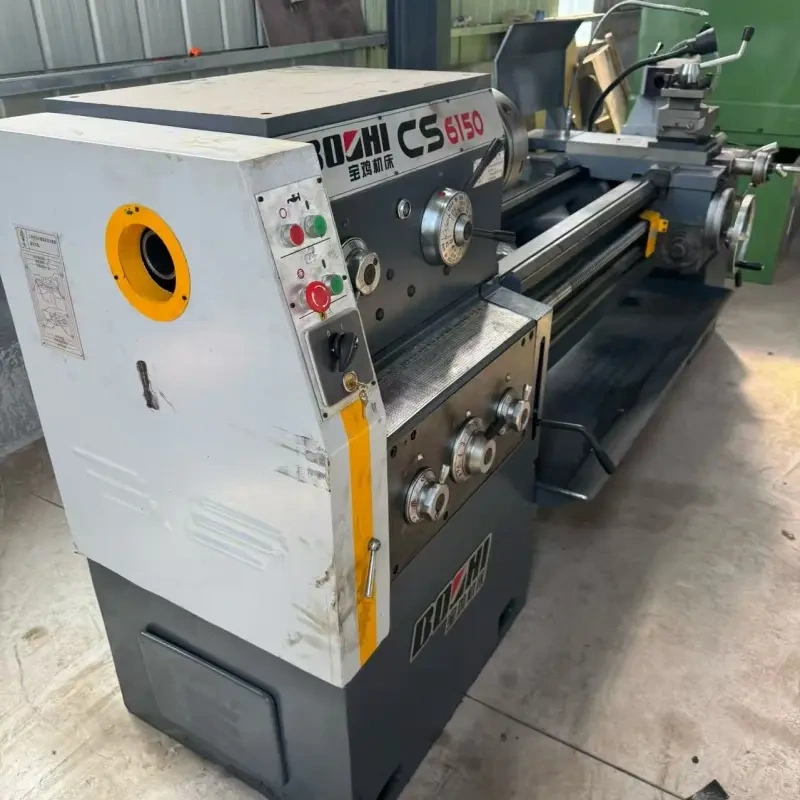

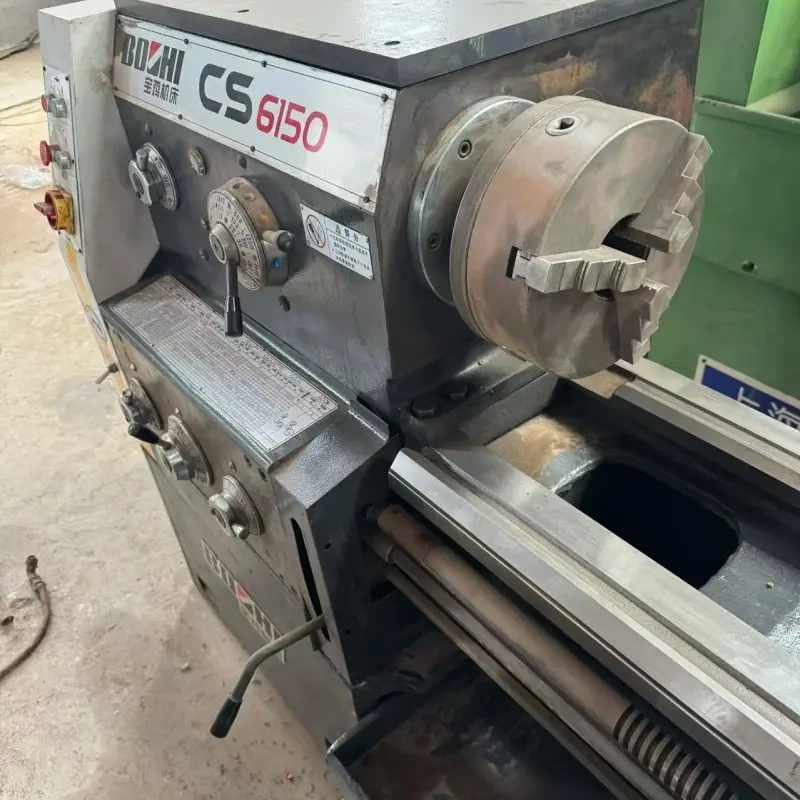

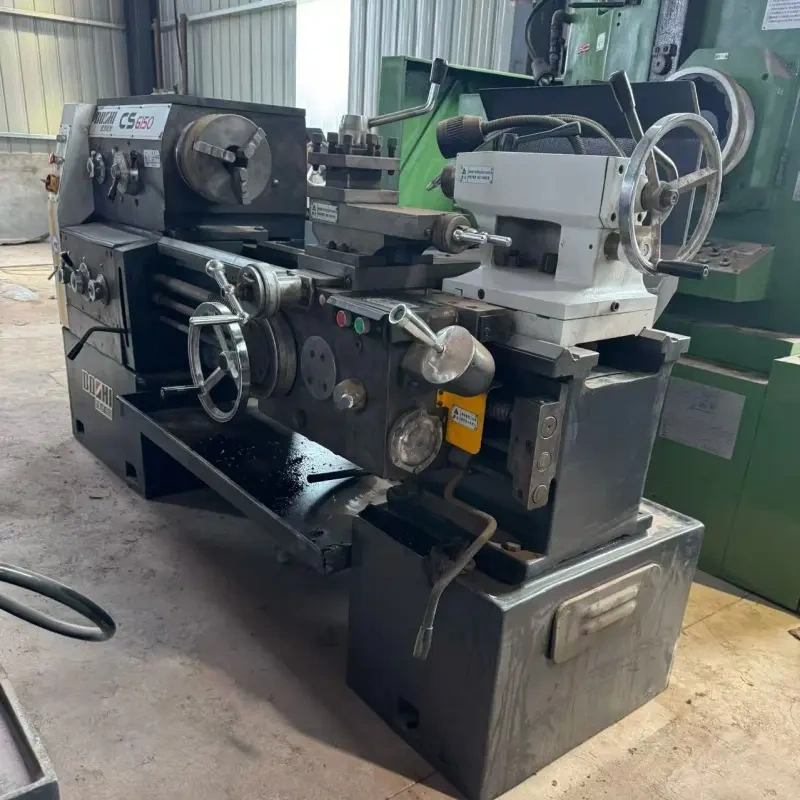

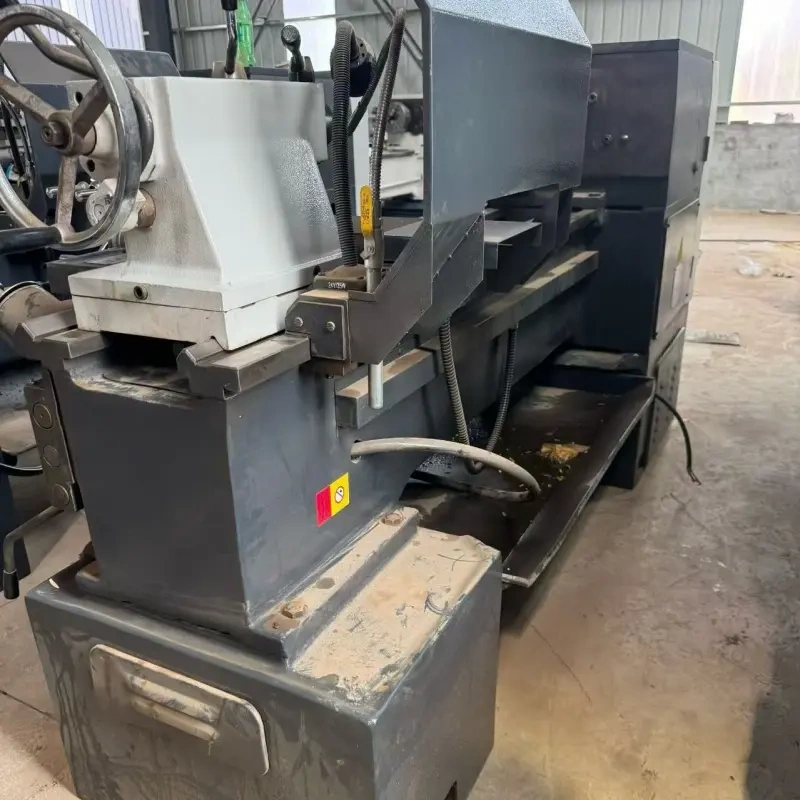

Used Lathe CS6150×2000mm for Metal Turning Work
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Max swing over bed | 500 mm |
| Max swing over carriage | 300 mm | |
| Max workpiece length (distance between centers) | 2000 mm | |
| Spindle | Spindle bore diameter | 52 mm |
| Spindle nose type | ISO 702/Ⅲ No.6 | |
| Spindle speed | 24 speeds, 9~1600 r/min | |
| Main motor power | 7.5 kW | |
| Tool Post | Tool station quantity | 4 positions |
| Tool shank size | 25×25 mm | |
| Top slide travel | 145 mm | |
| Cross slide travel | 300 mm | |
| Tailstock | Tailstock sleeve diameter | 75 mm |
| Tailstock sleeve travel | 150 mm | |
| Tailstock taper | MT5# | |
| Feed & Thread | Longitudinal feeds | 93 kinds |
| Cross feeds | 93 kinds | |
| Metric threads | 48 kinds | |
| Inch threads | 46 kinds | |
| Module threads | 42 kinds | |
| Diametral pitch threads | 45 kinds | |
| Cooling System | Coolant pump | 150W, 25L/min |
| Dimension & Weight | Overall dimension(L×W×H) | 3632 × 975 × 1230 mm |
| Net weight | 2350 kg | |
| Power Supply | Input power | 380V/50Hz (customizable) |
| Machining Accuracy | Machining precision | IT6~IT7 |
| Category | Item | Specification |
|---|---|---|
| Basic Parameter | Model | CS6150×2000 |
| Max swing over bed | 500 mm | |
| Max workpiece length (distance between centers) | 2000 mm | |
| Spindle bore | 52 mm | |
| Spindle speed range | 9~1600 r/min, 24 speeds | |
| Main motor power | 7.5 kW | |
| Net weight | 2350 kg | |
| Machine condition | Used, fully tested |
The CS6150 horizontal lathe is universal metal cutting equipment. It can process inner and outer cylindrical surfaces, conical surfaces, end faces, and cut metric, inch, module and diametral pitch threads. Widely applied in machinery manufacturing, pressure equipment, metal fabrication and vocational training for turning shaft and disc workpieces.
