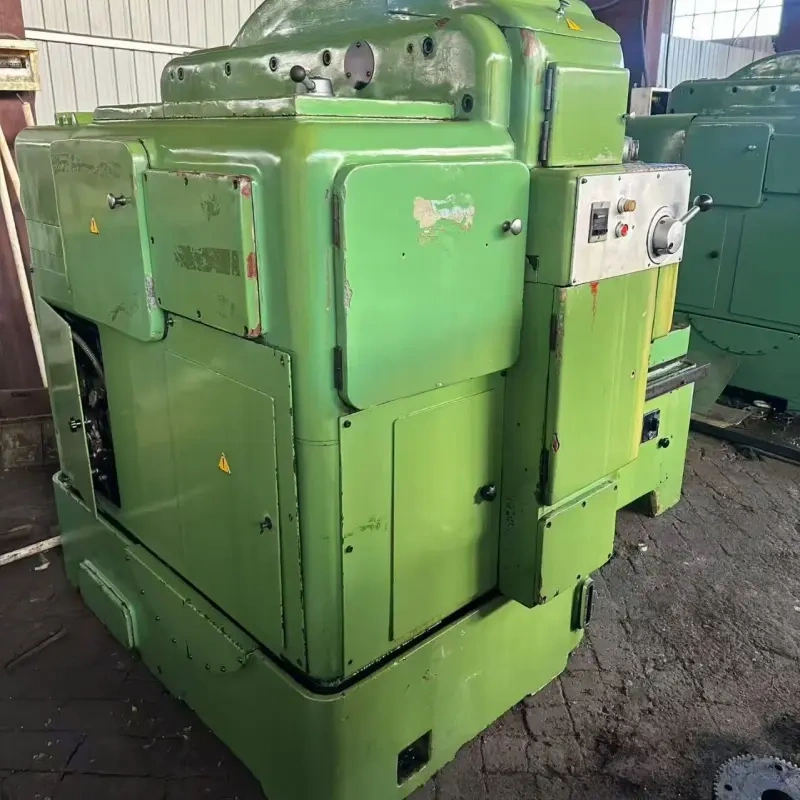

Used Tianjin YT2250 Spiral Bevel Gear Milling Machine, Max 500mm
| Item | Specification |
|---|---|
| Model | YT2250 Spiral Bevel Gear Milling Machine |
| Max Workpiece Diameter | 500 mm |
| Condition | 85% New |
| Service Years | 7 years |
| Machine Weight | 6800 kg |
| Specification | Data |
|---|---|
| Model | YT2250 Spiral Bevel Gear Milling Machine |
| Maximum workpiece diameter | 500 mm |
| Maximum machining module | 10 Module |
| Maximum tooth width | 90 mm |
| Shaft angle range | 50° ~ 130° |
| Main motor power | 5.5 kW |
| Overall dimension(L×W×H) | 2200 ×1600 ×1950 mm |
| Net Weight | 6800 kg |
| Machine condition | 85% new, fully inspected and tested before shipment |
Advantages
- YT2250 spiral bevel gear milling machine made in Tianjin, specially for processing spiral bevel gears and hypoid gears.
- Solid cast iron machine body, high rigidity and good vibration resistance during gear cutting.
- Precise transmission structure, stable operation and reliable tooth profile accuracy.
- Widely applied for gear manufacturing of automobile axles, reducers, agricultural machinery and engineering equipment.
- Flexible adjustment of shaft angle, meets different specifications of bevel gear production.
- Proven mature mechanical structure, supports long continuous working hours.
- Domestic spare parts are easy to purchase, low maintenance cost.
- The machine has been fully cleaned, lubricated, inspected and running tested before delivery.
- Cost-effective second-hand bevel gear processing machine for medium size gear workshop.
