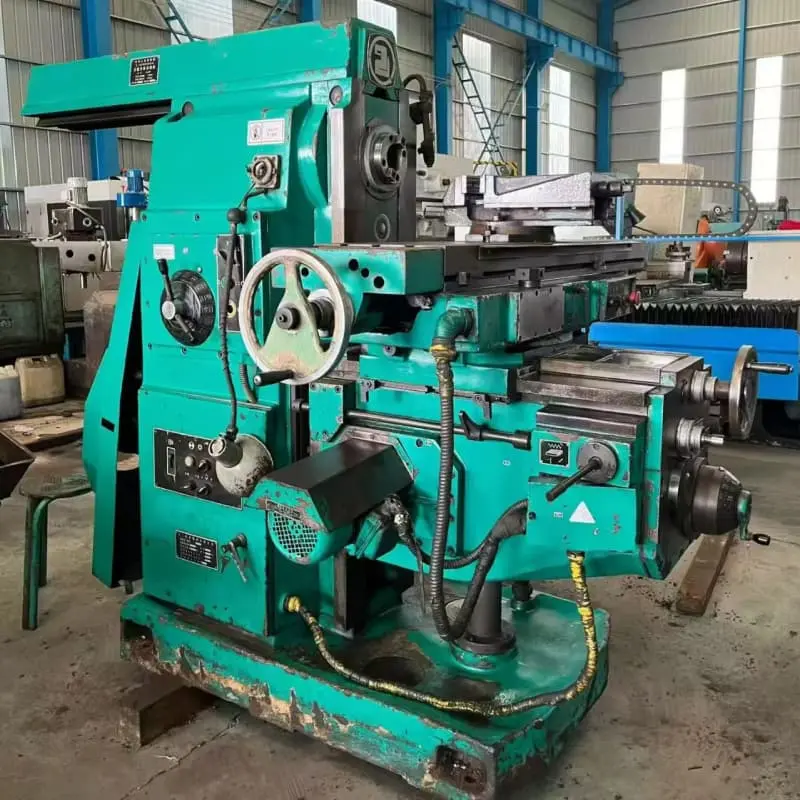

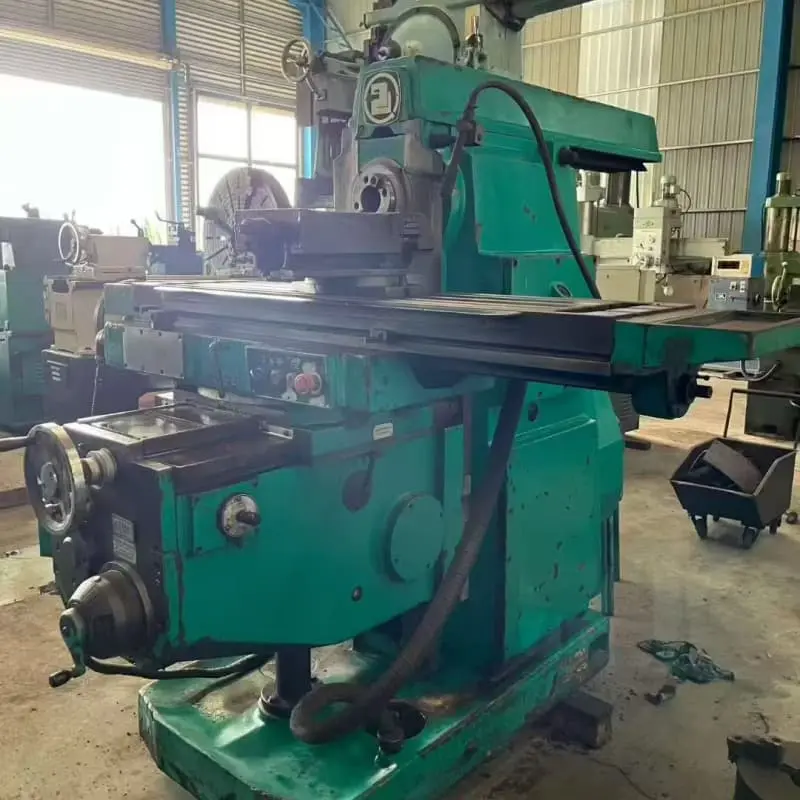

Used X6132C Horizontal Universal Milling Machine, Metal Milling Machine
| Item | Specification |
|---|---|
| Model | X6132C |
| Table size | 1320×320 mm |
| Max table travel X/Y/Z | 700/255/320 mm |
| Spindle speed range | 30~1500 r/min |
| Main motor | 7.5 kW |
| Category | Item | Specification |
|---|---|---|
| Work Table | Table size | 1320 × 320 mm |
| X-axis travel | 700 mm | |
| Y-axis travel | 255 mm | |
| Z-axis travel | 320 mm | |
| Max table load | 500 kg | |
| Spindle | Spindle taper | ISO 40 |
| Spindle speed range | 30 ~ 1500 r/min, 18 speeds | |
| Motor | Main motor power | 7.5 kW |
| Dimension & Weight | Overall dimension | 2290×1770×1610 mm |
| Net weight | 2850 kg |
This used X6132C universal milling machine is widely used for metal milling, slotting, drilling and boring. The machine is well maintained and fully tested, ready for workshop use. It can process flat surfaces, grooves, gears and complex profiles. Flexible multi-angle machining, solid cast iron body, reliable performance. Popular for machinery repair and metal fabrication workshops. We can run test before shipment.
