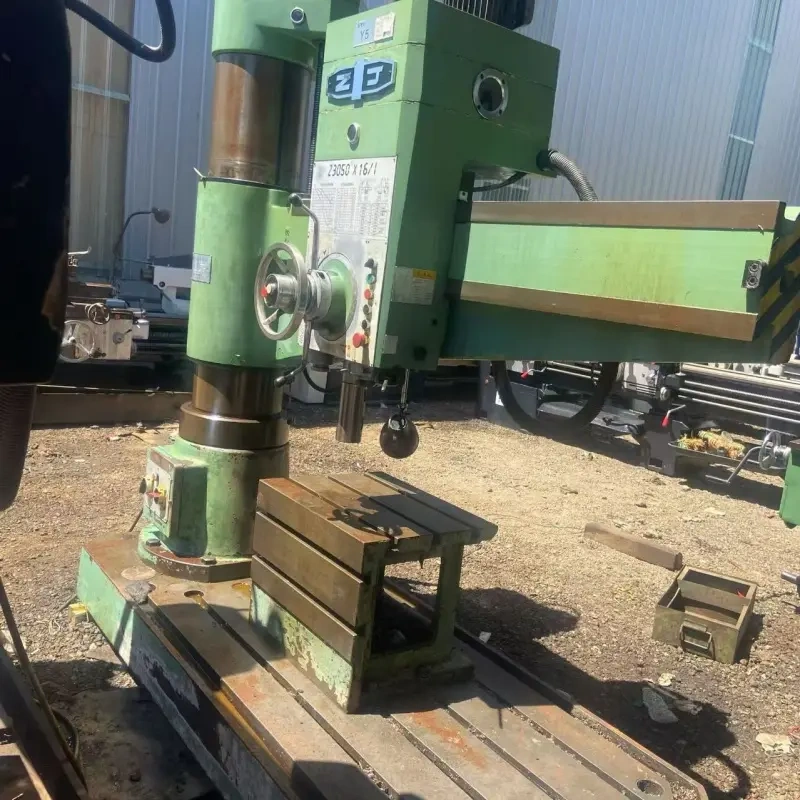

Used Z3050×16 Radial Drilling Machine, Max Drilling 50mm

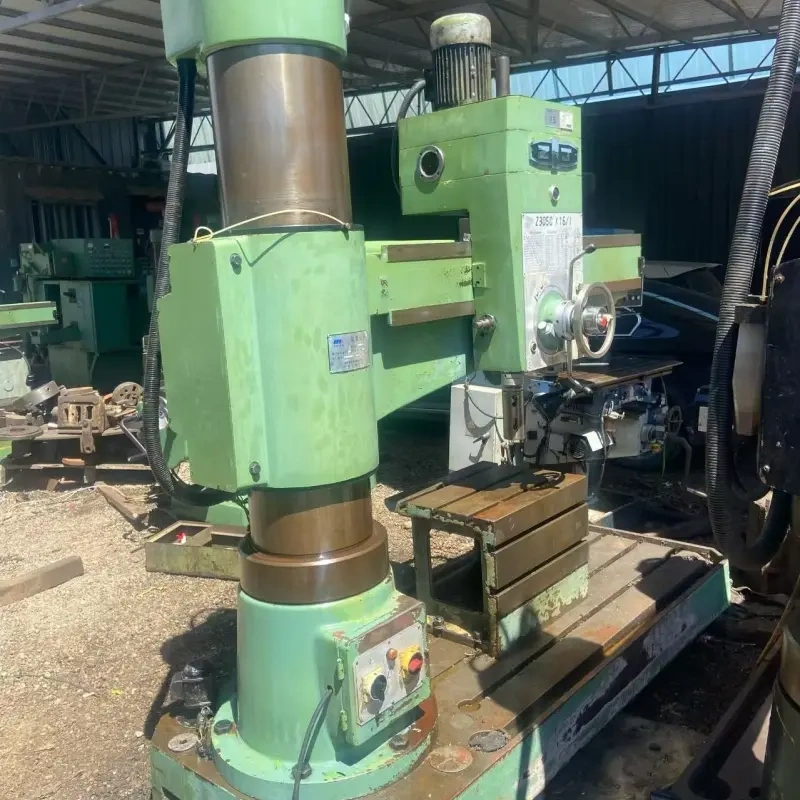

Used Z3050×16 Radial Drilling Machine, Max Drilling 50mm - 图片 2

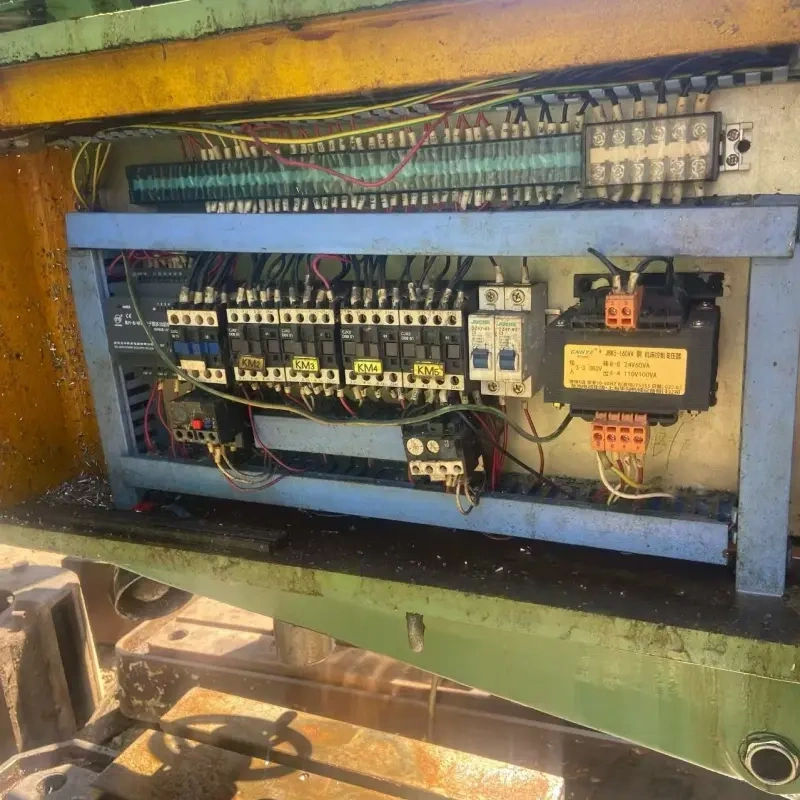

Used Z3050×16 Radial Drilling Machine, Max Drilling 50mm - 图片 3

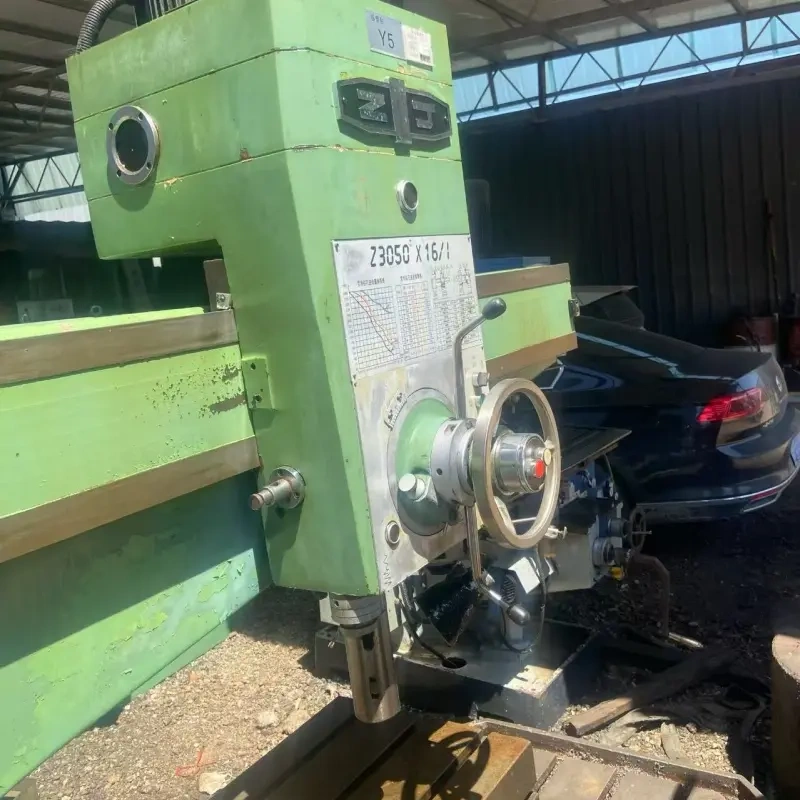

Used Z3050×16 Radial Drilling Machine, Max Drilling 50mm - 图片 4

Used Z3050×16 Radial Drilling Machine, Max Drilling 50mm

Item	Parameter
Model	Z3050×16 Radial Drilling Machine
Max Drilling Diameter	50 mm
Condition	70%-80% New
Service Life Remaining	6-9 Years
Machine Weight	Approx. 3500 kg

Specification	Data
Model	Z3050×16 Radial Drilling Machine
Maximum drilling diameter	50 mm
Max tapping diameter	M48
Radial travel of arm	1600 mm
Spindle stroke	315 mm
Spindle speed range	25 ~ 2000 r/min
Worktable size	500 × 630 mm
Main motor power	4 kW
Overall dimension(L×W×H)	2500 × 1000 × 2600 mm
Net weight	About 3500 kg
Machine condition	70%-80% new, fully tested and ready for work

Advantages
Heavy cast iron structure, high rigidity and stable cutting performance.
1600mm arm travel, flexible radial movement for large workpieces.
Multi-speed spindle, supports drilling, tapping, reaming and boring.
Hydraulic clamping for column, arm and spindle box, easy operation.
Classic reliable Z3050 model, spare parts easy to source globally.
Complete inspection before shipment, all functions work normally.
Widely used in mold, machinery and metal processing workshops.
