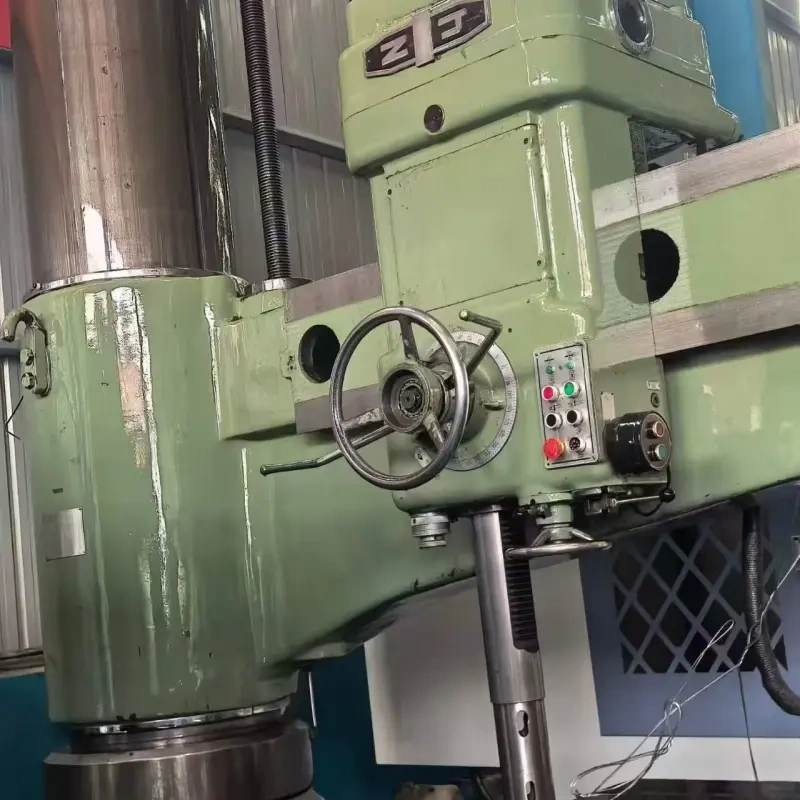

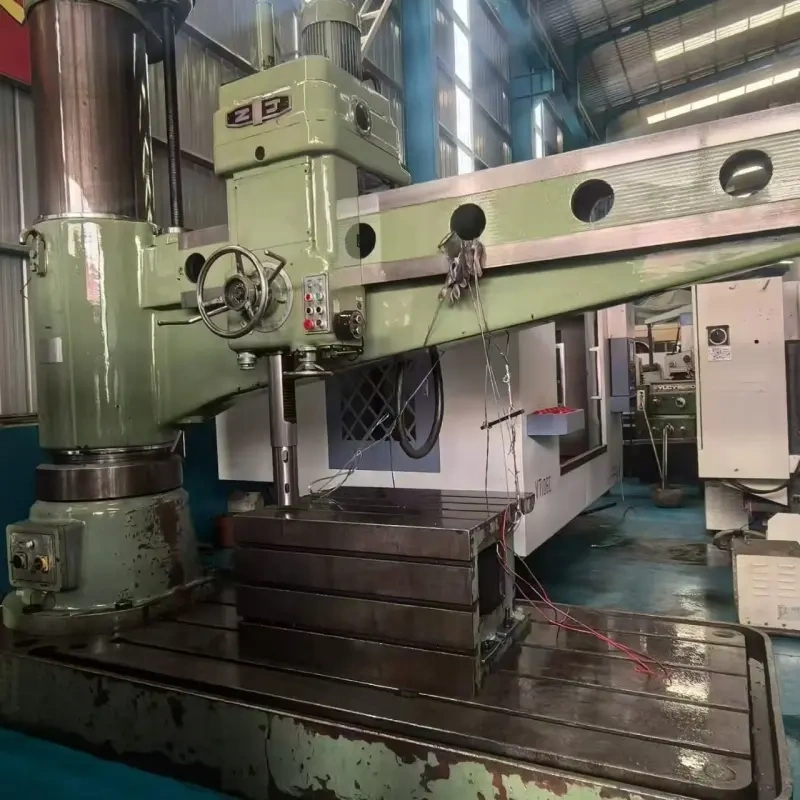

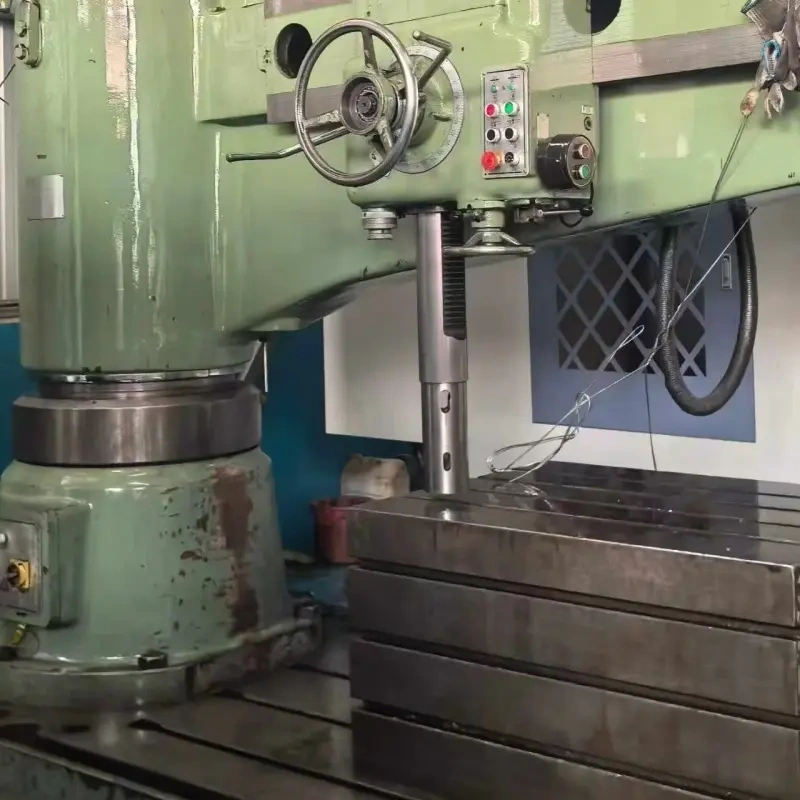

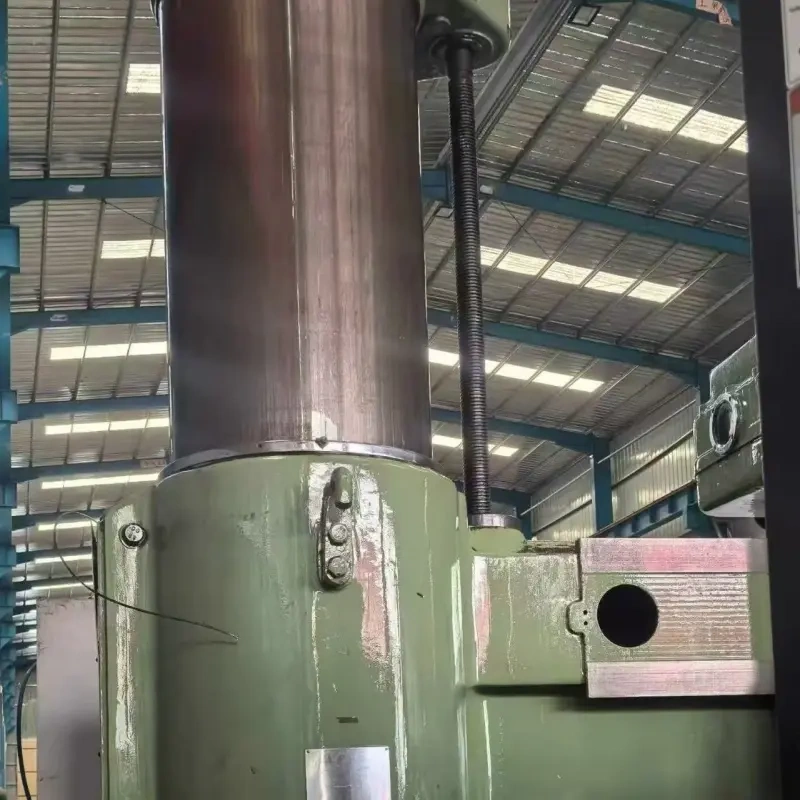

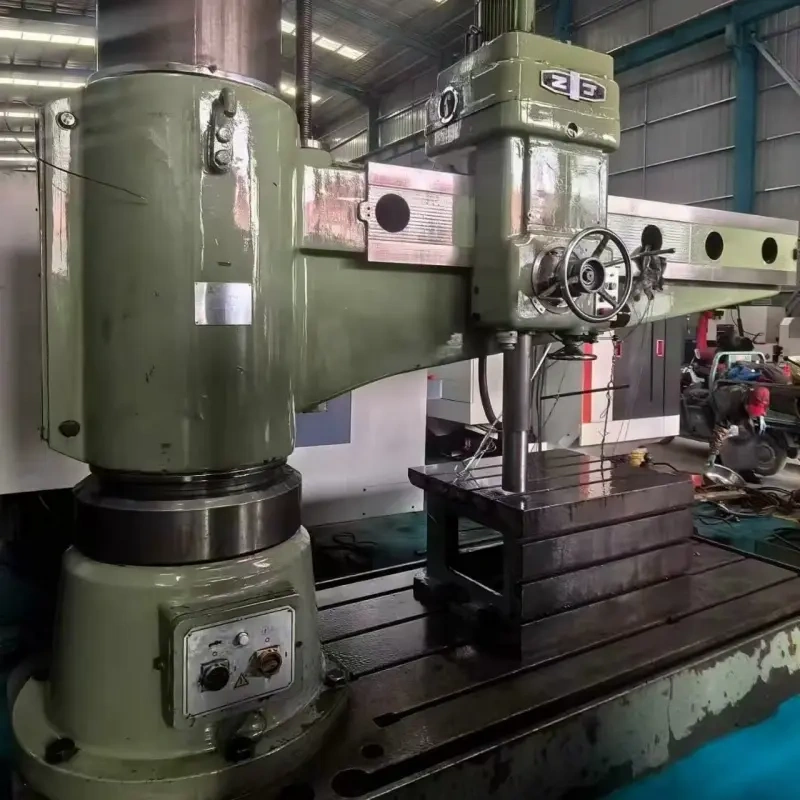

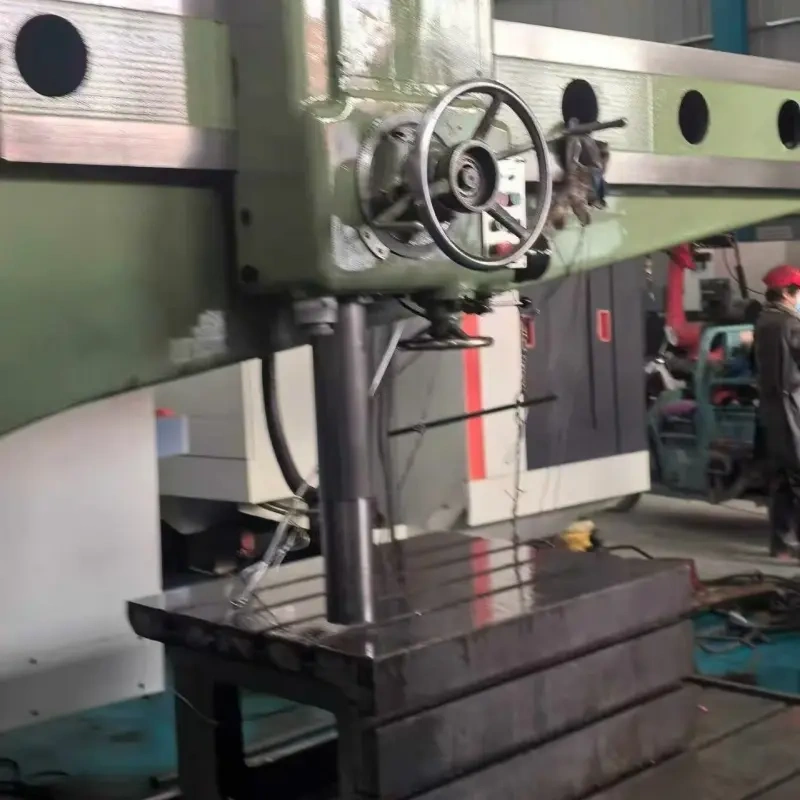

Used Z3080 Radial Drilling Machine
| Item | Parameter |
|---|---|
| Model | Z3080 Radial Drilling Machine |
| Max Drilling Diameter | 80 mm |
| Condition | 70%-80% New |
| Service Life | 7-10 Years |
| Machine Weight | Approx.5200 kg |
| Item | Description |
|---|---|
| Machine Name | Used Z3080 Radial Drilling Machine |
| Model | Z3080 |
| Max Drilling Diameter | 80 mm |
| Max Drilling Radius | 2500 mm |
| Spindle Taper | MT6 |
| Spindle Travel | 400 mm |
| Spindle Speed Range | 10-1250 rpm, 16 speeds |
| Feed Range | 0.03-3.0 mm/r, 12 speed levels |
| Main Motor Power | 7.5 kW |
| Net Weight | 5200 kg |
| Overall Dimension(L×W×H) | 3400 ×1300 ×3300 mm |
| Used Years | 7-10 Years |
| Condition | 70%-80% New, fully tested, good working condition |
| Stock Status | In Stock |
Advantages
- Heavy-duty cast iron structure, high rigidity, stable cutting performance for large workpieces.
- Hydraulic radial arm and hydraulic locking system, convenient to adjust working position.
- MT6 spindle taper, powerful clamping capacity, supports heavy drilling, tapping, reaming and boring.
- Wide spindle speed and feed adjustment range, suitable for various metal materials machining.
- Large working travel, ideal for big size parts without moving heavy workpiece.
- Reliable hydraulic and mechanical transmission, low failure rate and easy maintenance.
- Fully inspected before shipment, ready for heavy workshop production after simple installation.
