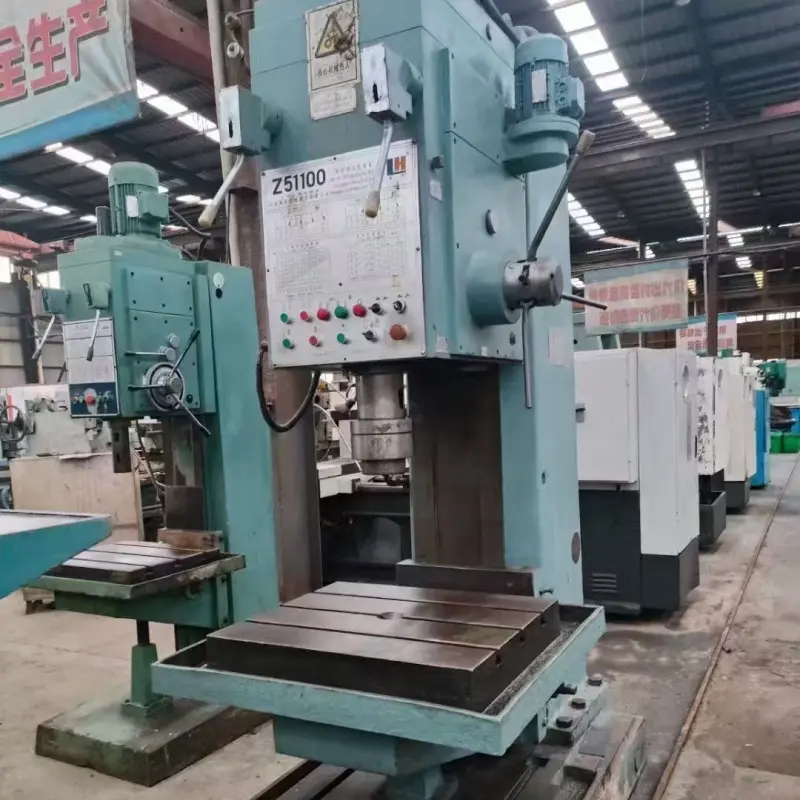

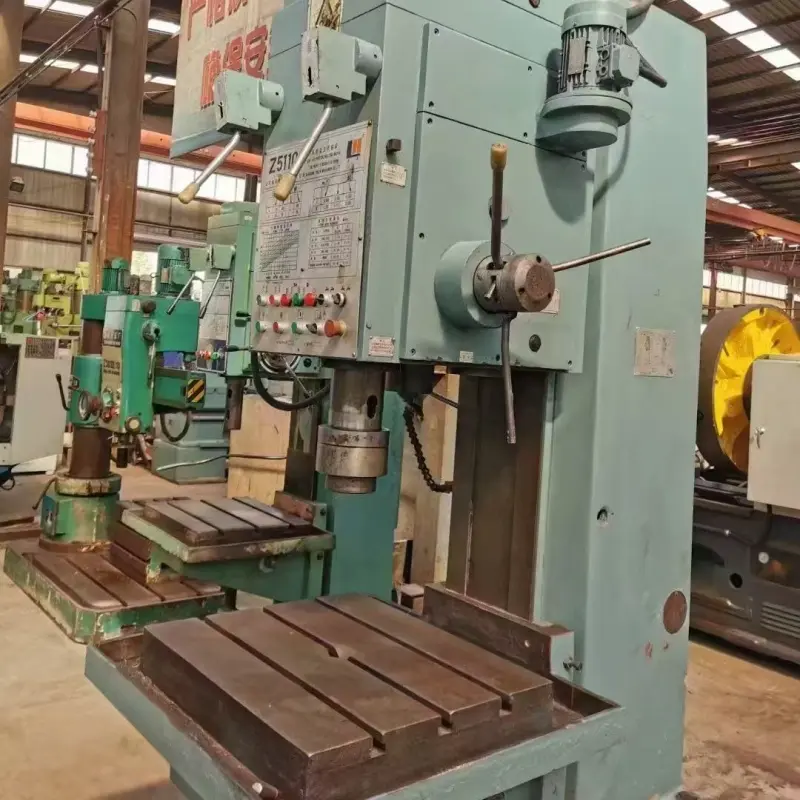

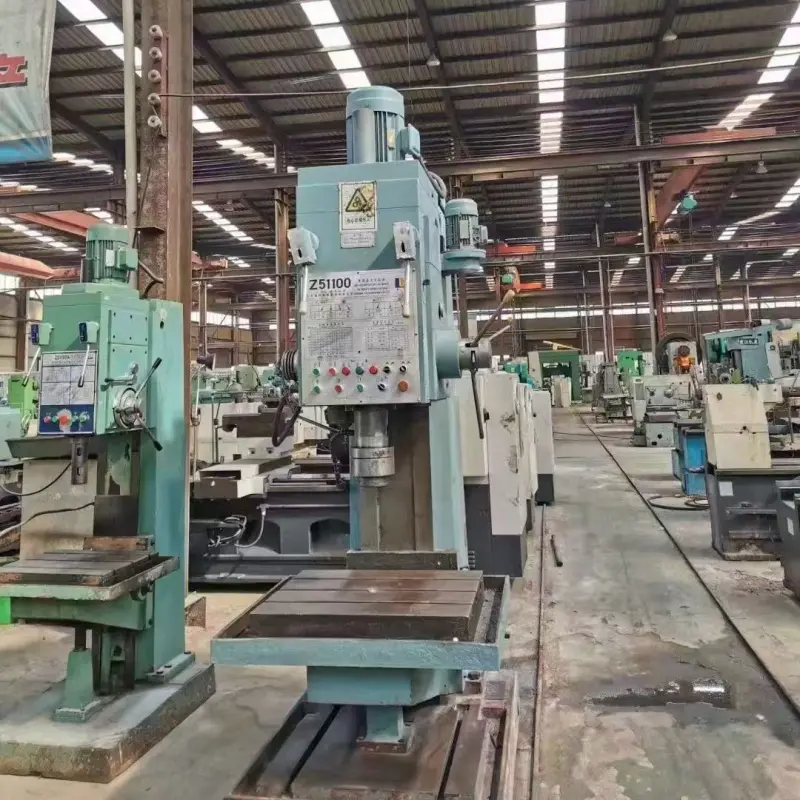

Used Z51100 Vertical Drilling Machine, Max Drilling 100mm

Used Z51100 Vertical Drilling Machine, Max Drilling 100mm - 图片 2

Used Z51100 Vertical Drilling Machine, Max Drilling 100mm

Item	Parameter
Model	Z51100 Vertical Drilling Machine
Max Drilling Diameter	100 mm
Condition	70%-80% New
Service Life Remaining	6-9 Years
Machine Weight	Approx. 5200 kg

Specification	Data
Model	Z51100 Vertical Drilling Machine
Maximum drilling diameter	100 mm
Max tapping diameter	M56
Spindle stroke	450 mm
Spindle speed range	16 ~ 800 r/min
Worktable size	900 × 1000 mm
Main motor power	11 kW
Overall dimension(L×W×H)	1450 × 1200 × 2900 mm
Net weight	About 5200 kg
Machine condition	70%-80% new, fully inspected for heavy-duty machining

Advantages
Extra heavy-duty cast iron construction, ultra-high rigidity for deep large-hole drilling on thick steel and heavy castings.
Powerful 11kW main motor, maintains stable cutting torque under extreme heavy load.
Wide multi-range spindle speed adjustment, capable of drilling, tapping, reaming, counterboring and spot-facing.
Oversized worktable to accommodate large and heavy workpieces, ideal for heavy industry parts.
Z51100 is a well-known heavy vertical drill model, spare parts are globally available.
Robust gear transmission system, low failure rate and suitable for long continuous workshop operation.
Full functional running test before shipment to guarantee reliable performance.
Widely applied in heavy machinery, metallurgical equipment, mining machinery and large mold workshops.

Trusted by Machinery Buyers Worldwide

A Glance of Recent-Delivery

Thank you to every customer who has chosen and trusted Onzo; with a profound sense of mission and responsibility, and relying on our professional service capabilities, we ensure that your machines and equipment can be successfully delivered to customers all over the world, providing unparalleled economy and convenience to global customers.
