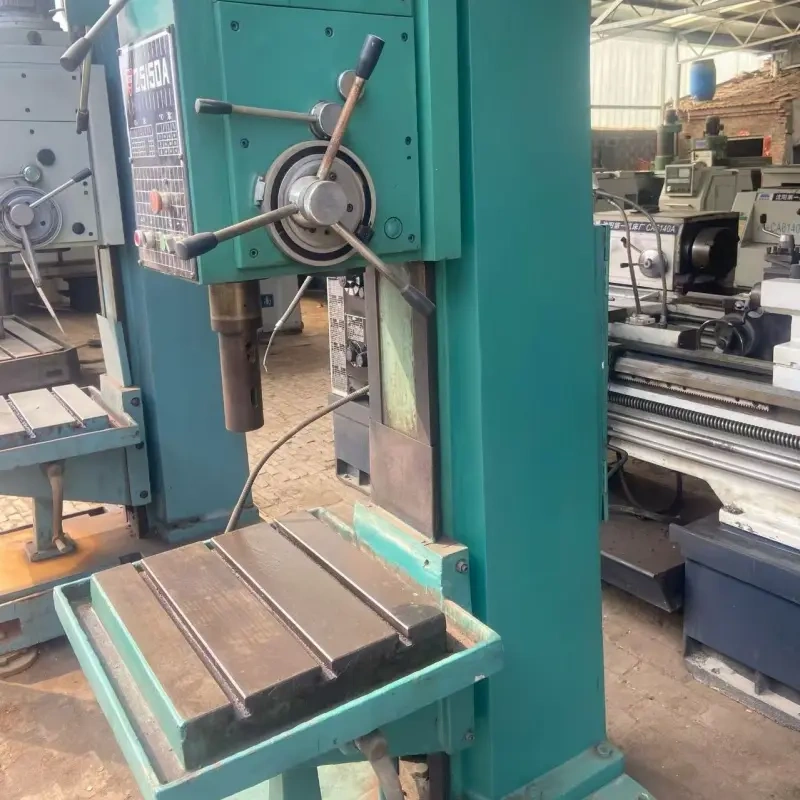

Used Z5150A Square-column Vertical Drilling Machine, Max Drilling Diameter 50mm
| Item | Parameter |
|---|---|
| Model | Z5150A Vertical Drilling Machine |
| Max Drilling Diameter | 50 mm |
| Condition | 70%-80% New |
| Service Life | 6-9 Years |
| Machine Weight | Approx.1600 kg |
| Item | Description |
|---|---|
| Machine Name | Used Z5150A Square-column Vertical Drilling Machine |
| Model | Z5150A |
| Max Drilling Diameter | 50 mm |
| Spindle Taper | MT5 |
| Spindle Travel | 300 mm |
| Spindle Speed Range | 22.4-2000 rpm, 16 speeds |
| Feed Range | 0.04-2.0 mm/r, 9-speed |

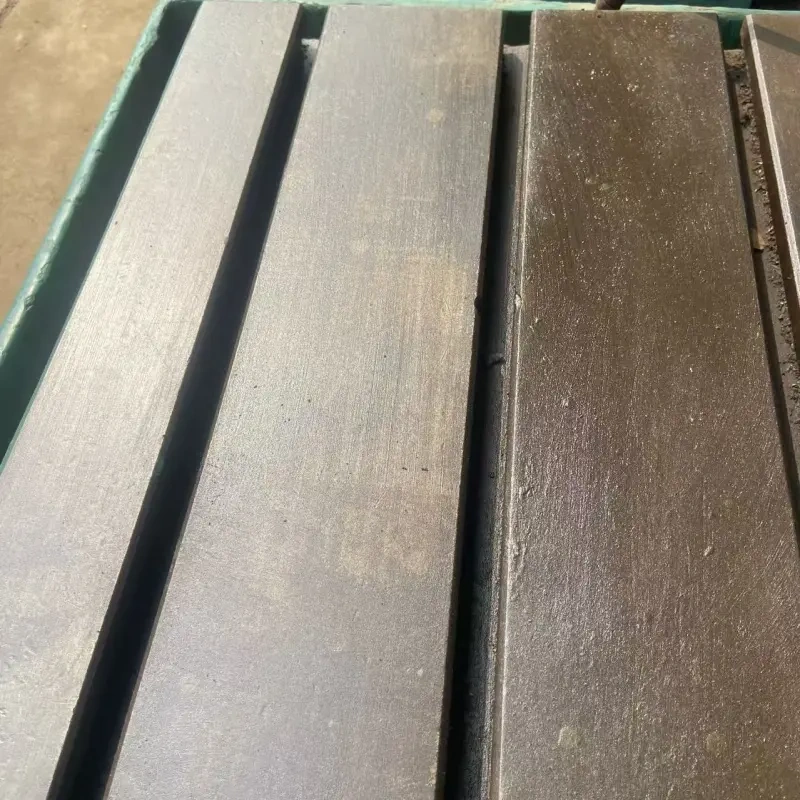

| Worktable Size | 630 × 500 mm |
| Main Motor Power | 4 kW |
| Net Weight | 1600 kg |
| Overall Dimension(L×W×H) | 1150 × 950 × 2550 mm |
| Used Years | 6-9 Years |
| Condition | 70%-80% New, fully tested, good working condition |
| Stock Status | In Stock |
Advantages
Square cast iron column structure, high rigidity and stable cutting performance for heavy drilling work.
Wide spindle speed and feed adjustment range, supports drilling, reaming, tapping and boring operations.
MT5 spindle taper, strong clamping force, compatible with various standard drill bits and cutting tools.
Large solid worktable, convenient fixture installation for different metal workpieces.
Mature mechanical transmission system, low failure rate and simple daily maintenance.
4kW main motor provides sufficient power for heavy-duty metal machining.
Fully inspected before shipment, ready to operate after simple installation in workshop.
