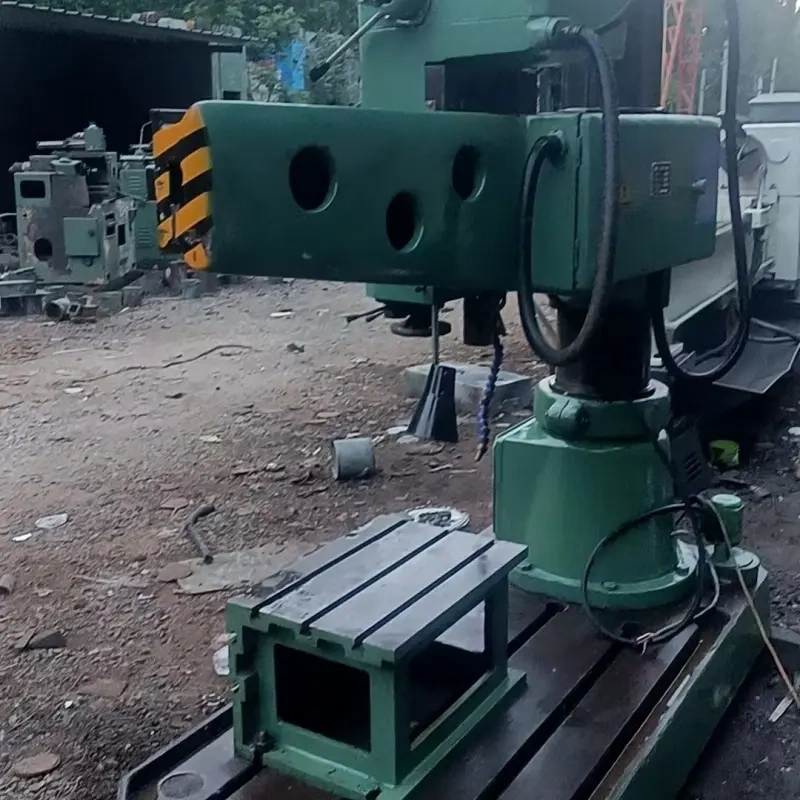

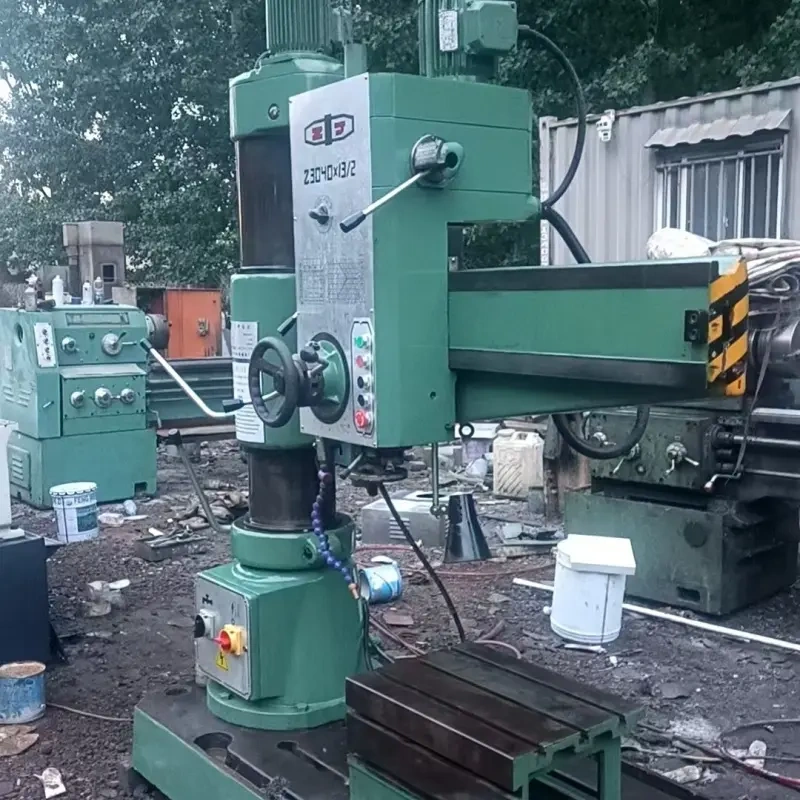

Z3040×13/2 Radial Drilling Machine
| Item | Specification |
|---|---|
| Model | Z3040×13/2 |
| Max. Drilling Capacity (Steel) | 40 mm |
| Max radial reach | 1300 mm |
| Spindle Taper | MT4 |
| Spindle Travel | 220 mm |
| Main Motor Power | 3.0 kW |
| Net Weight | Approx. 1750 kg |
| Item | Specification |
|---|---|
| Model | Z3040×13/2 |
| Max. Drilling Diameter (Steel) | 40 mm |
| Spindle center to column surface | 370–1150 mm |
| Spindle nose to worktable | 350–1250 mm |
| Spindle Travel | 220 mm |
| Spindle Taper | Morse Taper 4 (MT4) |
| Spindle Speed Range | 34–1280 r/min, 16 steps |
| Spindle Feed Range | 0.04–3.20 mm/r, 12 steps |
| Radial Arm Rotation | 360° full rotation |
| Main Motor | 3.0 kW |
| Arm Lifting Motor | 0.75 kW |
| Worktable Size | 350 × 520 mm |
| Overall Dimension(L×W×H) | 1920 × 820 × 2360 mm |
| Net Weight | About 1750 kg |
Advantages
- 360° rotatable radial arm, flexible positioning for large workpieces; no need to move heavy parts.
- Z3040×13/2 upgraded locking structure, more stable clamping than standard Z3040×13.
- Multiple spindle speeds and feed rates, supports drilling, reaming, tapping and boring for different metals.
- Mechanical locking for arm, headstock and column, strong rigidity during heavy cutting.
- Easy operation & low maintenance, popular in machinery workshops, mold shops and equipment repair.
- Mature classic model, good global second-hand market circulation.
