Z5140B Square‑column Vertical Drilling Machine
| Item | Specification |
|---|---|
| Model | Z5140B Vertical Drilling Machine |
| Max Drilling Diameter | 40 mm |
| Spindle Taper | MT4 |
| Spindle Travel | 250 mm |
| Spindle Speed Range | 31.5‑1400 rpm, 12 speeds |
| Feed Range | 0.056‑1.80 mm/r, 9‑speed |
| Worktable Size | 560 × 480 mm |
| Main Motor Power | 3 kW |
| Net Weight | 1250 kg |
| Overall Dimension(L×W×H) | 1090 × 905 × 2465 mm |
| Condition | Used, fully tested, good working condition |
| Category | Item | Specification |
|---|---|---|
| Machining Capacity | Maximum drilling diameter | 40 mm |
| Spindle end to table max distance | 750 mm | |
| Spindle travel | 250 mm | |
| Spindle box manual travel | 200 mm | |
| Spindle System | Spindle taper | MT No.4 |
| Spindle speed range | 31.5‑1400 rpm, 12‑speed | |
| Spindle torque | 350 N·m | |
| Max feed thrust | 16000 N | |
| Automatic Feed | Feed range | 0.056‑1.80 mm/r |
| Feed speeds | 9 grades | |
| Worktable | Table dimension | 560 × 480 mm |
| Table longitudinal & cross travel | 300 mm | |
| Power | Main motor power | 3 kW |
| Weight & Size | Net weight | 1250 kg |
| Overall size(L×W×H) | 1090 × 905 × 2465 mm |

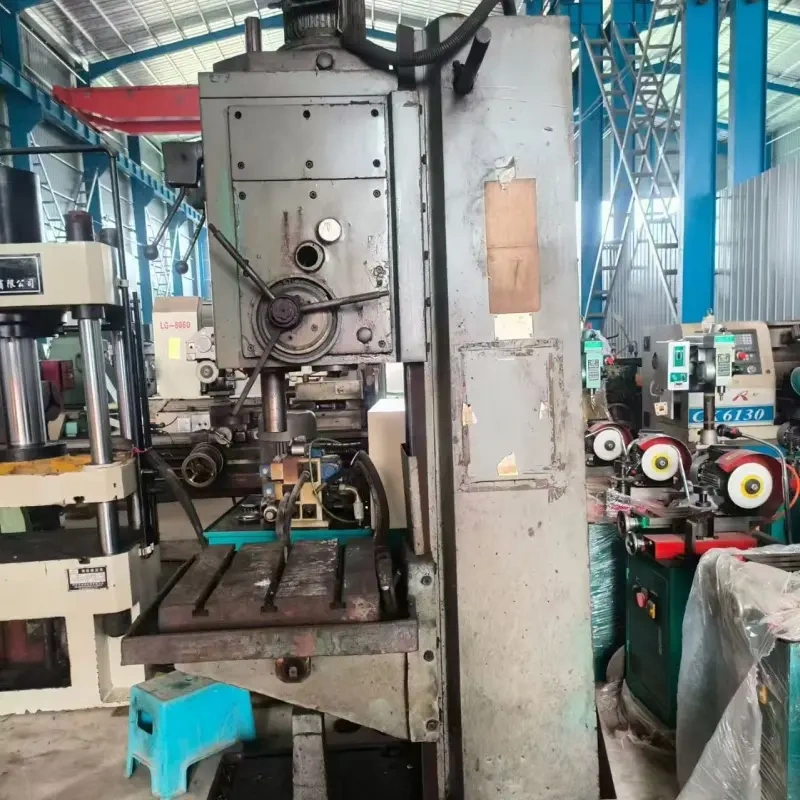

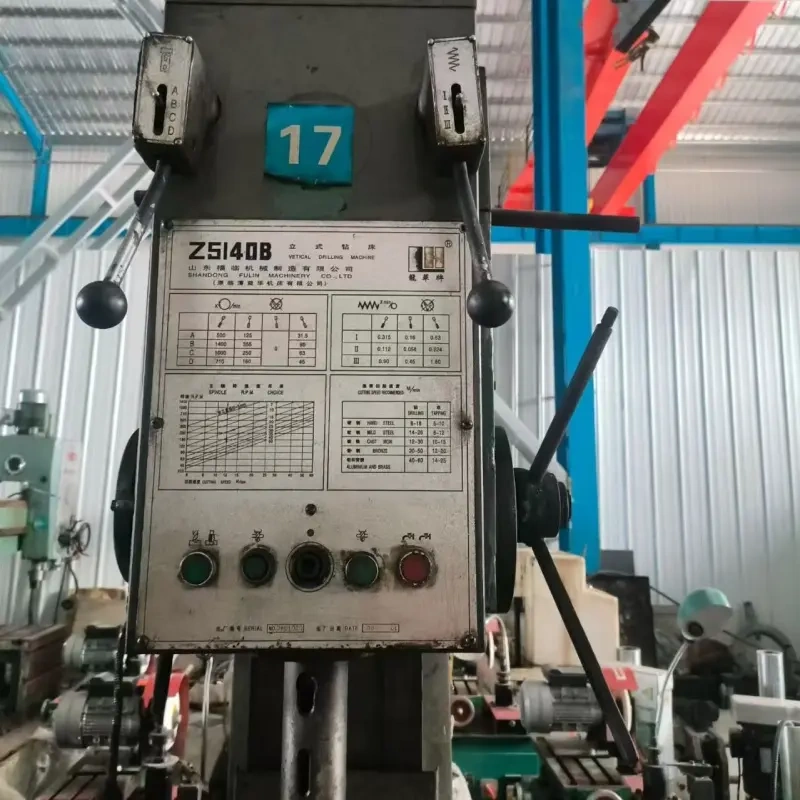

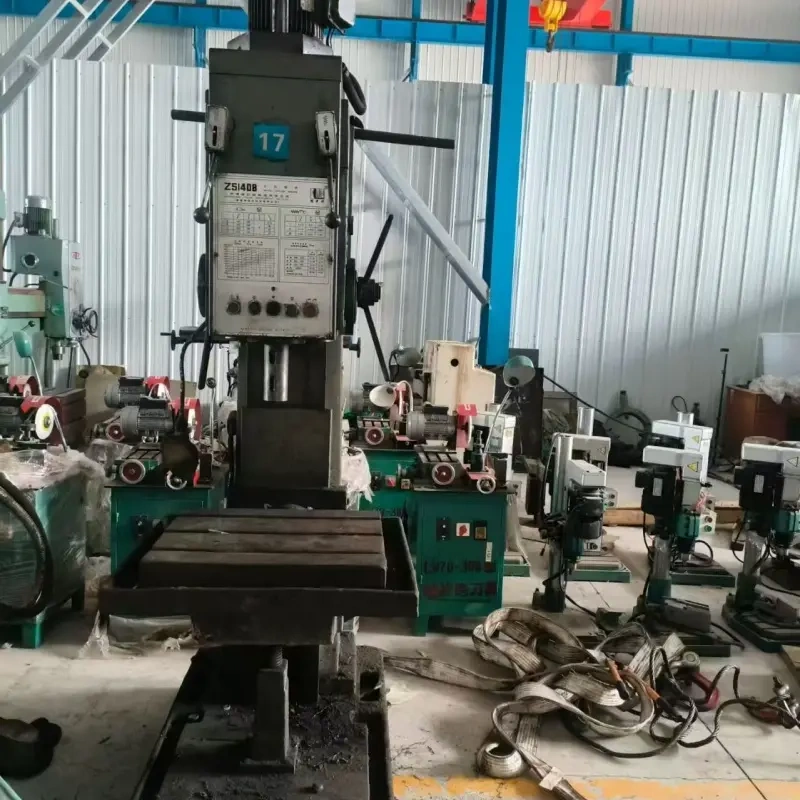

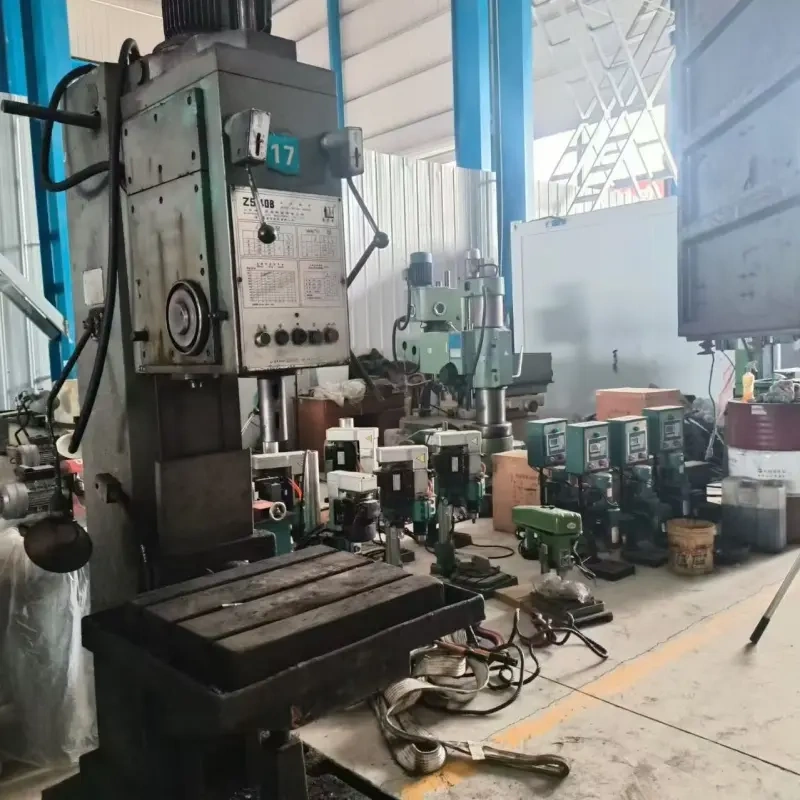

This used Z5140B square‑column vertical drill is a classic heavy‑duty industrial drilling equipment. It can perform drilling, reaming, boring, counter‑sinking and tapping operations on metal workpieces. Equipped with automatic spindle feed and multi‑speed adjustment, it is widely used in machinery workshops, maintenance factories and batch‑production workshops. The machine has been inspected and run‑tested before shipment, stable performance and reliable quality.
Advantages
- Square‑column rigid cast‑iron structure, strong stability, suitable for heavy‑load drilling and tapping work.
- 12‑level spindle speed and 9‑level automatic feed, flexible to process steel, cast iron, aluminum and other metal materials.
- Large‑size cross‑sliding worktable, convenient to adjust workpiece position, high operation flexibility.
- Automatic feed function reduces manual labor, improves working efficiency for batch jobs.
- Mature and well‑known model, spare‑parts supply is easy to get, low maintenance cost and long service life.
