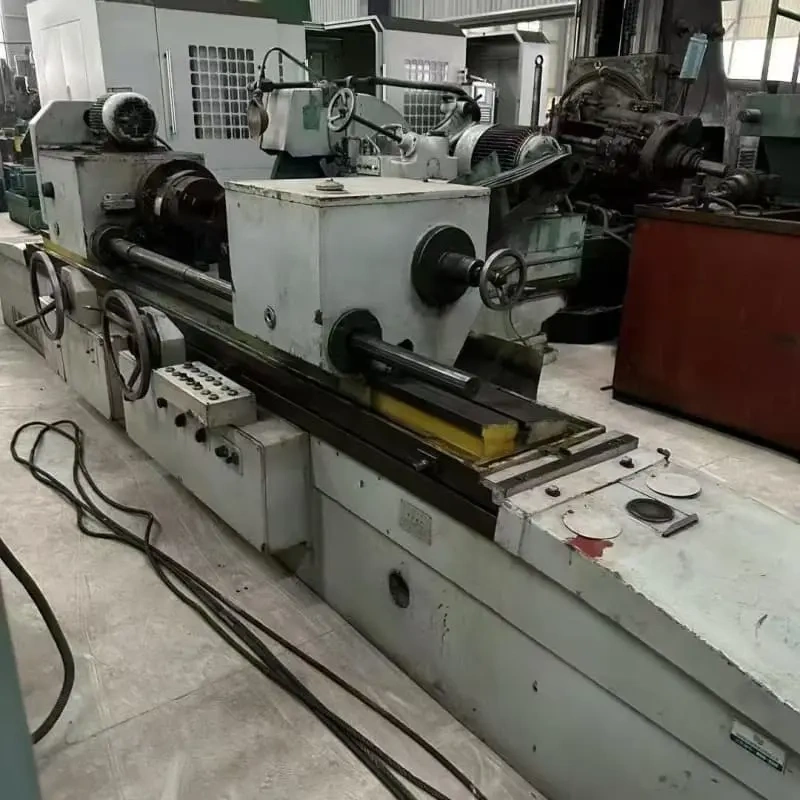

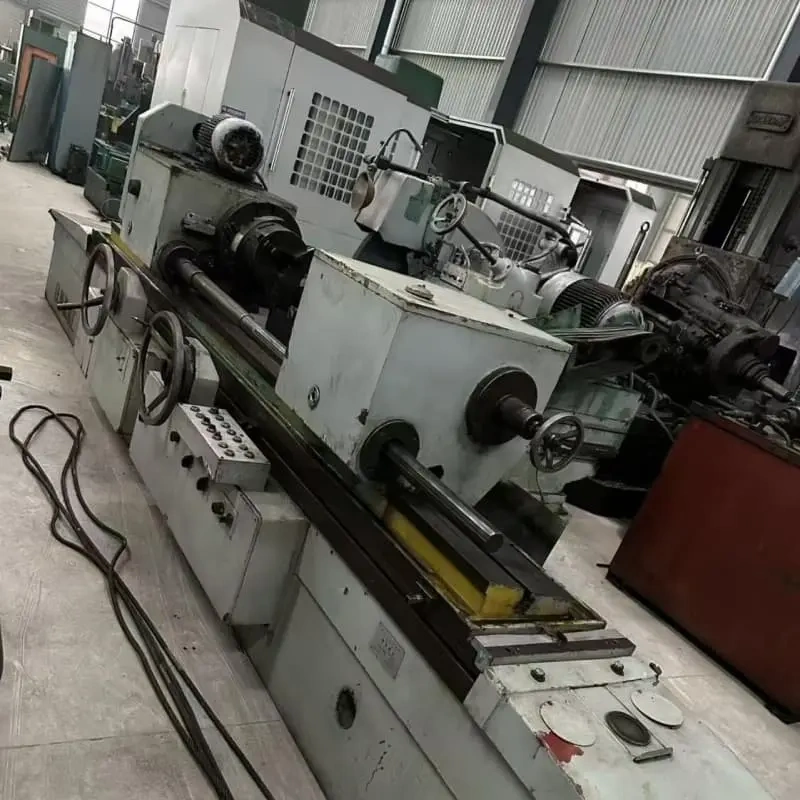

M8260 Used Crankshaft Grinding Machine, 600×2000mm Crankshaft Grinder (Shanghai Brand)
Item Specification
Model M8260 Crankshaft Grinder
Max Swing over Table 600 mm
Max Grinding Length Between Centers 2000 mm
Condition Used, fully tested, good working
| Item | Specification |
|---|---|
| Model | M8260 Crankshaft Grinding Machine |
| Brand | Shanghai Machine Tool Works |
| Max Swing over Table | 600 mm |
| Max Grinding Length Between Centers | 2000 mm |
| Center Height | 300 mm |
| Max Crankpin Throw | 120 mm |
| Grinding Wheel Size | Φ900×32×Φ305 mm |
| Workhead Speed | 25 / 45 / 95 rpm |
| Wheel Spindle Speed | 740 / 890 rpm |
| Total Motor Power | 10.22 kW |
| Max Workpiece Weight | 150 kg |
| Net Weight | 7800 kg |
| Overall Dimension(L×W×H) | 4650 × 2100 × 1630 mm |
| Machine Condition | 85% new |
| Machine Status | Used, fully tested, good working condition |
Advantages
- Shanghai original crankshaft grinder with heavy thick cast iron bed and stable hydraulic feed system.
- Max swing 600mm and 2000mm center distance, suitable for large truck and diesel engine crankshaft reconditioning.
- Designed for grinding crank pins and main journals, stable precision, good roundness and fine surface finish.
- Headstock equipped with friction clutch protection, multi-speed options to fit different crankshaft workpieces.
- Strict inspection before shipment, video inspection and factory on-site visit are available.
- Cost-effective second-hand crankshaft grinder, ready for engine overhaul production.
