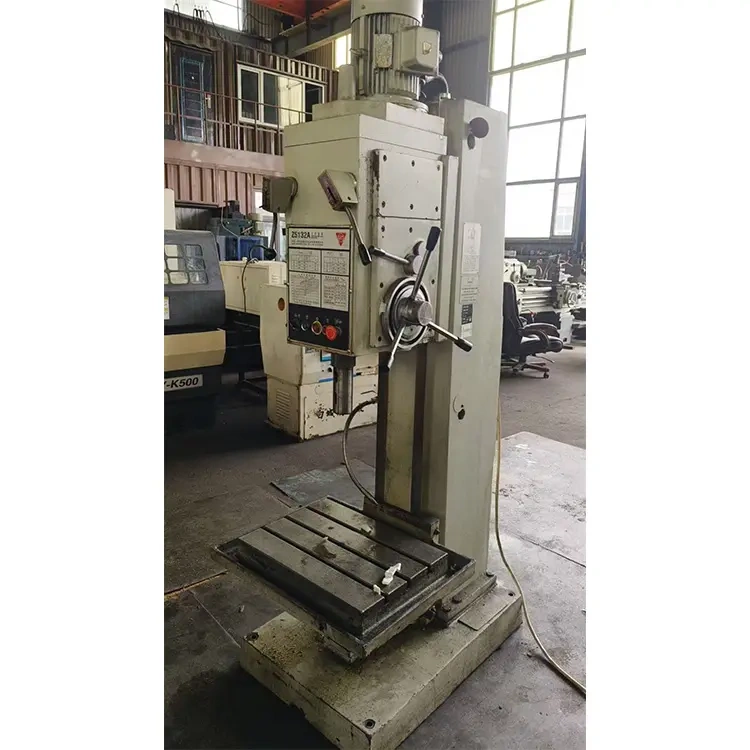

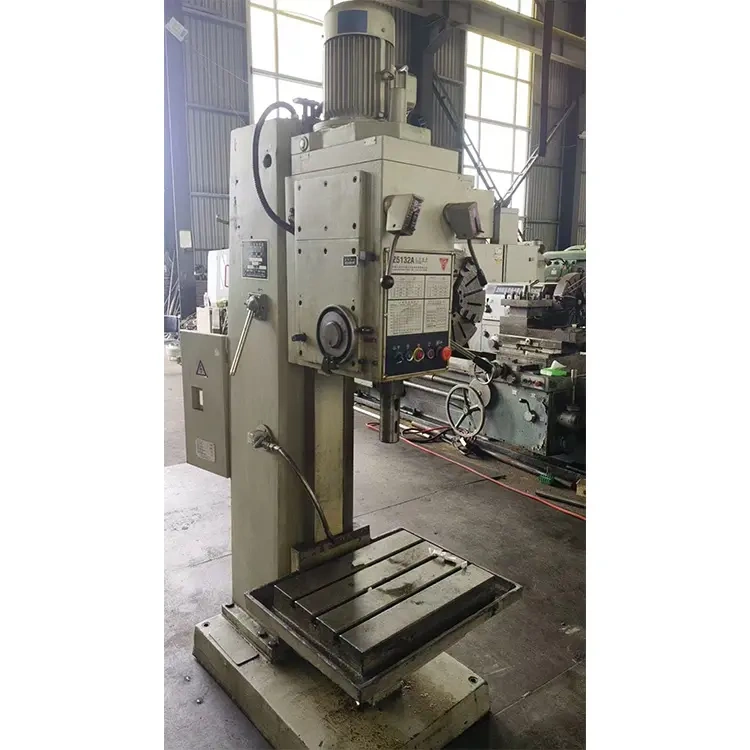

Z5132A Used Square Column Vertical Drilling Machine, Max Drilling 32mm Vertical Drill Press
Item Specification

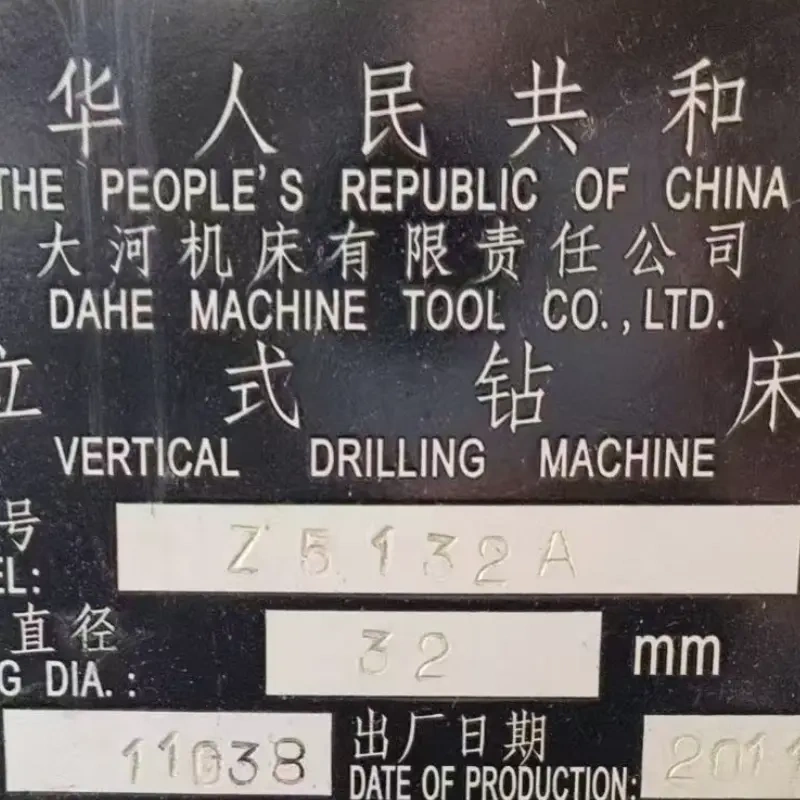

Model Z5132A Vertical Drilling Machine
Max Drilling Diameter 32 mm
Condition Used, fully tested, good working
| Item | Specification |
|---|---|
| Model | Z5132A Square Column Vertical Drilling Machine |
| Max Drilling Capacity | 32 mm |
| Max Spindle Torque | 160 N·m |
| Max Feed Thrust | 9000 N |
| Spindle Taper | MT4 |
| Distance from spindle center to column | 280 mm |
| Spindle Travel | 200 mm |
| Headstock Travel | 200 mm |

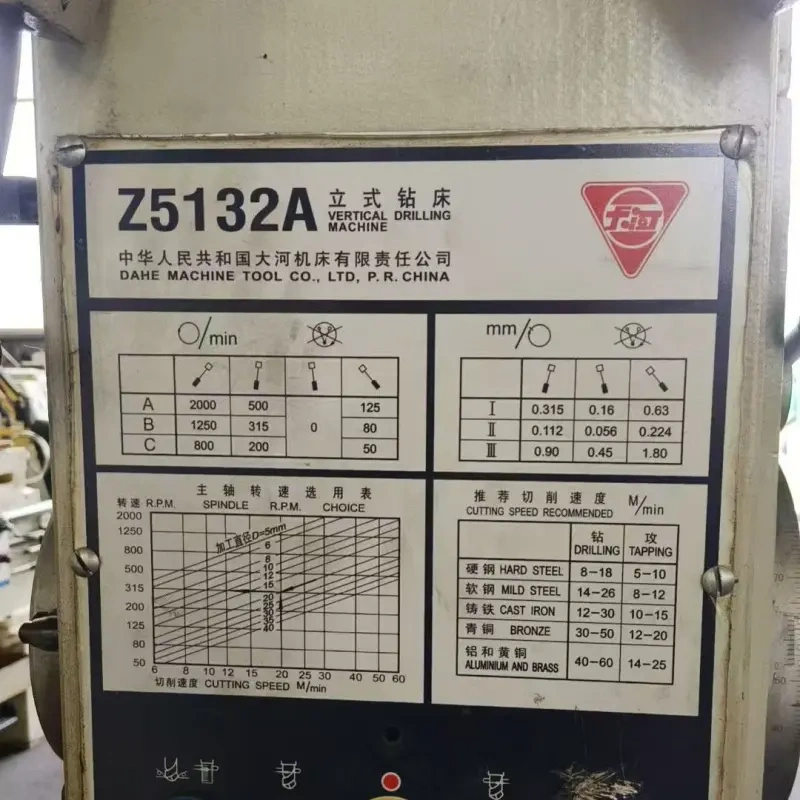

| Spindle Speed Range | 50–2000 rpm, 9 speed steps |
| Spindle Feed Range | 0.056–1.80 mm/r, 9 feed steps |
| Working Table Size | 400 × 550 mm |
| Table Vertical Travel | 310 mm |
| Max distance between spindle nose and table | 710 mm |
| Main Motor Power | 2.2 kW |
| Cooling Pump | 0.09 kW |
| Net Weight | 950 kg |
| Overall Dimension(L×W×H) | 980 × 807 × 2302 mm |
| Machine Condition | 85% new |
| Machine Status | Used, fully tested, good working condition |
Advantages
- Square column gear vertical drill, solid cast iron structure, stable operation and good rigidity.
- 9-speed spindle and 9-stage feed, supports drilling, tapping, reaming, countersinking and boring.
- Concentrated operating handles, convenient speed and feed adjustment, with tapping auto-reverse function.
- Complete coolant circulation system, reduce cutting heat and extend drill bit service life.
- Widely used in machinery workshop, repair shop and small batch metal processing.
- Strict inspection before delivery, support video inspection and factory on-site visit.
