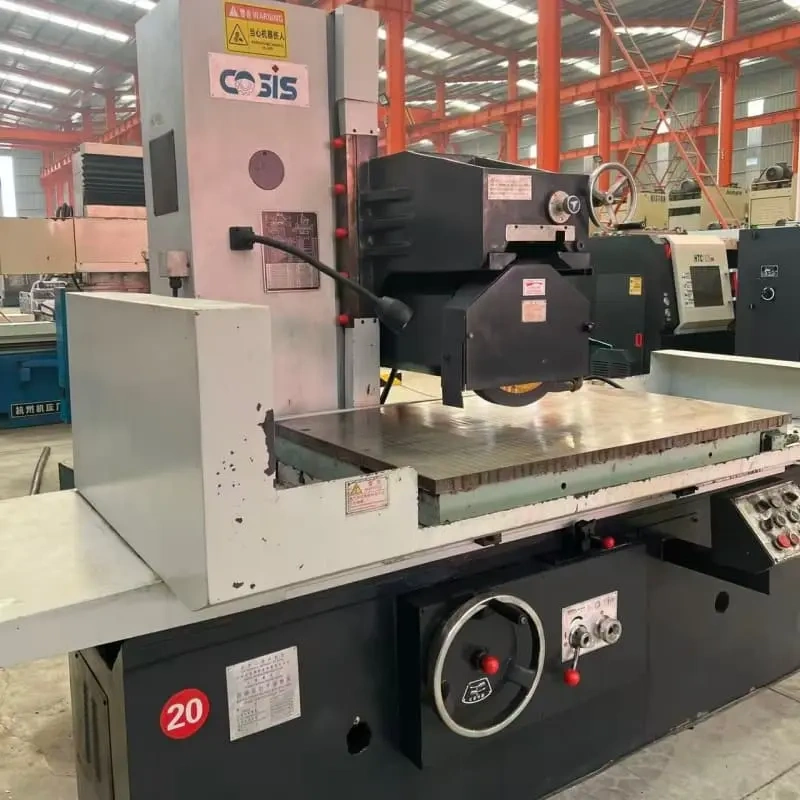

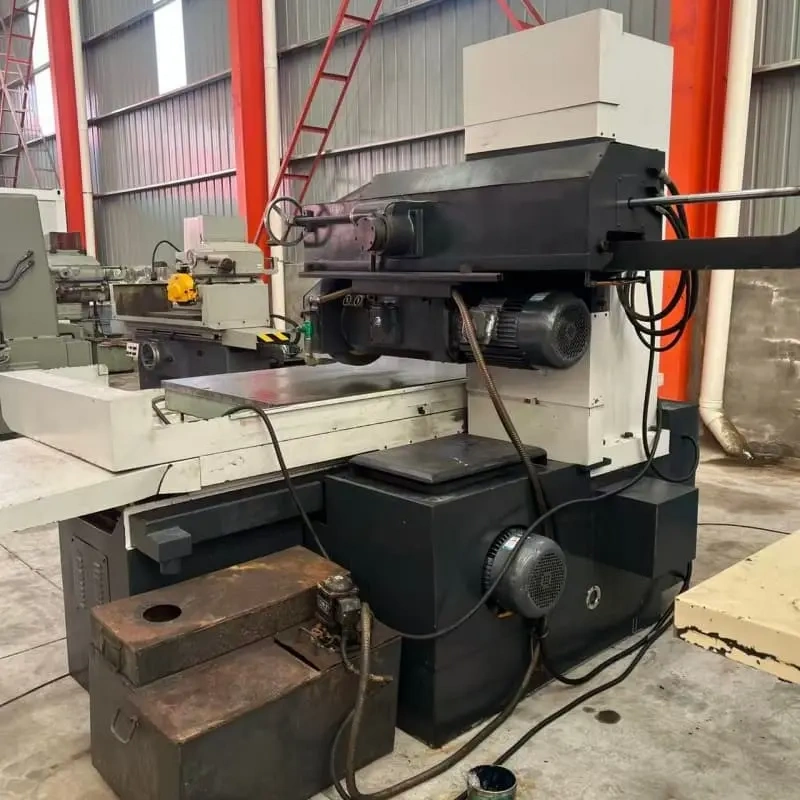

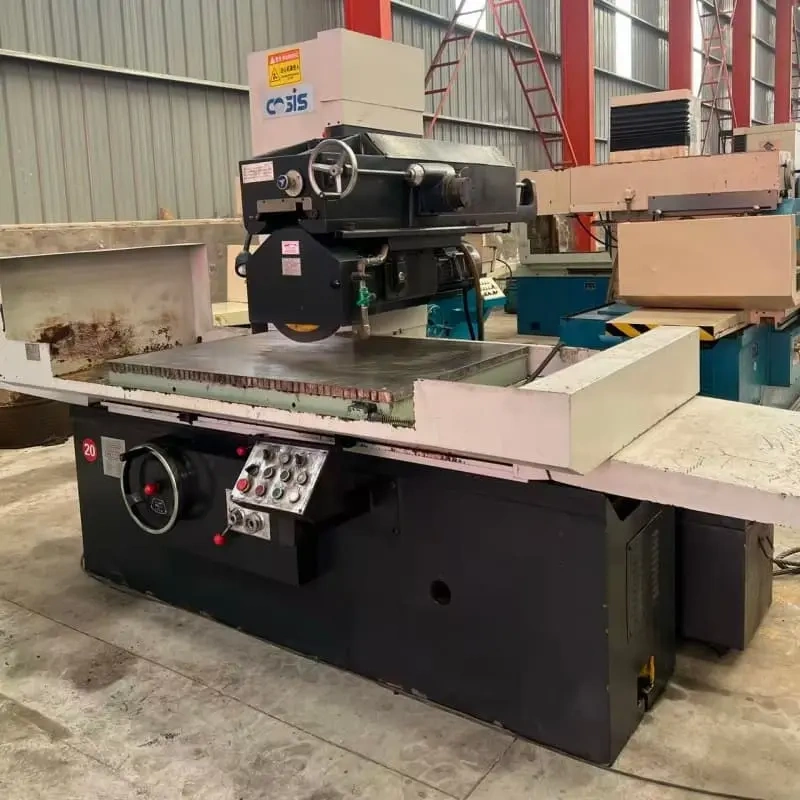

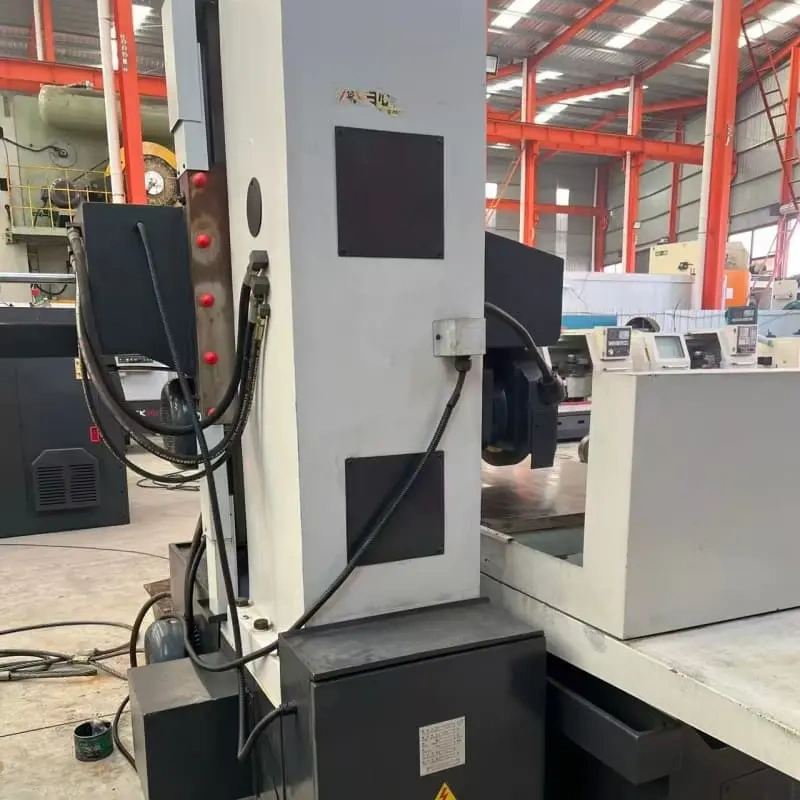

Used YM-7180×12 Horizontal Rectangular Table Surface Grinder, Table Size 800mm × 1250mm

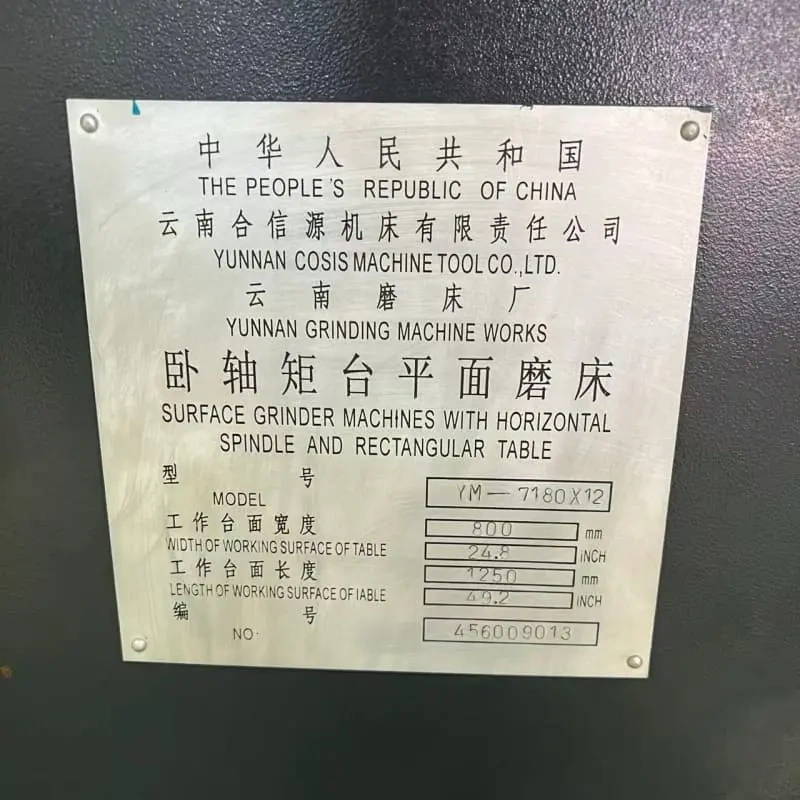

| Model | YM-7180×12 Horizontal Rectangular Table Surface Grinder |
| Table Size | 800mm × 1250mm |
| Net Weight | 9800 kg |
| Condition | 85% New |
| Manufacture Year | 2012 |
| Item | Specification |
|---|---|
| Model | YM-7180×12 Horizontal Rectangular Table Surface Grinder |
| Worktable Size (W×L) | 800 mm × 1250 mm |
| Max Grinding Dimension (W×L×H) | 800×1250×600 mm |
| Max Longitudinal Travel | 1350 mm |
| Worktable Speed | 3~25 m/min, stepless speed |
| Max Load Capacity of Table | 2000 kg |
| Grinding Wheel Size | Φ450 × 63 × Φ203 mm |
| Grinding Wheel Spindle Speed | 1440 r/min |
| Main Motor Power | 15 kw |
| Overall Dimension(L×W×H) | 4400 × 2800 × 2450 mm |
| Net Weight | 9800 kg |
| Condition | 85% New |
| Manufacture Year | 2012 |
| Working Status | Fully inspected & overhauled |
Advantage
- YM-7180×12 horizontal rectangular table surface grinder, heavy-duty hydraulic surface grinding machine for large mold, steel plate, fixture and mechanical parts flat surface processing.
- Table size 800mm × 1250mm, equipped with large electromagnetic chuck, strong clamping force for large ferromagnetic workpieces.
- Super thick cast iron bed and reinforced guideway, ultra-high rigidity, excellent vibration resistance, stable parallelism and fine surface finish.

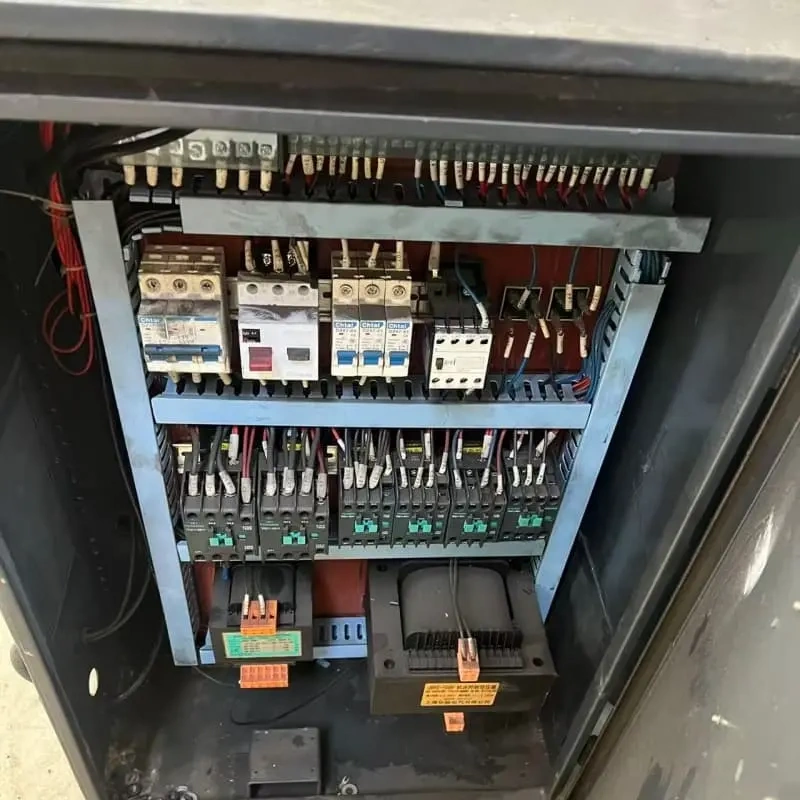

- 85% second-hand heavy surface grinder, manufactured in 2012, fully overhauled, hydraulic system, spindle and electrical components inspected and tested.
- Stepless longitudinal table speed, adjustable transverse feed, suitable for heavy rough grinding and precision finishing of large workpieces.
- Large circulating cooling system, effectively reduces grinding heat, prevents workpiece burning and extends grinding wheel service life.
- Yunnan classic heavy-duty grinder, reliable performance, easy operation, widely used in large mold factory, heavy machinery processing workshop.
